LPI HASL 35um Double Layer PCB 2.0mm FR4 Lead Free Red Solder Mask 8mil
Double Layer 2.0mm FR4 HASL Lead Free Printed Circuit Board with Red Solder Mask
PCB Capacity
| Layers | 1~20+ |
| Board Thickness | 0.1mm-8.0mm |
| Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc |
| Max Panel Size | 600mm×1200mm |
| Min Hole Size | 0.1mm |
| Min Line Width/Space | 3mil(0.075mm) |
| Board Outline Tolerance | 0.10mm |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Out Layer Copper Thickness | 18um--350um |
| Drilling Hole (Mechanical) | 17um--175um |
| Finish Hole (Mechanical) | 0.10mm--6.30mm |
| Diameter Tolerance (Mechanical) | 0.05mm |
| Registration (Mechanical) | 0.075mm |
| Aspect Ratio | 16:01 |
| Solder Mask Type | LPI |
| SMT Mini. Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance Control Tolerance | 10% |
| Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold |
| Soldermask | Green/Yellow/Black/White/Red/Blue |
| Silkscreen | Red/Yellow/Black/White |
| Certificate | UL, ISO 9001, ISO14001, IATF16949 |
| Special Request | Blind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes |
| Material Suppliers | Shengyi, ITEQ, Taiyo, etc. |
| Common Package | Vacuum+Carton |
ABIS Circuits Co., Ltd established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters.
Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security and others.
Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors.Customer satisfaction and support are what we have been strived for.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
| Year | Event |
| 2006 | ABIS Electronics Founded, and Set up the factory in Shenzhen |
| 2008 | Shenzhen Factory Put into Production and Passed the certification of America UL and ISO9001 |
| 2009 | Shenzhen Factory got Canada UL.and Start to make 16 Layers in Volume |
| 2010 | Overseas Sales Department ABIS Circuits Co.,Ltd established |
| 2010 | Acquired the ISO14001 environmental management system certification |
| 2012 | The manufacturing equipment was updated and a batch of cutting-edge manufacturing equipment was imported from Sweden, France, the United States, Germany, and other countries |
| 2015 | We have a investment in our Subcontractor in Jiangxi, No of Employees 1200 with 5000 square meters, the plant monthly product capability reached to 40,000m2 |
| 2016 | The team was refined, and all staff participated in the development training to create a wolf team |
| 2017 | Attend Expo Electronica 2017/ electronica India |
| 2018 | Attend Expo Electronica 2018/Electronica India |
| 2019 | Attend Expo Electronica 2019/ Electronica India |

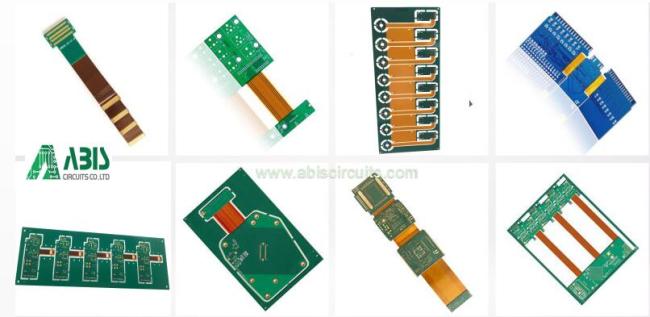

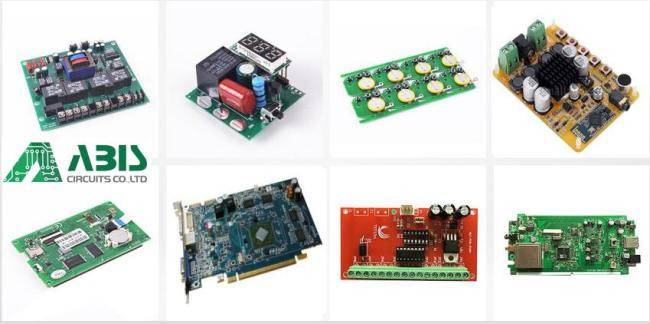

Rigid PCB, Flexible PCB, Rigid-Flex PCB, HDI PCB, PCB Assembly
