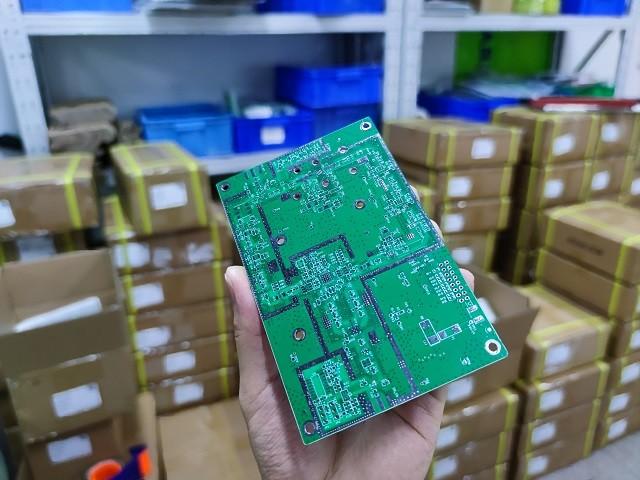

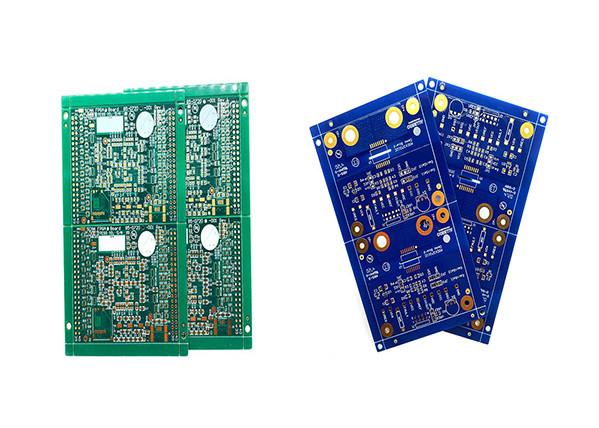

Lead Free HASL Finishing PCB, Double Sided PCBs, fr4 double sided pcb,35um / 35um
Circuit Board Manufactur, Pcb Manufacturers, Double Sided PCBs, Electronic Board
Light Blue 2 Layer Circuit Board PCB PCB Assembly
Abis Circuits Co. Ltd is a great PCB manufacturer that was established in 2006 and is based in Shenzhen (China’s “Silicon Valley”).
Our company has about 1100 workers and two PCB workshops with about 50000 square meters.
Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standards.
5. Quantities range from prototype to medium&big batch production.
Double-sided PCB can also use Rogers Material to make it lighter and more efficient, hot sales in American marketing.
What certificate does ABIS have?
We have ISO14001, ISO9001, UL, cUL, and TS16949.
What capacity does ABIS have?
| Raw material | FR-4, High TG FR-4, PTFE, Aluminum Base, Cu base. Rogers, etc |
| Board Thickness | 0.20mm--8.00mm |
| Layer | 1 Layer-20 Layer |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Min.hole size | 0.1mm (drilling hole) |
| Max. Board size | 1200mm*600mm |
| Out Layer Copper Thickness | 18um--350um |
| Inner Layer Copper Thickness | 17um--175um |
| NPTH Hole Tolerance | +/- 0.075mm |
| PTH hole Tolerance | +/-0.05mm |
| Outline tolerance | +/-0.13mm |
| Surface finished | HASL, ENIG, Chem. Tin, Flash Gold, OSP, Gold finger |
| Solder Mask Type | LPI |
| Others | RFQ. |
What is your Lead Time?
| Category | Q/T Lead time | Standard Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| 20+ Layers | Depends on the specific requirements | |||||
