Deep Groove Ball Bearing 6201 2RS,Single Row Deep Groove Ball Bearing 6201 2RS,China Ball Bearing 6201 2RS
6201 2RS made by Anhui Anheng Bearing Co.,Ltd with guranteed quality rate and very competitive price! From the quality rate ABEC1 Z1V1 to ABEC7 Z4V4,we choose high quality Gcr15 steel,G10 grade balls, our mass production for this item 99 percent can reach to Z3V3 easily.
Why Choose US:
1. We are manufacturer with more than 25 years industry experience,offer you the most competitive price and best quality.
2. Perfect group of technical engineers offer you the best support.
3. Well-trained group of International sales provide you the best service.
4. Smooth, silent and low vibration assure durability with long life.
5. Extensive range of bearing types, price, quality.
6. Our own brand “AHAHB”,OEM customization, customers' logo also available
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors
This Bearing Has Two Rubber Seals (2RS), Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination....
- 6201 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 12mm, Outside Diameter 32mm, Width 10mm. 100% Chrome Steel. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings (-30C to +180C)

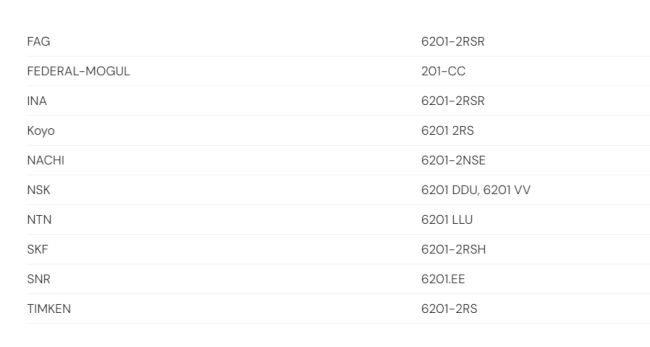

- Interchange to 6201, 6201 RS, 6201 RSR, 6201 2RSR, 6201 RSH, 6201 2RSH, 6201 2RSJEM, 6201 LU, 6201 LLU, 6201 DU, 6201 DDU, 6201 2NSL, 6201 2NSE, 6201 EE
- This bearing has Rubber Seal on both sides, Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination. If your Application Requires a Ball Bearing with One Seal or Opened Without Seals, you can easily remove one or both Seals.
- Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
| Bearing No. | Bore | O.D | Width | Load Rating(KN) | Ball Complement | Maxronout Speed | Weight(kg) | ||||||
| d | D | B | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | in | mm | in | mm | in | Cr | Cor | mm | r/mm | r/mm | |||
| 625 | 5 | 0.1969 | 16 | 0.6299 | 5 | 0.1969 | 1.13 | 0.56 | 8 | 2.381 | 32000 | 40000 | 0.005 |
| 626 | 6 | 0.2362 | 19 | 0.7480 | 6 | 0.2362 | 2.01 | 1.05 | 6 | 3.500 | 28000 | 36000 | 0.008 |
| 627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 2.53 | 1.36 | 7 | 3.969 | 26000 | 34000 | 0.014 |
| 628 | 8 | 0.315 | 24 | 0.9449 | 8 | 0.3150 | 2.57 | 1.36 | 7 | 3.969 | 24000 | 32000 | 0.016 |
| 629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.3150 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 |
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 0.5906 | 35 | 1.3779 | 11 | 0.4331 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 | 0.065 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.110 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.130 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 | 0.200 |
| 6207 | 35 | 1.3779 | 72 | 2.8346 | 17 | 0.6693 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 | 0.290 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 | 0.370 |
| 6209 | 45 | 1.7716 | 85 | 3.3465 | 19 | 0.748 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 | 0.410 |
| 6210 | 50 | 1.965 | 90 | 3.5433 | 20 | 0.7841 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 | 0.460 |
