Hand tools Ball bearing 6204 2RS,Single Row Deep Groove Ball Bearing 6204 2RS,High Quality China Ball Bearing 6204 2RS
Price:
0.1 TO 0.5USD
MOQ:
5000 PCS
Delivery Time:
10 DAYS
Brand:
AHAHB/OEM brand
Product Description
Our 6204 2RS with stable quality and long life using time,most important thing is you can get it in very competitive price!Specially apply for the power tools,with special rubber seals sturcturer.
This Bearing has Two Rubber Seals (2RS), Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination....
- 6204 2RS-LT Deep Groove Ball Bearing dimensions: Bore Diameter 20mm, Outside Diameter 47mm, Width 14mm. 100% Chrome Steel. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings (-40C to +180C)

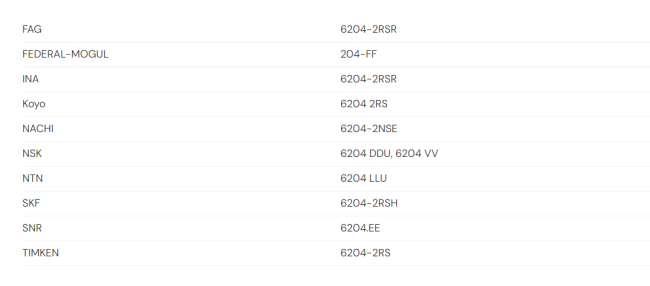

- Interchange to 6204, 6204 RS, 6204 RSR, 6204 2RSR, 6204 RSH, 6204 2RSH, 6204 2RSJEM, 6204 LU, 6204 LLU, 6204 DU, 6204 DDU, 6204 2NSL, 6204 2NSE, 6204 EE
- This bearing has Rubber Seal on both sides, Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination. If your Application Requires a Ball Bearing with One Seal or Opened Without Seals, you can easily remove one or both Seals.
- Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
- Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
| Bearing No. | Bore | O.D | Width | Load Rating(KN) | Ball Complement | Maxronout Speed | Weight(kg) | ||||||
| d | D | B | B | Dynamic | Static | No. | Size | Grease | Oil | ||||
| mm | in | mm | in | mm | in | Cr | Cor | mm | r/mm | r/mm | |||
| 625 | 5 | 0.1969 | 16 | 0.6299 | 5 | 0.1969 | 1.13 | 0.56 | 8 | 2.381 | 32000 | 40000 | 0.005 |
| 626 | 6 | 0.2362 | 19 | 0.7480 | 6 | 0.2362 | 2.01 | 1.05 | 6 | 3.500 | 28000 | 36000 | 0.008 |
| 627 | 7 | 0.2756 | 22 | 0.8661 | 7 | 0.2756 | 2.53 | 1.36 | 7 | 3.969 | 26000 | 34000 | 0.014 |
| 628 | 8 | 0.315 | 24 | 0.9449 | 8 | 0.3150 | 2.57 | 1.36 | 7 | 3.969 | 24000 | 32000 | 0.016 |
| 629 | 9 | 0.3543 | 26 | 1.0236 | 8 | 0.3150 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 |
| 6200 | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 5.10 | 2.39 | 8 | 4.763 | 25000 | 30000 | 0.032 |
| 6201 | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 6.10 | 2.75 | 7 | 5.953 | 22000 | 26000 | 0.037 |
| 6202 | 15 | 0.5906 | 35 | 1.3779 | 11 | 0.4331 | 7.75 | 3.60 | 8 | 5.953 | 19000 | 23000 | 0.045 |
| 6203 | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 9.60 | 4.60 | 8 | 6.747 | 18000 | 21000 | 0.065 |
| 6204 | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 12.80 | 6.65 | 8 | 7.938 | 16000 | 18000 | 0.110 |
| 6205 | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 14.00 | 7.85 | 9 | 7.938 | 13000 | 15000 | 0.130 |
| 6206 | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 19.50 | 11.30 | 9 | 9.525 | 11000 | 13000 | 0.200 |
| 6207 | 35 | 1.3779 | 72 | 2.8346 | 17 | 0.6693 | 25.70 | 15.30 | 9 | 11.112 | 9800 | 11000 | 0.290 |
| 6208 | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 29.10 | 17.80 | 9 | 12.000 | 8700 | 10000 | 0.370 |
| 6209 | 45 | 1.7716 | 85 | 3.3465 | 19 | 0.748 | 32.50 | 20.40 | 10 | 12.000 | 7800 | 9200 | 0.410 |
| 6210 | 50 | 1.965 | 90 | 3.5433 | 20 | 0.7841 | 35.00 | 23.20 | 10 | 12.700 | 7100 | 8300 | 0.460 |
