Deep Groove Ball Bearing R10 2rs,Single Row Deep Groove Ball Bearing R10 2rs,High Quality Inch Size Ball Bearing R10 2rs

Price Negotiable
Price: Negotiable
MOQ: 5000 PCS
Delivery Time: 10 DAYS
Brand: AHAHB/OEM brand
Product Description

R10ZZ/2RS made by Anhui Anheng Bearing Co.,Ltd with guranteed quality rate and very competitive price! From the quality rate ABEC1 Z1V1 to ABEC7 Z4V4





  • R10 2RS Deep Groove Ball Bearing dimensions: Bore Diameter 5/8 in, 0.625 in, 15.875mm; Outside Diameter 1-3/8 in, 1.375 in, 34.925mm; Width 11/32 in, 0.3438 in, 8.73mm. 100% Chrome Steel. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings (-30C to +180C)

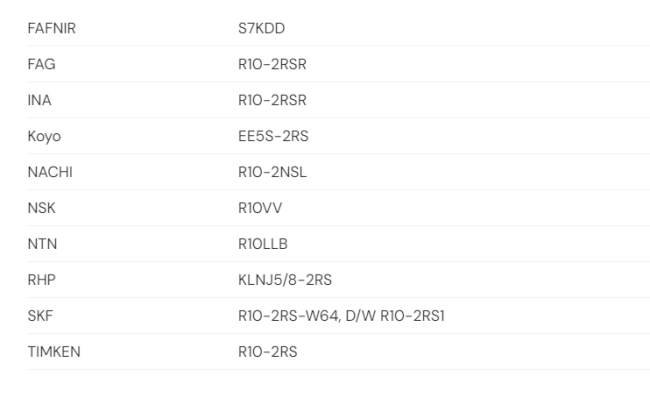

  • Interchange to R10, R10 RS, R10 RSR, R10 2RSR, D/W R10, D/W R10 2RS1, R10 LLU, R10 DDU, R10 EE, KLNJ5/8-2RS
  • This bearing has Rubber Seal on both sides, Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination. If your Application Requires a Ball Bearing with One Seal or Opened Without Seals, you can easily remove one or both Seals.
  • Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

Why Choose US:

1. We are manufacturer with more than 25 years industry experience,offer you the most competitive price and best quality.
2. Perfect group of technical engineers offer you the best support.
3. Well-trained group of International sales provide you the best service.
4. Smooth, silent and low vibration assure durability with long life.
5. Extensive range of bearing types, price, quality.
6. Our own brand “AHAHB”,OEM customization, customers' logo also available
7. Good ability of cost control brings you reasonable price, long-term partner of forwarder brings you low freight
8. Special discount and protection of sales area provide to our distributors

Code Diameter OD Width(open) Width(closed) Assembly chamfer Base-load Weight(kg)
d D B(OPEN) B(CLOSED) r (min) Dynamic load Static load Open Closed
Open Dust-proof Non-contact sealed Contact sealed A groove With snap ring in mm in mm in mm in mm in mm Cr(N) Cr(N) OPEN CLOSED
R2 ZZ 2RZ 2RS     1/8 3.175 3/8 9.52 5/32 3.969 5/32 3.969 0.012 0.305 640 222 0.0014 0.0013
R2A ZZ 2RZ 2RS     1/8 3.175 1/2 12.7 11/64 4.366 11/64 4.366 0.012 0.305 1147 396 0.0032 0.0032
R3 ZZ 2RZ 2RS     3/16 4.763 1/2 12.7 5/32 3.969 0.196 4.978 0.012 0.305 1311 489 0.0023 0.0027
R3A ZZ 2RZ 2RS     3/16 4.763 1/2 12.7 0.196 4.978 0.196 4.978 0.012 0.305 1311 489 0.0027 0.0027
R4 ZZ 2RZ 2RS     1/4 6.35 5/8 15.875 0.196 4.978 9/32 4.978 0.012 0.305 1489 618 0.0045 0.0045
R4A ZZ 2RZ 2RS     1/4 6.35 3/4 19.05 7/32 5.556 9/32 7.144 0.016 0.406 2334 884 0.0077 0.0092
R6 ZZ 2RZ 2RS     3/8 9.525 7/8 22.225 7/32 5.556 5/16 7.144 0.016 0.406 3379 1429 0.0109 0.0118
R8 ZZ 2RZ 2RS     1/2 12.7 1-1/8 28.575 1/4 6.35 11/32 7.938 0.016 0.406 3911 2244 0.0177 0.021
R10 ZZ 2RZ 2RS N NR 5/8 15.875 1-3/8 34.925 9/32 7.144 7/16 8.731 0.031 0.787 4605 2774 0.0306 0.0367
R12 ZZ 2RZ 2RS N NR 3/4 19.05 1-5/8 41.275 5/16 7.938 7/16 11.113 0.031 0.787 7246 4445 0.0472 0.063
R13 ZZ 2RZ 2RS N NR 3/4 19.05 1-3/4 44.45 3/8 9.525 1/2 11.113 0.031 0.787 7490 4785 0.0682 0.092
R14 ZZ 2RZ 2RS N NR 7/8 22.225 1-7/8 47.625 3/8 9.525 1/2 12.7 0.031 0.787 7735 4939 0.0712 0.097
R16 ZZ 2RZ 2RS N NR 1 25.4 2 50.8 3/8 9.525 1/2 12.7 0.031 0.787 8224 5432 0.0848 0.107
R18 ZZ 2RZ 2RS N NR 1-1/8 28.375 2-1/8 53.975 3/8 9.525 1/2 12.7 0.031 0.787 9557 6255 0.0898 0.122
R20 ZZ 2RZ 2RS N NR 1-1/4 31.75 2-1/4 57.15 3/8 9.525 1/2 12.7 0.031 0.787 10758 7513 0.0948 0.125
R22 ZZ 2RZ 2RS N NR 1-3/8 34.925 2-1/2 76.2 7/16 11.113 9/16 14.288 0.031 0.787 12251 8490 0.1052 0.1388
R24 ZZ 2RZ 2RS N NR 1-1/2 38.1 2-5/8 66.675 7/16 11.113 9/16 14.288 0.031 0.787 12918 9264 0.1402 0.1848

Code Diameter OD Width(open) Width(closed) Base-load Weight
d D B(OPEN) r (min) Dynamic load Static load (kg)
Open Dust-proof Non-contact sealed Contact sealed A groove With snap ring in mm in mm in mm in mm Cr(N) Cr(N)
1605 ZZ 2RZ 2RS N NR 5/16 7.938 29/32 23.019 5/16 7.938 0.012 0.305 3300 1410 .018
1606 ZZ 2RZ 2RS N NR 3/8 9.525 29/32 23.019 5/16 7.938 0.012 0.305 3300 1410 .016
1607 ZZ 2RZ 2RS N NR 7/16 11.113 29/32 23.019 5/16 7.938 0.016 0.406 3560 1950 .016
1614 ZZ 2RZ 2RS N NR 3/8 9.525 1-1/8 28.575 3/8 9.525 0.025 0.635 3920 2250 .035
1615 ZZ 2RZ 2RS N NR 7/16 11.113 1-1/8 28.575 3/8 9.525 0.025 0.635 3920 2250 .034
1616 ZZ 2RZ 2RS N NR 1/2 12.7 1-1/8 28.575 3/8 9.525 0.025 0.635 3920 2250 .03
1620 ZZ 2RZ 2RS N NR 7/16 11.113 1-3/8 34.925 7/16 11.113 0.025 0.635 5900 3500 .05
1621 ZZ 2RZ 2RS N NR 1/2 12.7 1-3/8 34.925 7/16 11.113 0.025 0.635 5900 3500 .048
1622 ZZ 2RZ 2RS N NR 9/16 14.288 1-3/8 34.925 7/16 11.113 0.025 0.635 5900 3500 .046
1623 ZZ 2RZ 2RS N NR 5/8 15.875 1-3/8 34.925 7/16 11.113 0.025 0.635 5900 3500 .04
1628 ZZ 2RZ 2RS N NR 5/8 15.875 1-5/8 41.275 1/2 12.7 0.025 0.635 7250 4450 .072
1630 ZZ 2RZ 2RS N NR 3/4 19.05 1-5/8 41.275 1/2 12.7 0.025 0.635 7250 4450 .065
1633 ZZ 2RZ 2RS N NR 5/8 15.875 1-3/4 44.45 1/2 12.7 0.025 0.635 7250 4450 .092
1635 ZZ 2RZ 2RS N NR 3/4 19.05 1-3/4 44.45 1/2 12.7 0.035 0.889 7250 4450 .085
1638 ZZ 2RZ 2RS N NR 3/4 19.05 2 50.8 9/16 14.288 0.035 0.889 10800 6950 .12
1640 ZZ 2RZ 2RS N NR 7/8 22.225 2 50.8 9/16 14.288 0.035 0.889 10800 6950 .112
1641 ZZ 2RZ 2RS N NR 1 25.4 2 50.8 9/16 14.288 0.035 0.889 10800 6950 .1
1652 ZZ 2RZ 2RS N NR 1-1/8 28.575 2-1/2 63.5 5/8 15.875 0.035 0.889 12800 8400 .21
1654 ZZ 2RZ 2RS N NR 1-1/4 31.75 2-1/2 63.5 5/8 15.875 0.035 0.889 12800 8400
