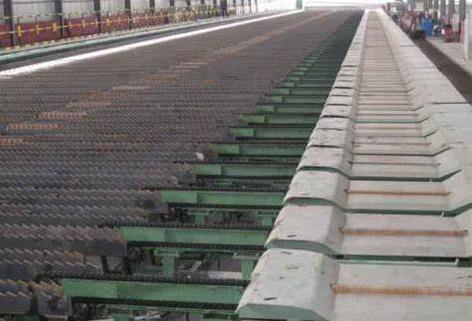

50 Tons TMT Steel Hot Rolling Mill Cooling Bed
Fully automatic TMT steel production line hot rolling mill cooling bed
The cooling bed equipment is mainly used for slow and natural on-line cooling of steel plate after rolling.In the profile production line, the cooling bed also has the function of pre-bending, to prevent the profile in the natural cooling process due to different quality caused by irregular bending.
The rolled products are transported into the cooling bed through the roller table, and then the workpiece arranged on the cooling bed is gradually moved to the top of the cooling bed in the form of rack stepping type tooth pulling, so as to achieve the cooling effect of the workpiece.
| Cooling bed size(m) | |
| 1. | 120*10 |
| 2. | 120*12.5 |
| 3. | 120*13.5 |
| 4. | 120*38.5 |
| 5. | 100*12.5 |
| 6. | 72*14 |
| 7. | 66*7.5 |
Comparison of main structure and dimension parameters of cooling beds
|
Cooling bed (for small bar) |
Cooling bed (for medium-sized bar) |
Electric stepping cooling bed (for big bar) |
Hydraulic stepping cooling bed (for big bar) |
U/V cooling bed (for big bar) |
|
| Main type | Pomini |
Before saw: Pomini; After saw: Danieli |
Danieli | Danieli | Danieli |
| Bar specification | Ø10-50mm | Ø50-120mm | Ø70-350mm | Ø70-350mm | Ø50-250mm |
| Drive way | Motor | Motor | Motor | Motor | Motor |
| Transmission | Electric wheel | Electric wheel | Electric wheel | Moving beam | Electric wheel, four-bar linkage |
| Feeding way | Feed apron | Feed apron | After marshalling, sawing and row input, hydraulic steel pusher to achieve single feeding | After marshalling, sawing and row input, hydraulic steel pusher to achieve single feeding | After marshalling, sawing and row input, hydraulic steel pusher to achieve single feeding |
| Tapping way | Tapping by lift after marshalling | Tapping by lift after marshalling | One by one | One by one | One by one |
Please kindly send your specific request, we would give you a quotation plan.
1.What annual output do you require?
2.What is the main size range of rebar?
3.How long is the billet?
4.What is the fuel for the furnace?
5.How long does the machine work continuously?
And anything else you think necessary.
Selling Units: Single item
Single package size: 150*100*170cm
Single gross weight: 100,000kg
Package Type: Safety Seaworthy Package
Lead Time:
| Quantity (Tons) | 1-100 | >100 |
| Est. Time(Days) | 60 | To be negotiated |
