CATL 3.2V 314ah CBC00 LiFePO4 Lithium Cbattery Cell For 15kwh
Price:
negotiable
MOQ:
4
Delivery Time:
15 days
Brand:
CATL
Product Description
CATL 3.2V 314ah CBC00 LiFePO4 lithium cbattery cell for 15kwh
|
Typical capacity
|
314 Ah
|
|
Typical Energy
|
1004.8 Wh
|
|
Operating voltage
|
Cell temperature T>0°C 2.5~3.65V
T≤0°C 2.0~3.65V
|
|
Impedance (1KHz)
|
0.18±0.05mΩ
|
|
Shipping capacity
|
96±1Ah
|
|
Residual capacity loss
|
Per month ≤3.5%, First Month
Per month ≤3.0%, After First Month
|
|
Operating temperature (charging)
|
0~60°C
|
|
Operating temperature (discharge)
|
-20~60°C
|
|
Cell Weight
|
5.49±0.3Kg
|
|
Storage Temp
|
-35~60°C
|

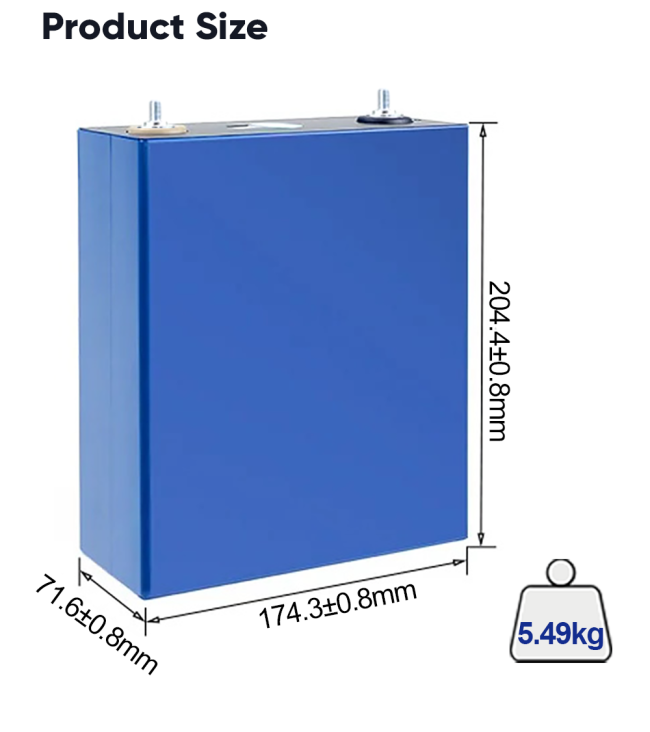

| size | 174*72*205mm |
|
Rest SOC
|
≥8%
|
|
Cycle performance
|
7000 Cycles@70%SOH
|
|
Standard charge Power
|
0.5P |
| Max constant charge power | 0.5P |
|
Standard discharge power
|
0.5P |
| Max constant discharge power | 0.5P |
| Net Weight | 5.49±0.3Kg |
The temperature is maintained at 25± 2°C, cycle test by the standard charge and discharge method under 300±20Kgf
preload, Fading to 70% of standard capacity
