10000 Times Cycle Life EVE Factory 3.2V Lifepo4 MB56 628AH For ESS Home Energy Storage System
EVE MB56 628Ah LiFePO₄ Prismatic Cell
High-Capacity, Grade A Cell for Energy Storage & Industrial Power
Overview
The EVE MB56 628Ah 3.2V LiFePO₄ cell is one of the latest-generation high-capacity lithium iron phosphate prismatic cells designed for large-scale energy storage systems, commercial-grade battery packs, and off-grid power applications. With Grade A quality, direct factory sourcing, and massive 628Ah capacity, it’s an ideal choice for building high-efficiency, long-lifespan battery systems.
Backed by EVE’s advanced manufacturing, this cell ensures consistent performance, high safety, and a cycle life exceeding 6000+ cycles under standard conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MB56 / LF560K |
| Brand | EVE Energy Co., Ltd. |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 628Ah |
| Energy | ≈ 2009.6Wh (2.01kWh) |
| Standard Charge | 0.5C (314A) |
| Standard Discharge | 0.5C (314A) |
| Max Charge Current | 1C (628A) |
| Max Discharge Current | 1C (628A) |
| Cycle Life | ≥6000 cycles @ 80% DOD |
| IR (Initial) | ≤ 0.2 mΩ |
| Weight | 11.5 ± 0.3 kg |
| Dimensions (LWH) | 352.3mm × 71.7mm × 207.2mm (with terminal) |
| Operating Temp | -20°C to 60°C |
| Storage Temp | -10°C to 45°C (recommended) |
| Cell Type | Prismatic |
| Grade | A+ |
Recommended Applications
-
Residential Energy Storage Systems (ESS)
-
Off-grid Solar Power Storage
-
Commercial & Industrial Backup Power
-
UPS Systems
-
EV Battery Packs & Buses
-
DIY Powerwalls & Custom Battery Banks
-
Marine & RV Battery Systems
Why Choose EVE 628Ah Cells?
Factory-direct, no middleman
Higher energy density, fewer cells per pack
More stable performance over long service life
Compatible with most mainstream BMS and energy storage platforms
Low internal resistance, high discharge efficiency

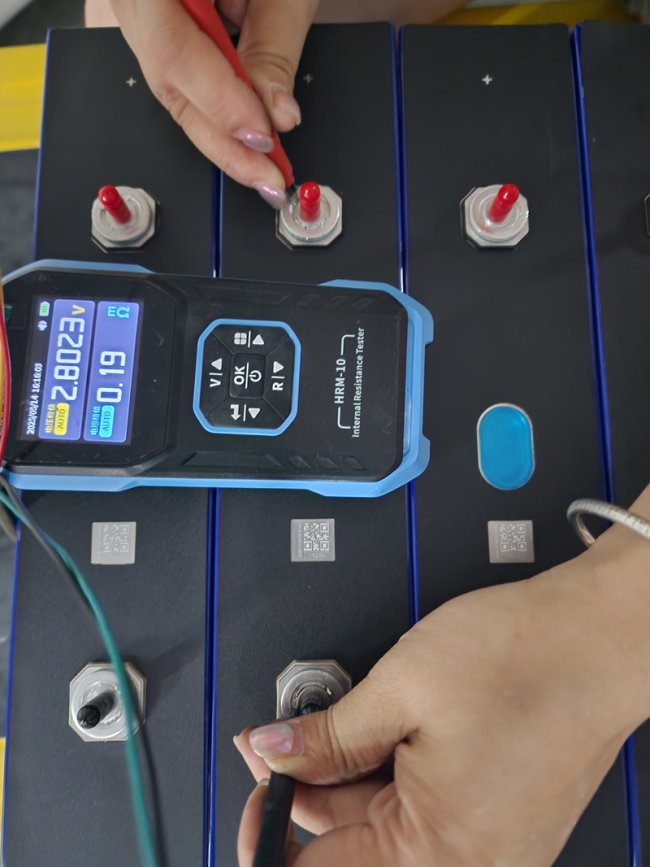

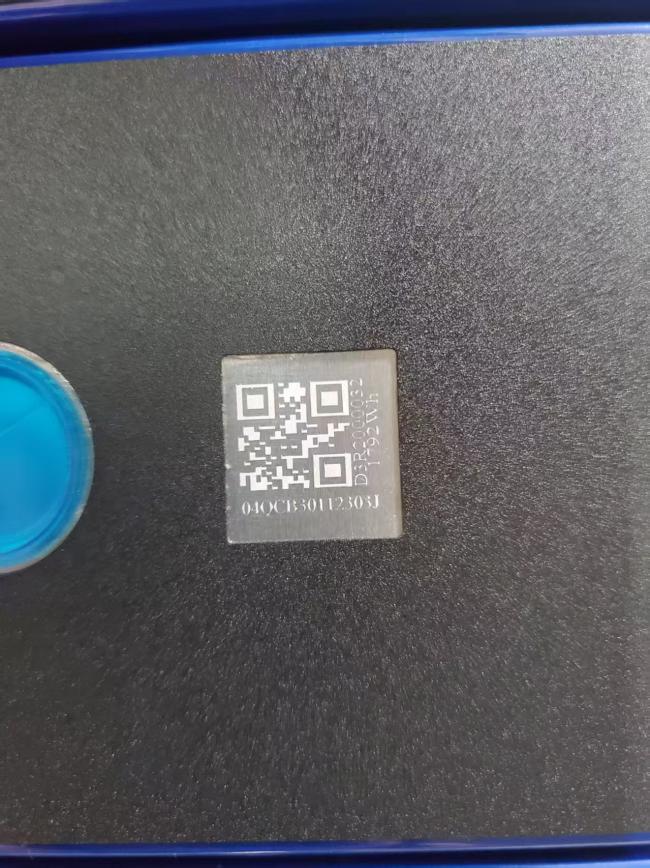

Certified & tested, includes test report + QR tracking
Logistics & Availability
-
In-stock in China warehouse
-

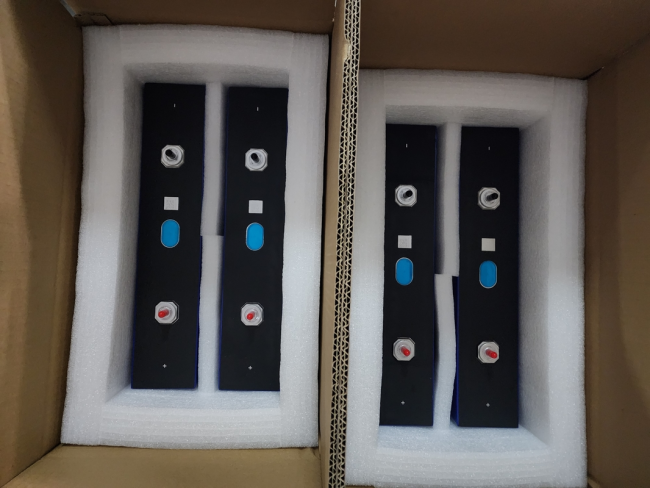

Safe packaging: UN3480-compliant for international shipping
-
Flexible shipping via air, sea, or rail
-
MOQ: Negotiable – ideal for OEMs, integrators, and wholesalers
