Deep Cycle Lishen 202Ah 3.2V LiFePO4 Battery Cell High Safety China Fast Delivery
Price:
negotiable
MOQ:
4
Delivery Time:
15days
Brand:
Lishen
Product Description
Lishen 202Ah 3.2V LiFePO4 Battery Cell | Original Grade A, 8000+ Cycles, China Shipping
Product Overview
Lishen 202Ah 3.2V LiFePO4 battery cell (Model: LP54173207-202Ah) is a high-capacity, long-cycle prismatic lithium iron phosphate cell designed for solar energy storage systems, home ESS, RV, marine, UPS, telecom base stations, electric vehicles, and industrial energy storage. Built with Lishen’s original Grade A lithium iron phosphate chemistry, it delivers stable discharge, ultra-low self-discharge, and excellent safety performance. Shipped directly from China with fast lead time and competitive factory price, ideal for system integrators, distributors, and energy solution providers worldwide.
Key Specifications
| Item | Parameter |
|---|---|
| Brand | Lishen (Original) |
| Model | LP54173207-202Ah |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 202Ah (646.4Wh) |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charge/Discharge Current | 0.5C (101A) |
| Max. Charge/Discharge Current | 1C (202A) |
| Cycle Life | ≥6000 cycles @ 0.5C, DOD 80%, 25℃, 70% EOL |
| Internal Resistance | ≤0.2mΩ |

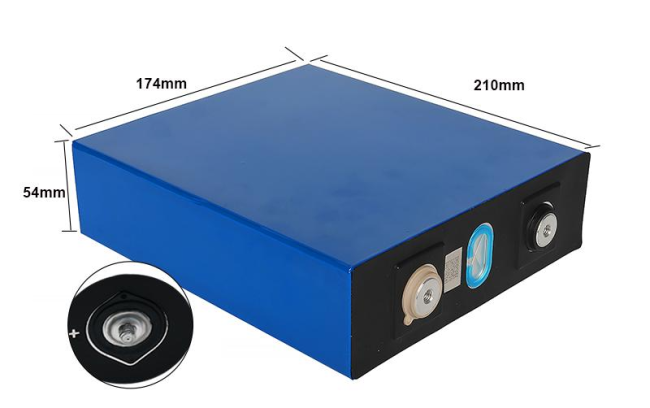

| Dimensions (TWH) | 54mm * 173mm * 207mm |
| Weight | Approx. 4.0kg |
| Self-Discharge Rate | ≤3% per month |
| Operating Temperature | Charge: 0~45℃; Discharge: -20~60℃ |
| Storage Temperature | -40~60℃ |
| Certifications | CE, UN38.3, MSDS, IEC62619 |
Core Advantages
1. Original Grade A Cell, Stable & Consistent
- 100% original Lishen cell with QR code traceability, no B-grade, no refurbished, no second-hand.
- Strict consistency control: capacity deviation ≤2%, voltage difference ≤10mV, internal resistance difference ≤0.05mΩ.
- Flat discharge platform, no voltage collapse, suitable for high-power series/parallel battery systems.
2. Long Cycle Life, Lower LCOS
- ≥6000 deep cycles at 80% DOD, 3–4 times longer than lead-acid batteries.
- Full life cycle cost (LCOS) reduced by 25%+ compared to conventional lithium cells.
- Perfect for 8–10 year design life energy storage projects.
3. Excellent Safety Performance
- LiFePO4 chemistry with high thermal stability, no thermal runaway, no fire, no explosion.
- Passes nail penetration, crush, overcharge, short-circuit, and high-temperature tests.
- High-temperature resistant aluminum casing, built-in overcharge/over-discharge/over-current protection.
4. High Energy Density & Low Self-Discharge
- Volume energy density >380Wh/L, stable output for long-term use.
- Self-discharge <3% per month, suitable for long-term standby and off-grid systems.
- High discharge efficiency: ≥95% energy efficiency at rated current.
5. Wide Temperature Adaptability
- Discharge normally at -20℃, capacity retention >80%.
- Stable operation up to 60℃, suitable for desert, high-altitude, and extreme environments.
- Compatible with active/passive thermal management systems for better performance in cold climates.
6. China Stock & Fast Shipping
- In stock in China warehouse, fast shipping worldwide
- Support sea, air, and express shipping, compliant with UN38.3 dangerous goods transport regulations.
- Competitive factory direct price, better margin for distributors and system integrators.
![]()
![]()
![]()
