High Efficiency 51.2V 48V 628Ah Rechargeable Residential Energy Storage Lithium Battery Pack 32kWh
51.2V 628Ah Lithium Battery Pack with 32kWh capacity for solar energy systems. Pre-assembled ESS battery packs using premium EVE 628Ah battery cells.
- 32kWh LFP Battery Pack - Massive energy storage for extended power supply
- 51.2V 628Ah - Uses EVE MB56 628AH battery cells
- 6-wheel base - Safe and easy movement & placement
- JK-PB16S2A30P BMS - 300A with 2A built-in active balancing

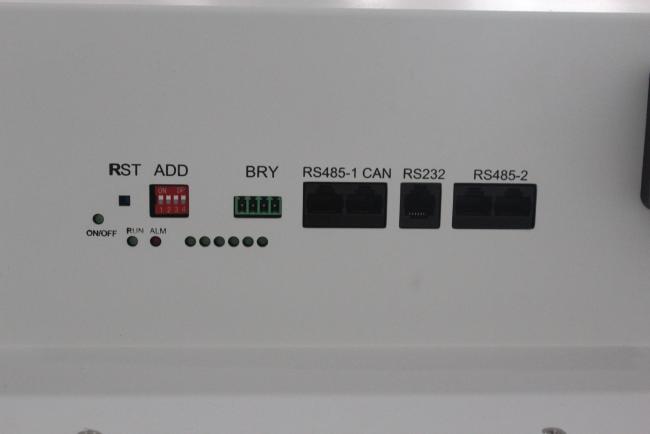

- RS485 & CAN communication - Compatible with various inverters
| Battery System | 51.2V 628AH battery pack (with EVE mb56 628ah battery cells) |
| Battery Cells | EVE mb56 628ah |
| Nominal Voltage | 51.2V |
| Series and Parallel Connection | 16S 1P |
| BMS | JK-PB2A16S-30P |

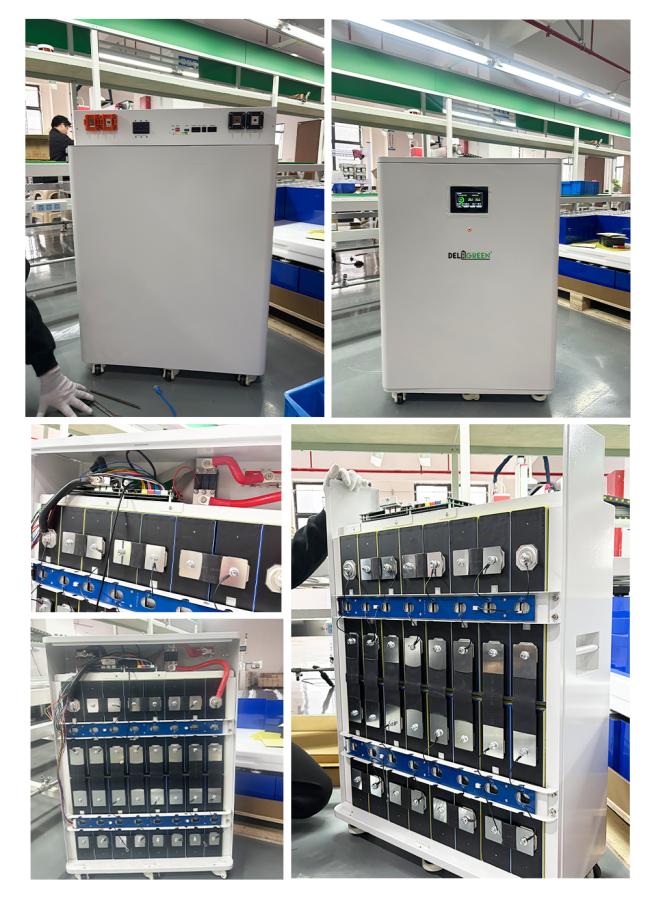

| Size | L:395mm; W:695mm; H:890mm |
| Weight | 245 kg |
| Warranty | 10 years |
| Communication | CANBUS/RS485 |
| Rated Power | 32Kwh |






Double the Capacity, Half the Complexity
Eliminate the hassle of managing multiple battery units. Our 51.2V 628Ah battery pack delivers a full 32kWh of energy in a single, integrated system—twice the capacity of standard 16kWh (314Ah) units. This unified approach reduces complex parallel connections, minimizing potential failure points and simplifying your entire energy storage setup.
At the core of this high-performance system is the EVE MB56 628Ah Grade A LiFePO4 cell. This premium cell delivers maximum energy density and exceptional longevity. By using fewer cells to achieve higher capacity compared to parallel configurations, we ensure enhanced system reliability and operational efficiency.
Parallel connections often introduce risks including imbalanced charging/discharging, communication conflicts, and potential single-point failures. Our unified 32kWh design guarantees balanced performance, synchronized management through a single robust BMS, and inherently safer operation.
Planning to expand solar panel capacity or increase energy consumption? The 32kWh capacity provides substantial headroom for growth. This represents a smart, one-time investment for large households or those requiring significant backup power, eliminating the incremental costs and complications of adding parallel units later.
