29.2V 30A Aluminum Battery Charger For Lithium Ion Battery
Price:
Negotiable
MOQ:
1
Delivery Time:
15 working days
Brand:
Deligreencs
Product Description

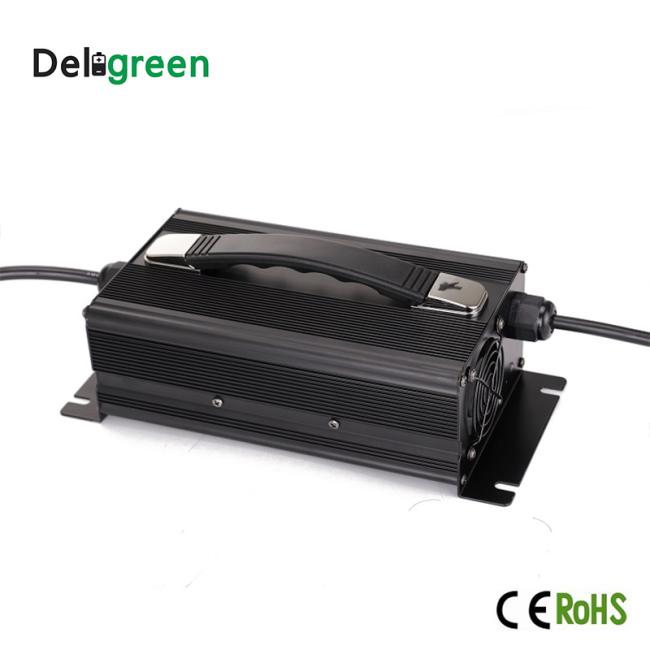

Aluminum Battery Charger 29.2V 30A Fast Car Charger For Lithium Ion Battery
This is a charger for lithium phosphate battery,NCM battery.PRODUCT PARAMETER:: 29.2V/30A
Specification
| Input voltage | |
| Nominal Voltage | 220Vac |
| Variation Range | 200-240Vac |
| Input Frequency | |
| Nominal Frequency | 50/60Hz |
| Variation Frequency | 47-63Hz |
| Max Input Current | 15Arms max At any input voltage and rated, DC output rated load |
| Inrush Current | 50Amps Max. Cold start at 220Vac input, with rated load and 25℃ambient |
| OUTPUT CHARACTERISTICS | |
| Voltage | 29.2V |
| Charging Current | 30A |
| Turn Lamp Current | 2A |
| Output Power | 876W |
| Combined Load/Line Regulation | |
| Voltage | 29.4V |
| Max.Charge Voltage | 29.4V |
| Line Regulation | ±1% |
| Load Regulation | ±5% |
| Efficiency | 90%Min.At 220Vac input and output Max. Load |
| PROTECTION REQUIREMENT | |
| Short Circuit Protection | The power supply will be auto recovered when short circuit faults remove |
| Over current Protection | The power supply will be auto recovered when over current faults remove |
| Over Voltage Protection | The power supply will not be auto recovered when faults remove |
| ENVIRONMENTAL REQUIREMET | |
| Operating Temperature | -20℃~ +45℃ |
| Storage Temperature | -20℃ ~ +85℃, With package |
| SAFETY AND EMC REQUIREMENT | EN60950 |
| size | L 220*W 120*H 70mm |
| Weight | 2.1KG |
Advantages:
1. AC input range selectable by switch.
2. Cooling by built-in DC fan, Ultra-silence without fan, Waterproof for option.
3. LED indicator for charging status.
3. Multi-protection:short circuit,Over load,Over /Under voltage, Over current, Over temperature,Reverse poloarity,Automatic
shutdown,Timing,Discharging.
4. 3-stage charging mode: CC, CV and float/trickle(or Cut off) .
5. Long lifetime: In the MTBF test, it makes more than 30,000 POH(power on hours) ,which means about 10 years if it work 8 hours every day.
2. Cooling by built-in DC fan, Ultra-silence without fan, Waterproof for option.
3. LED indicator for charging status.
3. Multi-protection:short circuit,Over load,Over /Under voltage, Over current, Over temperature,Reverse poloarity,Automatic
shutdown,Timing,Discharging.
4. 3-stage charging mode: CC, CV and float/trickle(or Cut off) .
5. Long lifetime: In the MTBF test, it makes more than 30,000 POH(power on hours) ,which means about 10 years if it work 8 hours every day.
Before you buying a battery charger,you should know what plug type is.Tell us your plug,we will send you the correct charger.

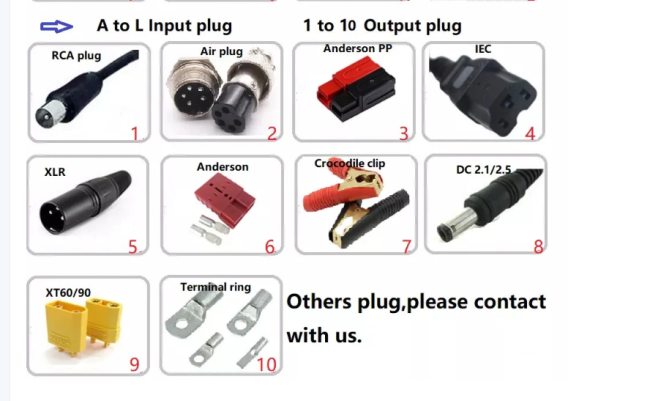

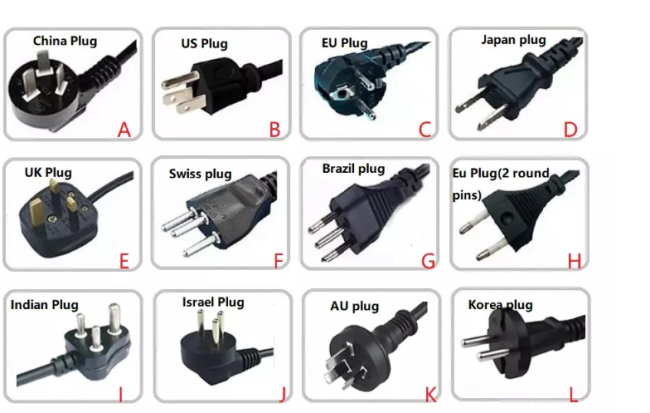

These are AC connector
Input plug and output plug
