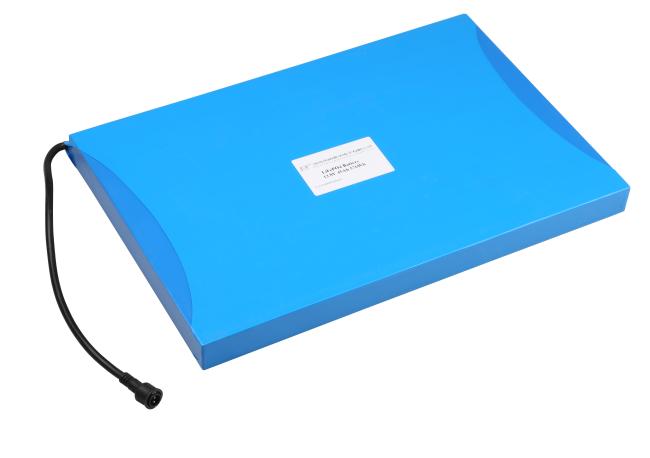

4S10P Prismatic 12.8V 45AH 12v 18650 Battery Pack
4S10P Prismatic Lithium lifeopo4 Battery pVC Pack 12.8V 45AH
Know about lithium battery
- Lithium battery is a type of battery that uses lithium metal or lithium alloy as the positive/negative electrode material and uses a non-aqueous electrolyte solution.
-
Lithium batteries can be roughly divided into two categories: lithium metal batteries and lithium ion batteries. Lithium-ion batteries do not contain metallic lithium and are rechargeable.
Lithium battery pack,why Deligreen?
Lithium battery pack is a system of lithium batteries,containg lithium battery,BMS,outer box.Battery pack is widely used in many applications,such as RV,caravan,solar system,camping,energy storage system,Led street lamp,golf cart,marine,boat,e-car,motorcycle etc.
Battery pack needs to be customized,before placing the order,we need some important parameter.ex.
- Battery pack application
- Battery cell:LFP or NCM,it determins the price,size,spec etc.Refering to this PVC battery pack,32700,18650,26650 battery is all available.
- Nominal current and voltage
- Max continous dischaege
- Battery pack size
- Outer box material:plastic,Irion,epoxy board
This is the requirement/customized sheet for you to fill in to get a most precise price.
| Questions | Answer | |
| Customer Name | ||
| Product Application | ||
| Battery cell requirement | ||
| Nominal voltage and capacity | ||
| Cut-off charge voltage | ||
| Charge current | ||
| Max continouns Discharge | ||
| Peak current time | ||
| BMS dimension | ||
| Battery pack dimensions(mm) | ||
| Outer box requirement | ||
| Communication protocol | ||
| Coding requirement | ||
| Label requirement | ||
| Other requirements |
Deligreen supplies any kind of customized battery pack,We have BMS version and without BMS version for option.It's up to you.Deligreen's professionality will help you find what you are looking for.
Lead acid battery VS Lithium battery
| Battery type | LifePO4 battery | Lead acid battery |
| Nominal voltage | 3.2V | 2V |
| Energy density | 180Wh/kg | 30WH/KG |
| Weight | Light | heavy |
| CBM | Small | big |
| Safty rate | High | low |
| Cycles | 3500 | 500 |
| Memory | NO | YES |
| Environmental protection | Environmental protection and pollution-free | pollution |
Lead acid battery is an old generation battery,widely used in many applications,such as e-motorcycle,scooter,e-bike etc.
With the battery technology improved,lithium battery has been used more due to its high capacity,lighter weight and smaller size.
Lithium battery pack is with more than 2000 cycles life,lead acid battery is only with around 500 cycles,you need to buy 3-4 lead acid battery that as long life as lithium battery.
Lead acid battry is much bigger and heavier than lithium battery,lithium battery pack is used in more applications.
3.2v 1500mah 18650 lithium phosphate LIFEOPO4 battery Parameter
| Items | Specification | Remarks | |
|
Nominal Capacity |
1500mAh |
0.2 C5A Discharge | |
| Nominal Voltage | 3.2V | ||
|
Discharge Cut-off Voltage |
2.0V |
0.2 C5A Discharge | |
| Charge Limited Voltage | 3.65±0.03V | 0℃～45℃ | |
| Standard Charge Current | 0.2 C5A | 0℃～45℃ | |
| Standard Discharge Current | 0.2 C5A | -10℃~ +60℃ | |
| Rapid Charge Current | 0.5C5A | 0℃～45℃ | |
| Rapid Discharge Current | 0.5C5A | -10℃~ +60℃ | |
|
Max. Discharge Current |
3C5A |
Limited Voltage2.0V | |
| Max. Pulse Discharge Current |
5C5A |
ms |
|
| Internal Impedance | ≤30mΩ | At AC 1kHz | |
| Weight | About 42g | ±2g | |
|
Storage Temperature Range |
≤one month | -20℃ ~ 45℃ |
Voltage of shipment 3.2V～3.4V |
| ≤three months | -20℃ ~ 35℃ | ||
| ≤a year | -20℃ ~ 25℃ | ||
About the Transportation&Delivery
1. Shippment to USA:By sea+Express(DDP,Tax free)
ETD:5-8 days
ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 15-25 days after sailing.
2. Shipment to EU:By railway+Express(DDP,Tax free).Except Switzerland,Romania
ETD:5-8 days
ETA:30-45 working days after shipping(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be updated after pick up by local express.Usually it will take around 25-40 working days after shipping.
Other:Some remote areas not listed,Please provide shipping address and zip code to to us to check.
About US
Changsha Deligreen Power Co.LTD,founded in 2010,is a "Green Energy Solution Service Provider".
Newest technology,new idea,heard-working and honest people.
Focus on lithium rechargeable battery,BMS,Balancer,charger and relative products.
Main application:electric bicycle,scooter,motorhome,AGV,solar/wind system,Energy storage system,truck and so on.s:
We promise"real"lithium capacity
We promise“100%“ refund for any quality problem
We promise”100%“ replacement for any shipping damage
We promise lifetime fast technical supportCustomers‘ satisfaction is our endless pursuing.
