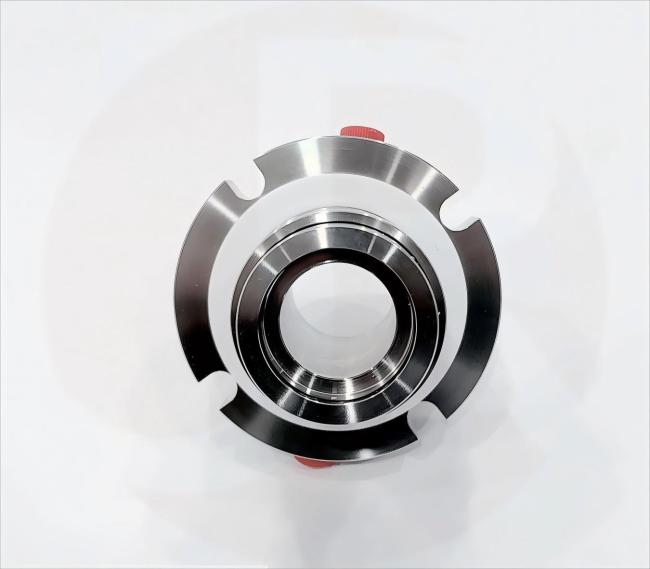

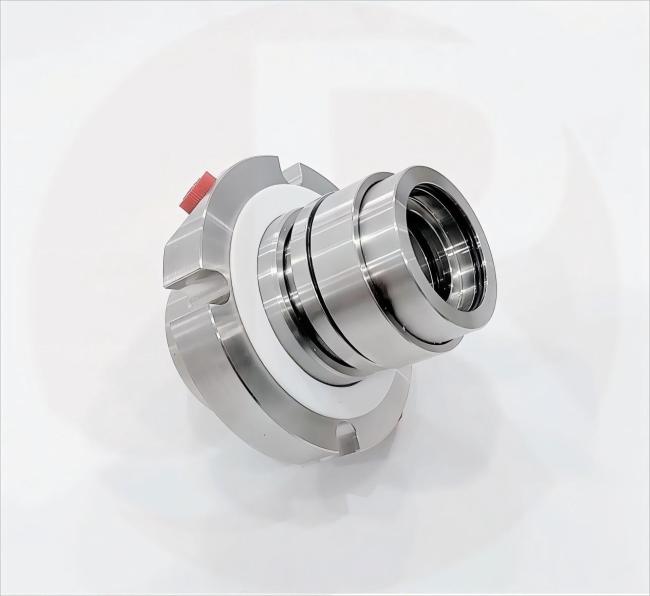

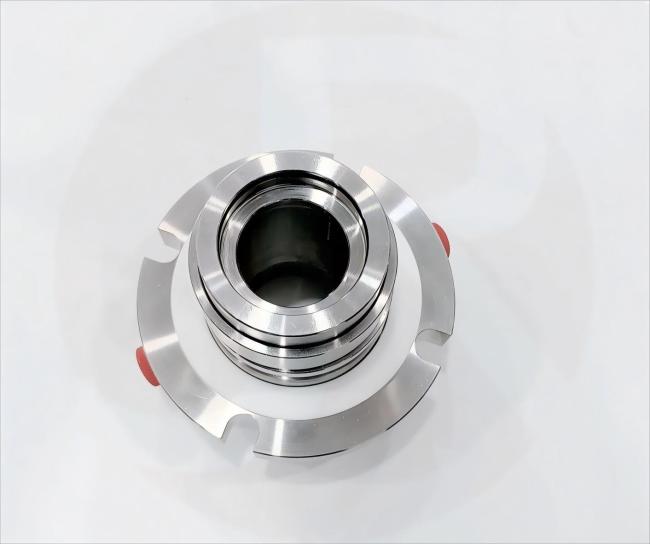

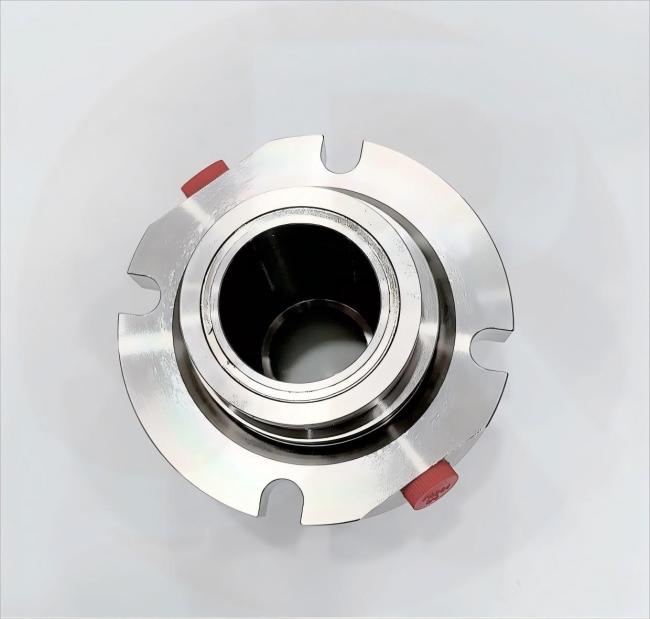

Mechanical Seal JCS2A-33-QRXQ Seal for Andritz S&ACP Shaft Size 33mm/43mm/53mm/60mm/70mm/85mm/115mm
Mechanical Seal JCS2A-33-QRXQ-169744 JCS2A-43-QRXQ-169747 Mechanical Seal for Andritz S&ACP Shaft Size 33mm/43mm/53mm/60mm/70mm/85mm/115mm
Operational Conditions:
-
Pressure: 0 ~ 2.0 MPaTemperature: - 20 ~ 180 ºCLinear Speed: 20 m/s or lessPressure of Cooling Water: 0.1 to 0.3 MPaSolid Capacity: 25% or lessStructure: Double-EndPressure: High Pressure Mechanical SealsSpeed: High Speed Mechanical SealTemperature: High Temperature Mechanical SealPerformance: CorrosionStandard: Specific CustomizationModel NO.: JCS2, JCS2A and JCS2PBalance: BalancedSpecification: Inner Diameter: 30 mm to 100 mmJCS2, JCS2A and JCS2P Double Pusher Mechanical Seal for Paper-making Equipment, Alumina Plants, Deashing System and Slurry Pumps, Safematic JCS2 Replacement SealScopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, for industries such as chemical engineering, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of Sulzer, working as Safematic JCS2 replacement seals.
Mechanical seal for all range of Andritz pump seal :
ISO series pump/MP Series pump/s range series pumps/SP series pumps/VP series pumps
Pump Model: S80-265/S100-265/S125-265/S100-350/S125-350/S150-330/125-400
S150-400/S200-380/S150-470/S200-470/S250-430/S350-470/S500-600
Mechanical seal for Andritz SP centrifugal pumps :
Pump model:SP32-200/SP40-200/SP50-200/SP40-250/SP50-250/SP60-250/SP 65-250/
SP100-250/SP125-250/SP40-315/SP50-315/S[65-315/SP100-315/SP125-315/SP125-400/
SP150-315/SP100-500/SP150-400/SP200-400/SP150-450/SP200-450/SP250-500/SP300-400
SP200-500/SP250-600/SHP300-600/SHP350-500/SP450-550/SHP600-700
Pump Model:ACP 65-315/ACP 100-500/ACP 65-250/ACP 100-315/ACP 125-400/ACP 150-500
ACP 100-250/ACP 125-315/ACP 150-400/ACP 200-500/ACP 300-700/ACP 125-250/ACP 150-315/
ACP 200-400/ACP 400-700/ACP 250-315/ACP 300-400/ACP 450-550/ACP 600-700Safematic seal for Andritz series pumps JCS1C-33-QREO-169742 JCS2A-33-QRXQ-169744 JCS1A-70-QREO-309589 SE2-90-QRMG-307975 JCS1C-43-QREO-169745 JCS2A-43-QRXQ-169747 JCS1-100-QREO-307859 SE2-050-QUMG-307820 JCS1C-53-QREO-146865 JCS2A-53-QRMQ-309594 LP-Q-SA-TF42/220-00 SE2-050-QTMG-307830 JCS1C-60-QREO-148866 JCS2A-60-QRMQ-309592 HR325/120-G11-E1 SE2-050-QUMG-308592 JCS1C-70-QREO-148885 JCS2A-70-QRMQ-309572 0530/587/03/D41828 SE2-050-QUMG-GA-128532 JCS1C-85-QREO-144813 JCS2A-85-QRMQ-309600 SB2-38-QRMG-307456 SE2-060-QTMG-307829 JCS1C-115-QREO-148931 JCS2A-115-QRMQ-309609 SB2-48-QRMG-307454 SE2-070-QUMG-307821 JCS1C-33-QREO-GA-192036 JCS2-MC-85-308637 SB2-53-QRMG-307453 SE2-070-QUMG-307826 JCS1C-43-QREO-GA-192038 JCS2-53-307854- SB2-65-QRMG-307455 SE2-070-QTMG-307828 JCS2-58-QREO-307856 SB2-90-QRMG-307452 SE2-070-QSMG-308450 JCS2-100-QRMO-307860 SAF-80-QRMQ-307366 SE2-70-QTMG-GA-135806 JCS2-65-QREG-307941 SAF-110-QREG-306803 SE2-085-QUMG-307881 SAF-140-QSMG-306997 SE2-085-QUMG-307825 SAF-185-QREG-306752 SE2-085-QSMG-307832 SEH-82-NREH-302055 SE2-085-QSMG-308074 SAB-220-QREG-307670 SE2-085-QTMG-308270 SE2-090-QUMG-307823 SE2-090-QTMG-307827 SE2-105-QUMG-310351 SE2-105-QTMG GA-118919 SE2-105-QUMG-GA-122370 SE2-105-QTMG-GA-122449
Materials:
- Stationary Ring: Ceramic, Silicon Carbide, TC
- Rotary Ring: Carbon, Silicon Carbide
- Secondary Seal: NBR, EPDM, FKM, PTFE
- Spring and Metal Parts: Steel
- DETAILS
Shaft Size 30mm/40mm/50mm/60mm/80mm/90mm Material Face: Carbon, SiC, TC
Seat: SiC, TC
O-ring:NBR,EPDM,FKM,Aflas,FEP,Kalrez,Chemraz etc
Spring: SS316,hastelloy C
Other Metal Parts : SS316Performance Capabilities Temperature:-20°C to 220°C, depends on the elastomer
Pressure: Up to 12bar
Speed: Up to 15m/s
End play/axial float allowance: ±2mm![]()
![]()
![]()
![]()
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
