ASME B30.26 Steel Screw Pin Bow Shackle Wide Body 12 Tonne
Price:
Call or Email for quote
MOQ:
500 pcs
Delivery Time:
Within 45 days after order confirmation
Brand:
Anfeng / AF
Product Description

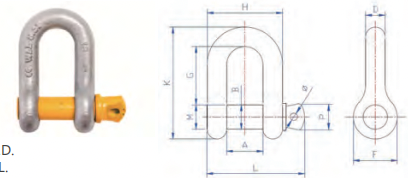

Standard Dee Shackle with Safety Screw Pin
Product Description
Dee Shackles, also referred to as Chain Shackles, which have a Dshaped bow that is narrower than Anchor / Bow Shackles. They are
designed and rated for in-line tension, they should not be side loaded,as side loading can twist or bend the bow of the shackle. When using
a chain shackle, the center line of the load should always coincide with the center line of the shackle when in use.
- All screw pin shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.
- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.
- Proof Load is 2 times of WLL, Minimum Breaking Load is 6 times of WLL.
- Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon reque

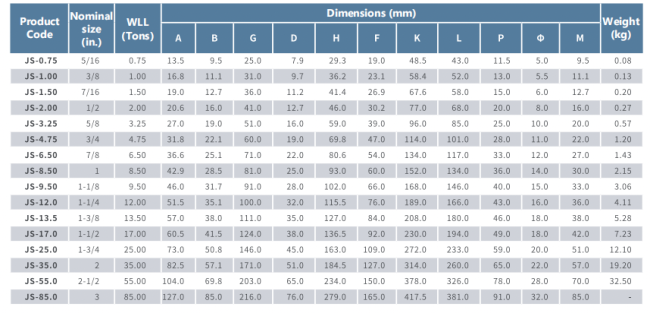

Specification
