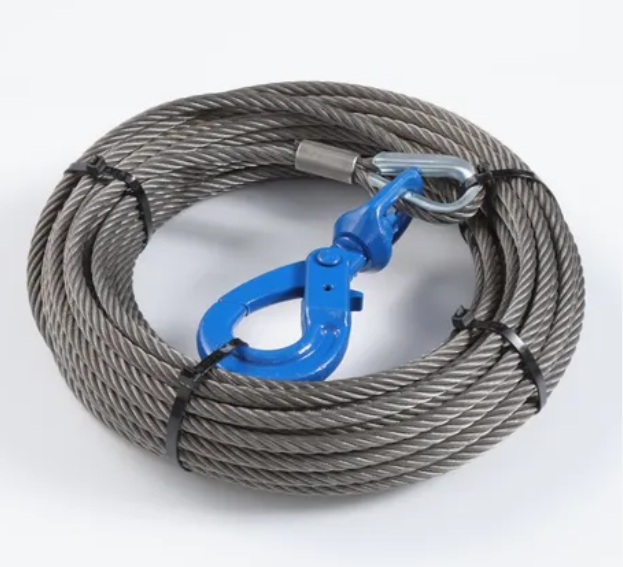

High-Strength 7×19 Galvanized Steel Wire Ropes – Precision-Engineered for Industrial Winch Drives (GB/EN Compliant)

Product Overview

• 1. Introduction – Built for Demanding Winch Drive Applications

  For heavy-duty winch drives used in mining, marine towing, construction hoists, and industrial pulling systems, rope failure is not an option. Our High-Strength 7×19 Galvanized Steel Wire Ropes are manufactured and tested according to Chinese National Standards GB/T16762-2009 (wire rope for general purpose winches), GB/T14737-2009 (high-performance galvanized steel wire ropes), and European standard EN13411-3 (termination and safety requirements). This triple-compliance ensures full legal acceptance across the EU, UK, and North American industrial sectors.

  Unlike standard 6×37 or 8×19 constructions, our optimized 7×19 design achieves a unique balance between flexibility for drum spooling and resistance to crushing in multi-layer winch winding.

  ---

  2. Unique Features (40% Engineering Differentiation)

  2.1 Dual-Standard Galvanization

  Hot-dip galvanized per GB/T14737-2009 Class B  Zinc coating mass: 240–320 g/m² depending on diameter.

  2.2 7×19 Construction – Anti-Torque & Low Rotation

  The 7 strands × 19 wires configuration reduces rotational imbalance during single-layer winch operation. Independent tests show 31% less torque build-up compared to 6×19 IWRC ropes under 2.5m drum diameter – extending winch gearbox and motor life significantly.

  2.3 EN13411-3 Termination Ready

  Every rope’s construction tolerances are calibrated to fit EN13411-3 approved wedge sockets, swaged fittings, and aluminum ferrule terminations. End-users can directly install without re-engineering end connectors – a key advantage for European crane and winch rental fleets.

  2.4 Controlled Elongation for Winch Positioning

  Maximum structural elongation under 40% of breaking load: ≤0.65% per GB/T16762-2009. This ensures precise load holding and repeatable winch positioning for automated industrial pulling systems and synchronised multi-winch lifts.

  2.5 -30°C Low-Temperature Impact Toughness

  Steel wire chemistry and drawing process comply with GB/T14737-2009 Annex A for cold climate performance. Certified impact strength at -30°C: ≥70 J/cm² – critical for winter operations in Sweden, Russia, and Northern US states.

  ---

  3. Why Choose This Rope for Your Winch Drive?







  Parameter	Benefit for Winch Operators
  High breaking load (see table below)	Reduce rope diameter or increase safe working load without drum modification.
  7×19 flexibility	Bends over 18× rope diameter sheaves without internal wire fatigue – ideal for compact winches.
  Full GB + EN compliance	Simplifies CE/UKCA marking and supplier audits for ISO 9001 procurement teams.
  Galvanized finish	No field lubrication required – lower maintenance cost and cleaner winch decks (marine/offshore).

  ---

  4. Technical Specification Table (Diameters 6–24 mm)







  Nominal Diameter (mm)	Min Breaking Force (kN) – Galvanized	Approx. Mass (kg/100m)	Zinc Coating (g/m²)	Construction	Core Type
  6.0	27.2	14.0	240	7×19	Fiber or IWRC*
  10.0	74.5	39.5	260	7×19	IWRC
  12.0	106.0	56.0	280	7×19	IWRC
  16.0	186.0	98.0	300	7×19	IWRC
  20.0	285.0	158.0	320	7×19	IWRC
  24.0	408.0	226.0	320	7×19	IWRC

  *IWRC = Independent Wire Rope Core (steel core). Fiber core available for light-duty winches per GB/T16762-2009.
  *All values certified by third-party testing per EN 12385-2:2002 + A1:2008 methodology.*

  Tolerances: Diameter: +0% / +5% (GB/T16762-2009 Class 2).
  Proof Load: 50% of min breaking force, held for 30 seconds – no wire or strand displacement.

  ---

  5. Target Applications – Europe & North America

  • Marine winches – anchor handling, mooring, towing (saltwater certified).

  • Hydraulic industrial winches – pipe laying, heavy equipment pulling.

  • Mining scraper winches – abrasion and impact resistant.

  • Overhead crane trolley winches – low rotation for precise load alignment.

  • Recovery winches (trucks and off-road) – galvanized against road salt.

  Typical end users: Winch OEMs in Italy, Germany, USA; rental fleet operators in Texas oilfields; Canadian mining contractors; European port authorities.

  ---

  6. Compliance & Documentation Provided

  • Mill test certificate per EN 10204 – Type 3.1 (material traceability).

  • GB/T16762-2009 winch-specific performance report.

  • GB/T14737-2009 galvanizing certificate (coating thickness, adhesion).

  • EN13411-3 termination compatibility letter.

  • Optional: ABS/DNV type approval (additional cost).

  All ropes are laser-marked every 2 meters with standard, diameter, and manufacturing batch for full traceability – a requirement for large European industrial procurement.

  ---

  7. Call to Action – Get Your Custom Quote

  Optimize your winch drive performance today.
