China EG8145X6 2.4G 5G GPON Dual Band Router 4GE 1POTS 2USB 10G GPON ONT for sale

EG8145X6 2.4G 5G GPON Dual Band Router 4GE 1POTS 2USB 10G GPON ONT

Name: EG8145X6 2.4G 5G GPON Dual Band Router 4GE 1POTS 2USB 10G GPON ONT
Brand: HONGKING INDUSTRIAL CO., LIMITED

Price Negotiable

Price: 30us$

MOQ: 100

Delivery Time: 15days

Brand: huawei

Product Description

FTTH Optical GPON ONU Optical EG8145X6 with 4GE 1POTS 2USB 2.4G/5G Dual Band 10G GPON ONT

Overview

Quick Details

Model Number:: EG8145X6

Type:: ONU

Place of Origin:: Guangdong, China

Brand Name:: UT-King

Use:: FTTH

Warranty Time:: 1 Year

Network:: Wireless Lan, wifi

Application:: FTTH FTTX

Product Name:: GPON ONU

Operating Temperature:: 0~40°C

Operating Humidity:: 5~95% RH (non~condensing)

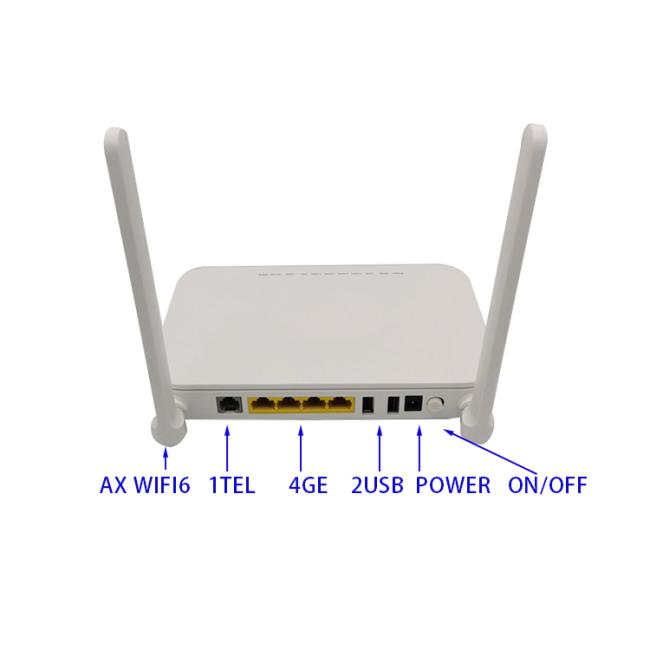

Function:: 4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G WiFi

System Power Supply:: 11~14 V DC, 1.5 A

PON interface:: SC/UPC SC/APC

Applications Distance:: 20km

LAN Interface:: 4*10/100/1000Mbps RJ45 Ports

Software:: English Firmware

Supply Ability

Supply Ability: 10000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 1 pcs 1 box.30 pcs 1 carton

Product Description

FTTH Optical GPON ONU Optical Network Terminal EG8145X6 with 4GE 1POTS 2USB 2.4G/5G Dual Band 10G GPON ONT

Huawei EG8145X6 10G FTTH is an intelligent Wi-Fi 6 routing-type Optical Network Terminal with 4 GE ports, 1 POTS port, and 1 USB port, and 2.4G and 5G Wi-Fi connectivity, and it adopts Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized

network management, OptiXstar EG8145X6 helps enterprises construct powerful all-optical access solutions.

Features

* Class B+

* Receiver sensitivity: -27dBm ~ -29dBm

* Overload optical power: -8 dBm

* Wavelengths: US 1310 nm, DS 1490 nm

* Wavelength blocking filter (WBF) of G.984.5

* Flexible mapping between GEM Port and TCONT

* GPON: consistent with the SN or password authentication defined in G.984.3

* Bi-directional FEC

* SR-DBA and NSR-DBA

* Type B (single-homing&dual-homing
Specification:

Moodel	EG8145X6
Pon type	GPON
Dimensions (H x W x D)	35 x 195 x 125 mm (without external antenna and pads)
Weight	Approximately 372 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1.5 A
Port	4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6
Maximum Power Consumption	18 W
Antenna	External antenna
Installation Mode	Desktop
Power Saving	COC V7
POTS Port	Maximum REN: 4
	G.711A/μ, G.729a/b, and G.722 encoding/decoding
	T.30/T.38/G.711 fax mode
	DTMF
	Emergency calls (with the SIP protocol)
USB Port	USB 2.0
	FTP-based network storage
	File/Print sharing based on SAMBA
	DLNA function
