Neopower 60A In-line Fast Charging Connector | 1000V DC IP68 Cable-to-Cable Set
Description:
The Neopower 60A In-line Connector Set offers unparalleled flexibility for designing and deploying high-power energy storage systems. Engineered for rapid charging applications, this cable-to-cable connector allows you to create secure, high-performance DC power extensions or inter-module links without the need for panel mounting. The "Air Docking" design features a robust, weatherproof seal and a secure twist-lock mechanism, ensuring a stable, low-resistance connection that is protected from the elements. It is the ideal solution for modular battery systems, mobile power applications, and any scenario that demands a reliable, field-serviceable high-power connection.
Features:
-
True In-line Connection: The "Air Docking" socket and plug are designed specifically for secure, overmolded, or field-terminated cable-to-cable connections.
-
60A Fast Charge Performance: Capable of handling 60A at 1000V DC, this connector set is built to facilitate rapid charging and minimize energy loss.
-
Secure Twist-Lock System: A rugged locking collar provides tactile feedback and prevents accidental disconnection from cable pull, vibration, or impact.
-
Extreme IP68 Environmental Sealing: Offers the highest level of dust and water protection, making it fully submersible and suitable for the harshest outdoor and marine environments.
-
Color-Coded for System Integrity: Available in Red, Orange, and Black, allowing for clear and safe identification of different circuits and polarities, preventing costly installation errors.
-
High-Durability Construction: Made from UL94-V0 flame-retardant Nylon and featuring silver-plated brass contacts for maximum safety, efficiency, and a long service life.
Application:
An essential component for flexible and robust high-power DC systems:
-
High-Power Cable Extensions for DC Fast Chargers
-
Interconnecting Modular Energy Storage Cabinets
-
Mobile Power Distribution Units for Events and Job Sites
-
Marine and Offshore DC Power Systems
-
Heavy-Duty Industrial and Agricultural Equipment.
Parameters:
| Specification | Value |
| Rated Current | 60A |
| Rated Voltage | 1000V DC |
| IP Rating | IP68 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Brass |
| Surface Coating | Silver Plated |
| Wire Range | 6-8AWG |
| Connection Type | In-line (Cable-to-Cable) |
| Locking Mechanism | Twist-Lock |

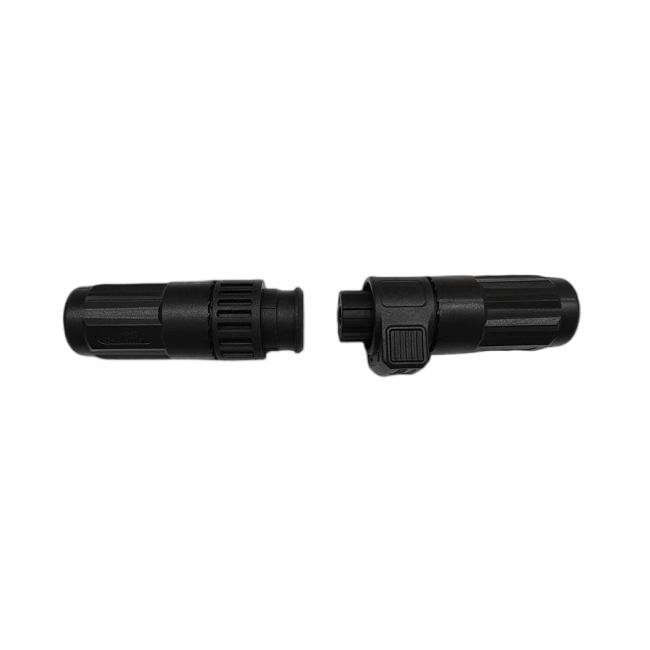

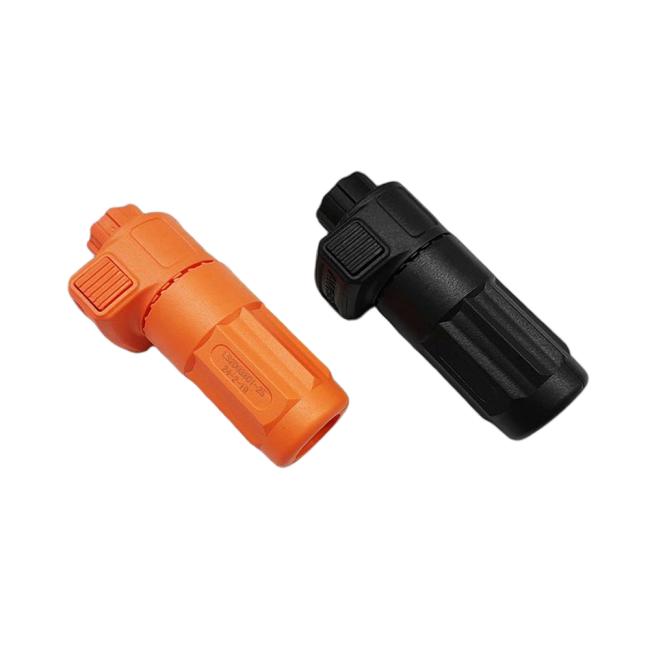

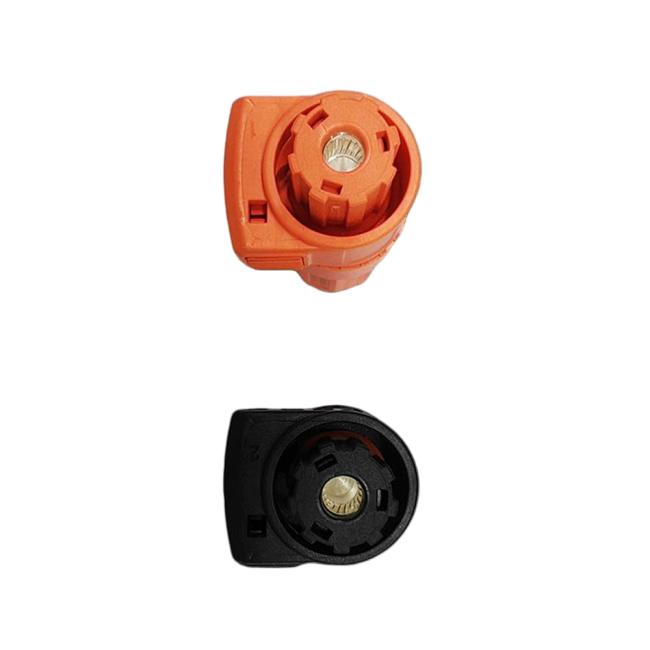

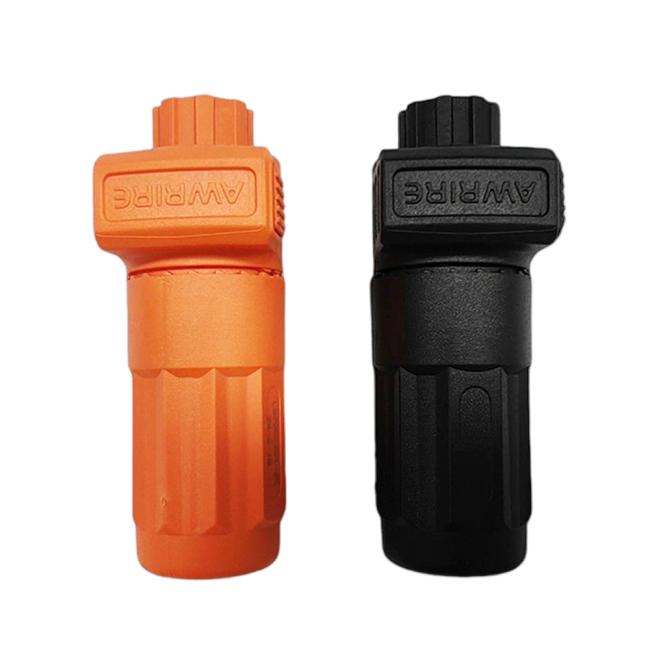

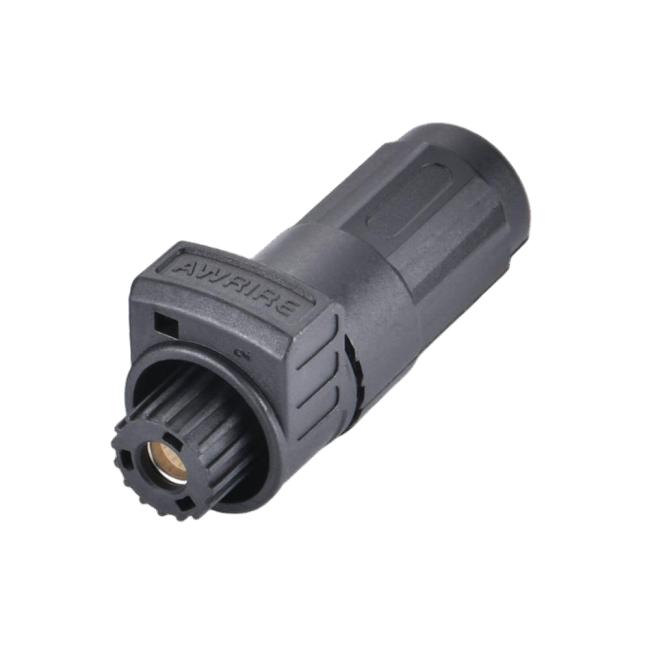

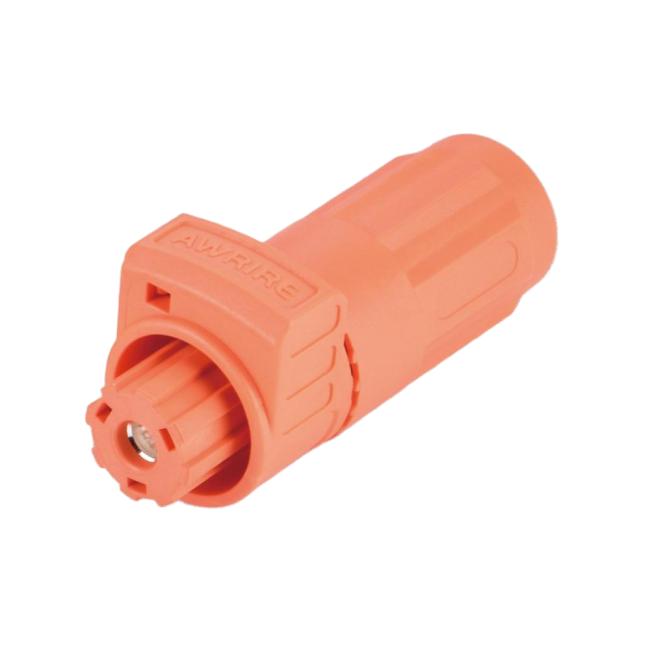

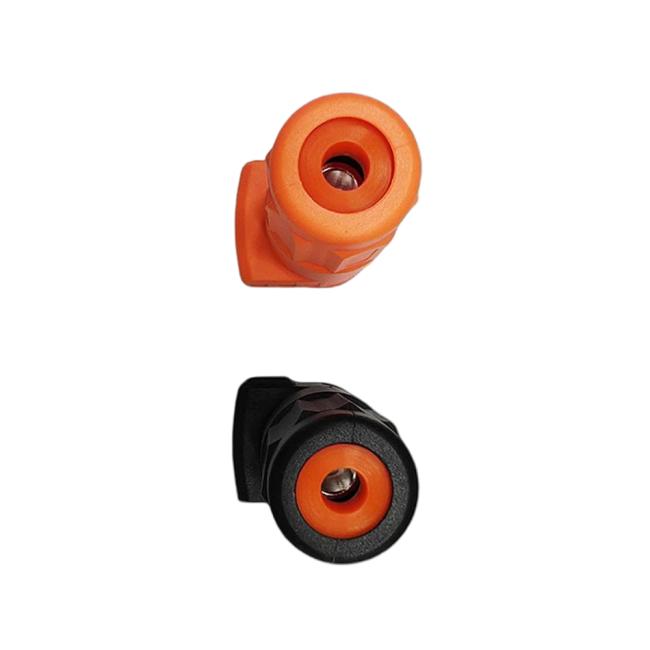

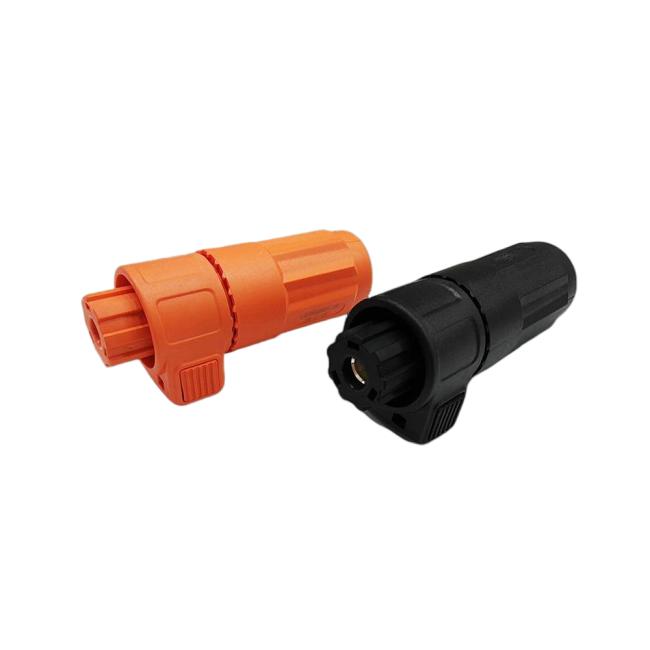

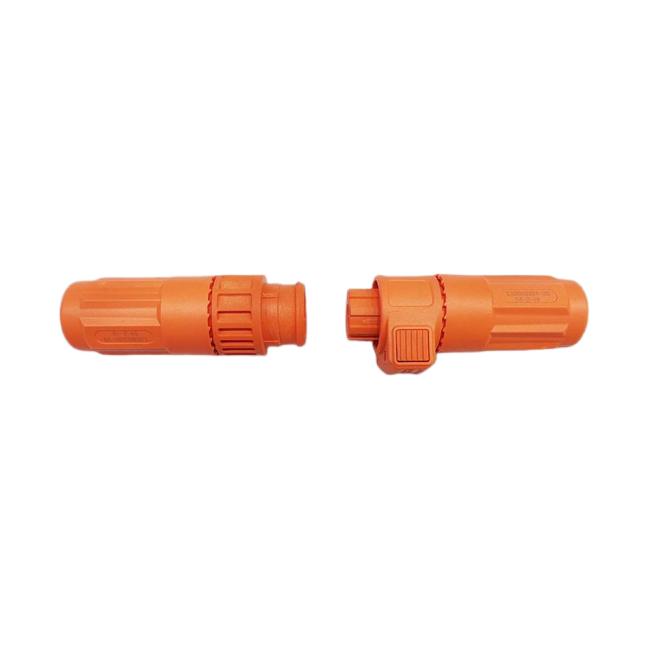

Product Pictures:
