1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

Part No.: C662

Features:

• Secondary lock function

• Cable range: 25~50mm²

• Poka-yoke

• HVIL

• Touch-proof

• 360°shielding

Application:

• E-Motor
• Battery Pack
• Motor Controller
• PDU

Specifications:

• Rated current: 125A (25mm²) , 150A (35mm²)
• Rated voltage:1000V
• Insulation resistance: ≥5000mΩ(power)≥1000mΩ(signal)
• Dielectric withstanding voltage:2500V AC (power), 1000V AC(signal)
• Temperature Range: -40~+125 ℃
• IP Rating: IP67

Parameters:

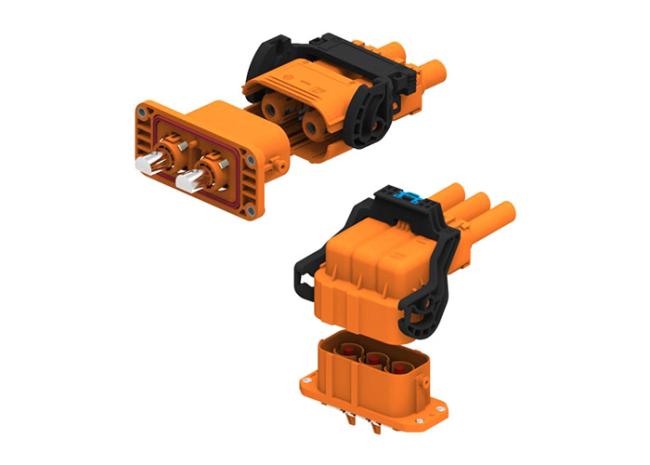

Product Pictures:

Drawings:

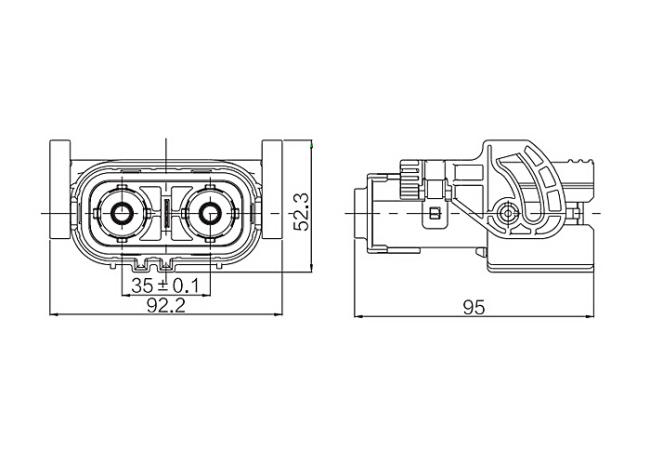

C662  2pin 180° Straight plug

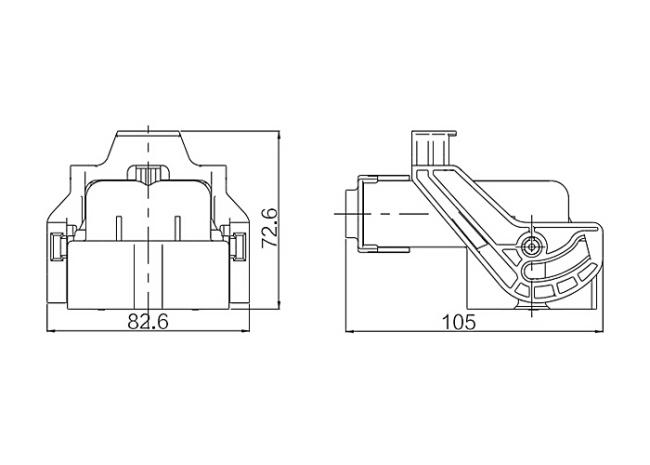

C662 2pin 90° Right Angle plug

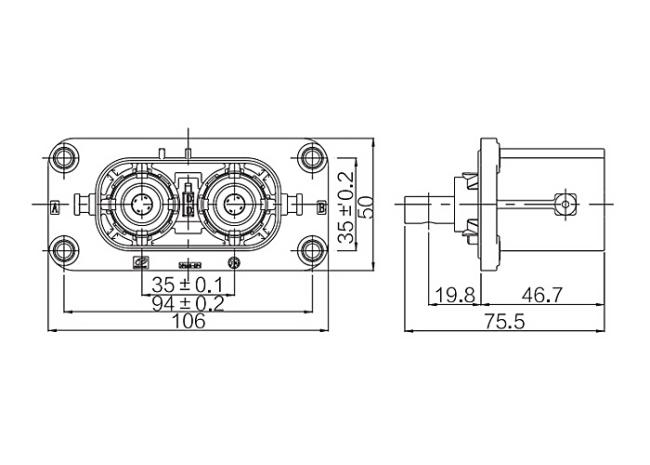

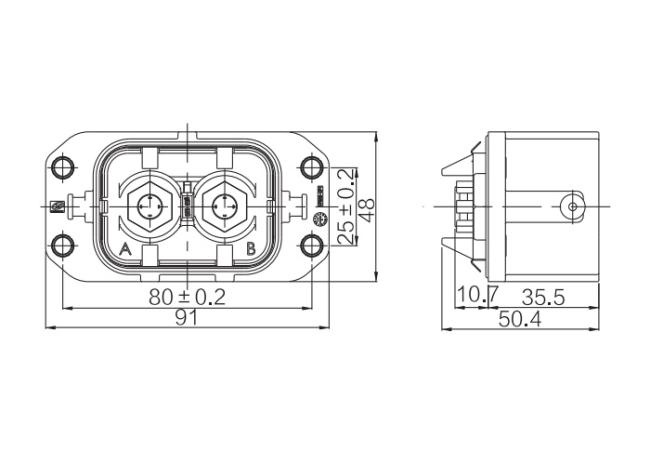

C662 2pin 180° Straight Receptacle

C662 2pin 90° Right Angle Receptacle

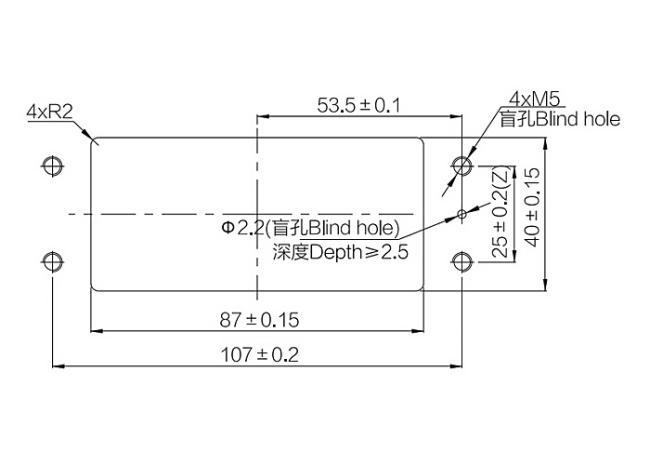

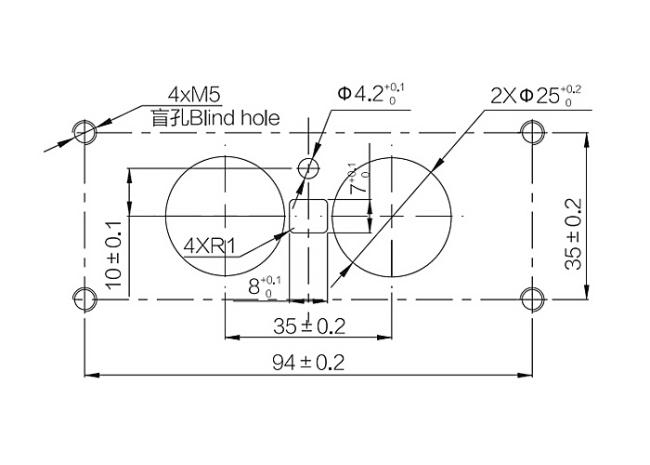

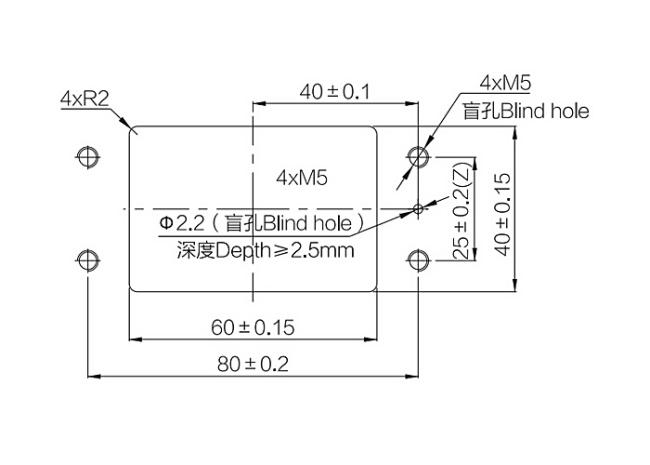

C662 2pin 180° Straight Receptacle Interface Mounting Design

C662 2pin 90° Right Angle Receptacle Interface Mounting Design

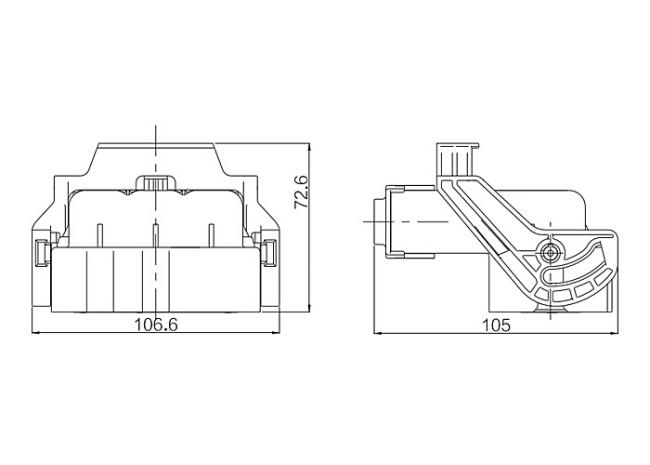

C662 3pin 90° Right Angle Plug

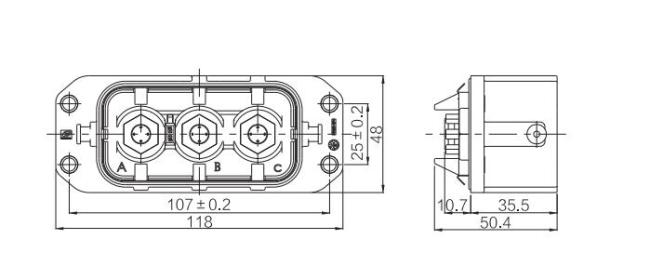

C662 3pin 90° Right Angle Receptacle

C662 3pin 90° Right Angle Receptacle Interface Mounting Design

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

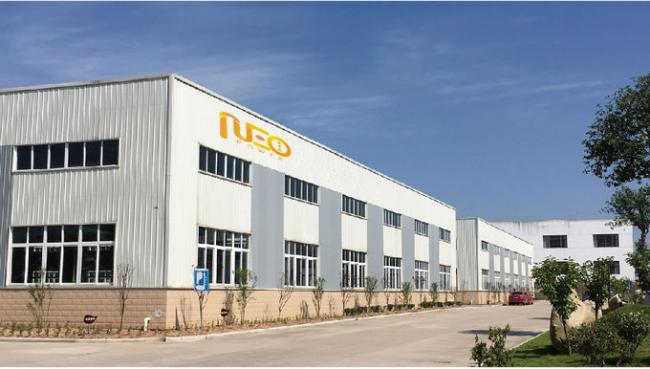

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.
