Part No.: S1146
Features:
- Cable range: 16~20AWG, 1.5mm21mm2
Cable Outer Diameter: φ1.7~2.7mm
-
Poka-yoke
Application:
- Signal System
Specifications:
- Rated current: 8A max.
- Rated voltage:250V
- Insulation resistance: ≥5000mΩ
- Contact Resistance: ≤30 mΩ
- Dielectric withstanding voltage:1000V AC(signal)
- Temperature Range: -40~+125 ℃
- IP Rating: IP67, Receptacle:IPX7
- Number of Pins: 35Pin
Parameters:
| Rated Current: | 8A max. |
| Rated Voltage: |
250V |
| Cable Range: |
16~20AWG, 1.5mm21mm2 Cable Outer Diameter: φ1.7~2.7mm |
| Number of Pins | 35 Pin |
| Insulation Resistance: | ≥5000mΩ |
| Contact Resistance | ≤30 mΩ |
| Dielectric Withstanding Voltage: | 1000V AC(signal) |
| Temperature Range: | -40~+125 ℃ |
| IP Rating: | IP67, Receptacle:IPX7 |
| Application: |
Signal System |
Product Pictures:
Drawings:

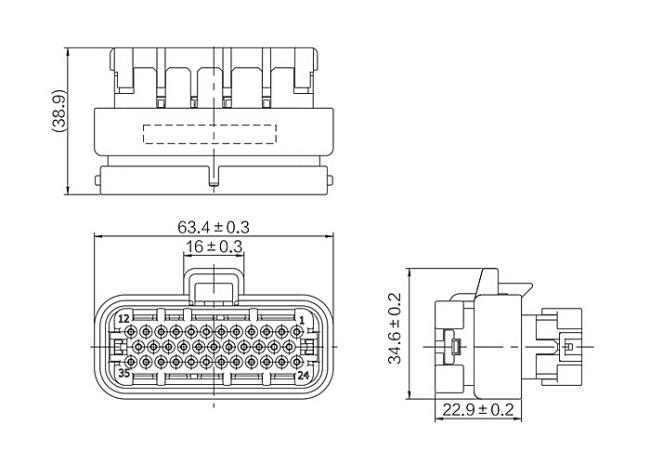

S1146-EV S35P plug
S1146-EV P35
S1146 PCB Layout

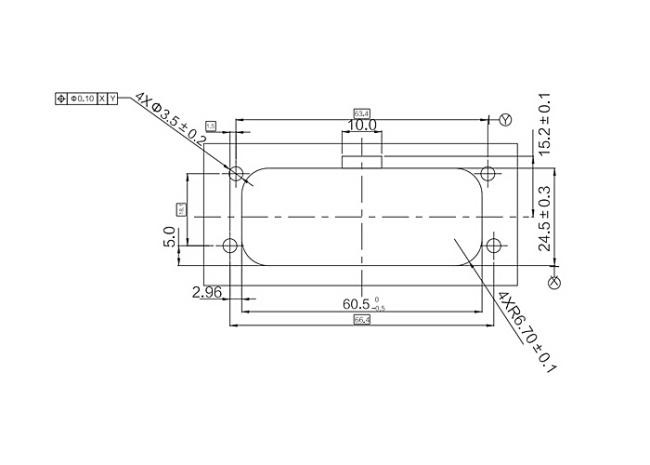

S1146 Mounting Interface Design
