12m3/H Spiral Sludge Dewatering Machine Stainless Steel Coal Slime Sludge Dewatering

Price Negotiable

Price: Negotiatable

MOQ: 1 set

Delivery Time: 20 days

Brand: longdai

Product Description

12m3/H spiral sludge dewatering machine stainless steel coal slime sludge dewatering

The screw press sludge dewatering machine is an economical and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment. By using the screw extrusion principle, the solid-liquid separation is realized through the strong extrusion force generated by the change of screw diameter and pitch, and the small gap between the floating ring and the fixed ring.

Process description

Sludge dewatering is the practice of minimizing waste by volume to prepare for its effective disposal. Sludge originates during the process of treating wastewater before the water can be released back into the environment.

Product advantages

1,Suitable for wide range sludge dewatering and can be used for oily sludge treatment.
2,Operating continuously and automatically, not easy to block.
3,Low investment and operation cost, no secondary pollution.
4,Energy saving and environmental friendly, compact design with small footprint.
5,Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.

Application scenarios

Screw press dehydrator is widely used in municipal, aquaculture, food, starch, petroleum, pharmaceutical, chemical, paper, leather and other industries.

Parameters

Specification///model			DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Processing capacity(m³/h)	Mud concentration(S.S.0.2-0.5%)		0.6-1.5	1.2-3.0	1.8-4.5	3.6-9.0	6.0-15	12-30	18-45
	Mud concentration(S.S.0.5-2.0%)		0.25-0.6	0.5-1.2	0.75-1.8	1.5-3.6	2.5-6.0	5.0-12	7.5-18
	Mud concentration(S.S.2.0-5.0%)		0.1-0.25	0.2-0.5	0.3-0.75	0.6-1.5	1.0-2.5	2.0-5.0	3.0-7.5
Absolute dry quantity(kg/h)	Mud concentration(S.S.0.2-0.5%)		0-3.0	2.4-6.0	3.6-9.0	7.2-18	12-30	24-60	36-90
	Mud concentration(S.S.0.5-2.0%)		0-5.0	5.0-10	9.0-15	18-30	30-50	50-100	90-150
	Mud concentration(S.S.2.0-5.0%)		0-5.0	5.0-10	9.0-15	18-30	30-50	50-100	90-150
Mud cake moisture content(%)			75-85	75-85	75-85	75-85	75-85	75-85	75-85
Spiral diameter (mm) * quantity (pieces)			100*1	100*2	200*1	200*2	300*1	300*2	300*3
Use power (KW)			0.2	0.3	0.6	0.8	0.8	1.2	1.95
Equipment dimensions (mm)		L	1816	1816	2500	2500	3255	3455	3605
		W	756	910	850	935	985	1295	1690
		H	1040	1040	1270	1270	1600	1600	1600
Reference weight (kg)			190	275	360	470	820	1350	1820

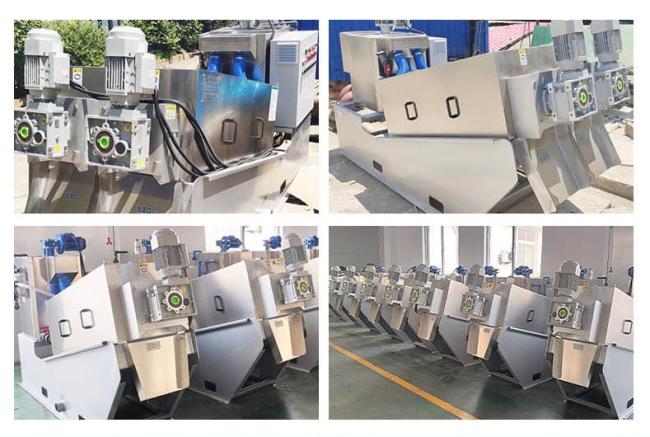

Real picture

Company Profile

Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
