U Groove Shaftless Screw Conveyor Breeding Textile Factory Sludge Spiral Conveyor

Name: U Groove Shaftless Screw Conveyor Breeding Textile Factory Sludge Spiral Conveyor
Brand: Jiangsu Longdai Environmental Protection Group Co., Ltd.

Price Negotiable

Price: Negotiatable

MOQ: 1 set

Delivery Time: 25 days

Brand: longdai

Product Description

U-groove shaftless screw conveyor breeding textile factory sludge spiral conveyor

The materials conveyed by the shaftless screw conveyor are input from the feeding port and output after being pushed by the screw.
The whole process can be carried out in a sealed groove, which reduces both noise and environmental pollution. Shaftless screwconveyor is mainly used for conveying materials with high viscosity and compressibility. During the conveying process, the mixing,mixing and other processes are completed at the same time.

Main Features

Compared with the traditional shaft screw conveyor, because of the design of non central shaft and hanging bearing, the whole steel screw conveyor with certain flexibility is used to push materials.

Product composition

The main structure is composed of driving device, head assembly, casing, shaftless spiral, slot liner, feed inlet, outlet, cover,base, etc.

Parameters

Parameters	spiral Nominal diameter (mm) spiral dia (mm)	Type	LS-300W	LS-350W	LS-400W
			300	350	400
			285	320	385
Capacity	installation angle	0°	6	8.4	11.7
		5°	5.4	7.56	10.53
		15°	4.2	5.88	8.19
		25°	3.6	5.04	7.02
Spiral speed n(r/min)			12 to 16
Motor N(KW)		0.75-5.5 (according to L and angle)
installation size(mm)	A		0+40
	B		0 + 110
	Bi		Matching with corresponding equipment
	L		According to user requirements
	Li		Matching with corresponding equipment
	l_2		(L-1000)/2-(L-71000)/3
	L3		300	350	400
	H		Matching with corresponding equipment
	Hi		188	210	240
	H2		H-150
	H3		Matching with corresponding equipment

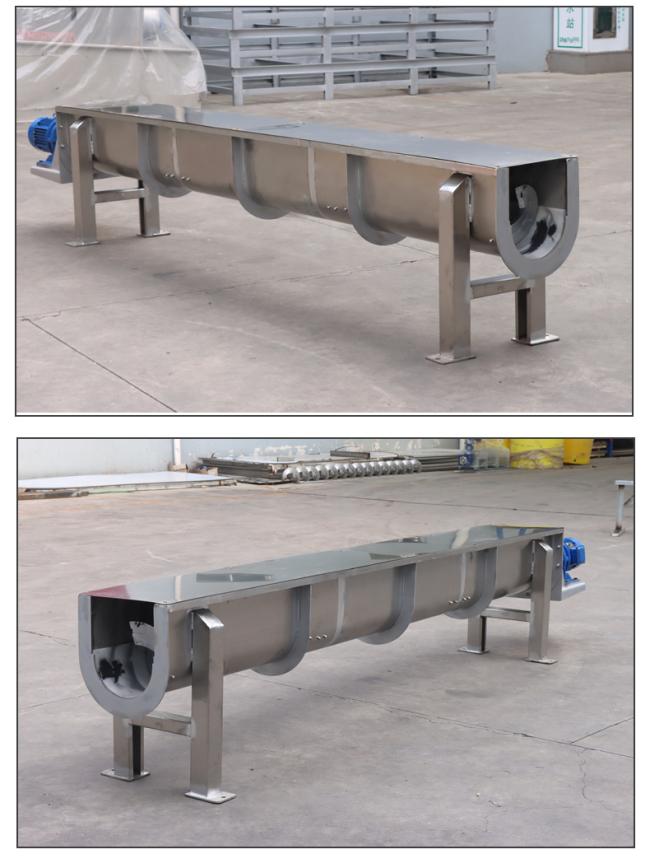

Real picture

Company Profile

Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
