Slag Carbon Steel Sprial 304 Stainless Screw Conveyor For Cement
High quality slag carbon steel sprial conveyor 304 stainless steel screw conveyor for cement
The LSW series screw conveyor mainly uses spiral blade rotation to promote the completion of the conveying process of bulk materials. It can be horizontal or inclined (with an inclination angle less than 20 °) to transport powder, particles, or small pieces of materials.
Advantage
1. Simple structure, small cross-section, good sealing performance, and reliable operation.
2. Low manufacturing cost, easy intermediate packaging materials and unloading, transportation direction can be reversed, or both directions can be transported simultaneously.
3. During the transportation process, the materials also need to be stirred, stirred, heated, and cooled.
4. The material flow can be adjusted by loading and unloading.
Parameter
| Type | diameter of screw(mm) | Helix istance(mm) | speed(r/min) | conveying capacity(m3/h) | length of screw(mm) |
| LS-200 | 200 | 200 | 100 | 6.2-12.4 | customized |
| LS-250 | 250 | 250 | 90 | 10.9-21.8 | customized |
| LS-300 | 300 | 300 | 80 | 13.4-38.8 | customized |
| LS-400 | 400 | 355 | 71 | 37.7-62.5 | customized |
| LS-500 | 500 | 400 | 63 | 49.6-97.7 | customized |

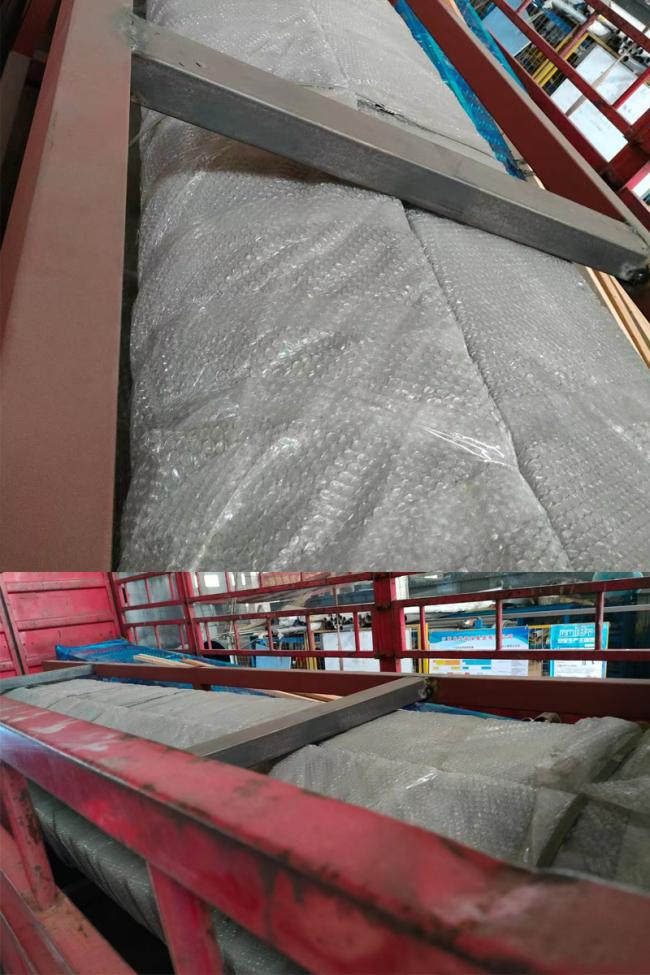

Real Picture
Company Profile
Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
FAQ
Q: What certificates do you have?
