10t/H Shaftless Screw Conveyor 304 Stainless Steel Sludge And Cinder Conveying Equipment
Price:
Negotiatable
MOQ:
1 set
Delivery Time:
20 days
Brand:
longdai
Product Description
10t/h shaftless screw conveyor 304 stainless steel sludge and cinder conveying equipment.
A screw conveyor or auger conveyor is a mechanism that uses a rotating helical screw blade, called a "flighting", usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat, and bone meal, municipal solid waste, and many others.
Application
Screw conveyors are used to convey bulk material from almost any position (vertical, horizontal, or at an incline) and are one of the most reliable methods of conveyance. The screw conveyor is composed of a pipe with a welded steel strip that is formed into a continuous helix. The helix is referred to as the flighting.
working principle
Materials (liquid or solid state) are loaded into the conveyor and pushed along by a helical screw blade ('flighting') mounted onto a rotating shaft. Materials remain entrained between the screw blade and casing until the point of discharge is reached.
Parameters
| Parameters | spiral Nominal diameter (mm) spiral dia (mm) |
Type | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W |
| 200 | 250 | 300 | 350 | 400 | |||
| 185 | 235 | 285 | 320 | 385 | |||
| Capacity | installation angle | 0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | ||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | ||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | ||
| Spiral speed n(r/min) | 12 to 16 | ||||||
| Motor N(KW) | 0.75-5.5 (according to L and angle) | ||||||
| installation size(mm) | A | 0+40 | |||||
| B | 0 + 110 | ||||||
| Bi | Matching with corresponding equipment | ||||||
| L | According to user requirements | ||||||
| Li | Matching with corresponding equipment | ||||||
| l_2 | (L-1000)/2-(L-71000)/3 | ||||||
| L3 | 250 | 250 | 300 | 350 | 400 | ||
| H | Matching with corresponding equipment | ||||||
| Hi | 140 | 165 | 188 | 210 | 240 | ||
| H2 | H-150 | ||||||
| H3 | Matching with corresponding equipment |
||||||

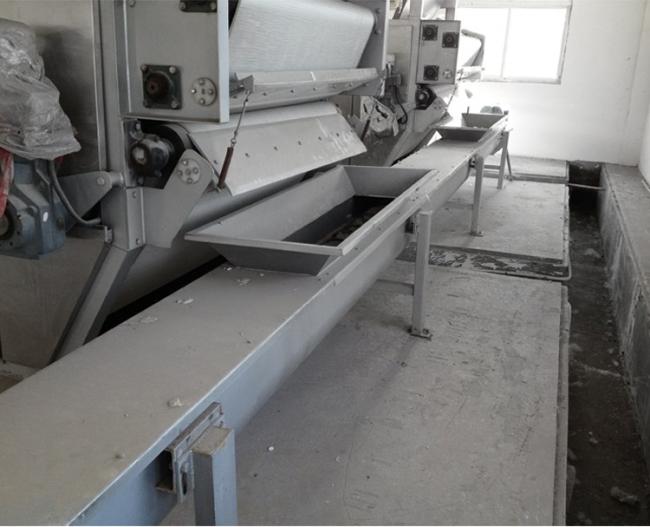

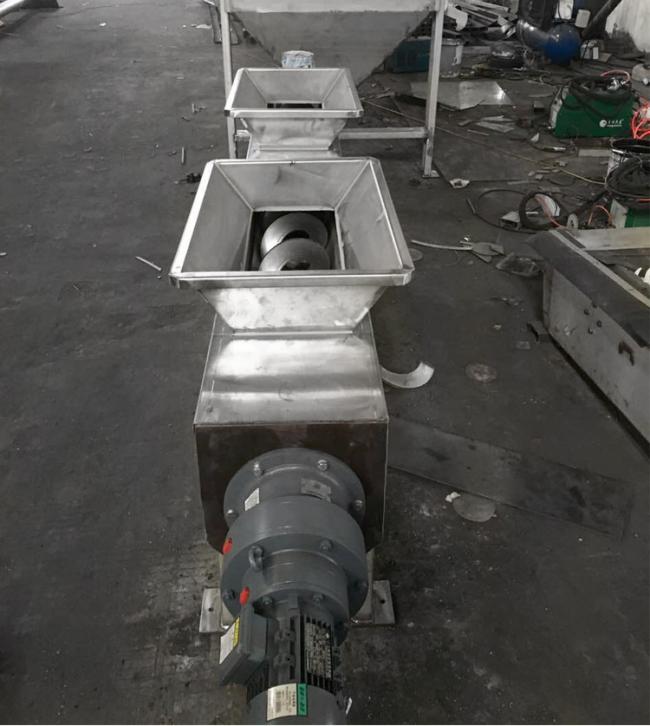

Real picture
Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
