Rectangle Type Marine Rubber Fender, Square Type Dock Bumper Guards Marine Rubber Fender
Rectangle Type Marine Rubber Fender, Square Type Dock Bumper Guards Marine Rubber Fender
Description:
SD type rubber fenders are used in ship side, drydock, floating dock, quay side. Production process is fully automatic winding the overall molding vulcanization and mechanical vehicle processing groove process. The workmanship makes the rubber fender has good & long-life performance, utility, easily installation. Our Rubber Fenders are made of high abrasion resistance rubber with good resilience properties for required applications. These fenders are easy to install and dismantle.
Application:
Type: SD
Applicable to ship side, drydock, floating dock, quay side
High energy absorption and low reaction force.
CCS, BV, ABS and SGS certification.
Main Technical Specifications:
| TYPES | H | B | L | Holes | Q | C | h | D | d | Remarks |
| SD150X1000 | 150 | J 50 | 1000 | 3 | 300-400 | 100-150 | 37.5 | 55 | 25 | Fenders with other specification could be discussed with |
| SD200X1000 | 200 | 200 | 1000 | 3 | 300-400 | 100-150 | 50 | 65 | 28 | |
| SD250X1000 | 250 | 250 | 1000 | 3 | 300-400 | 100-150 | 62.5 | 65 | 32 | |
| SD300X1000 | 300 | 300 | 1000 | 3 | 300-400 | 100-150 | 75 | 70 | 35 | |
| SD400X1000 | 400 | 400 | 1000 | 3 | 300-400 | 100-150 | 100 | 80 | 40 |

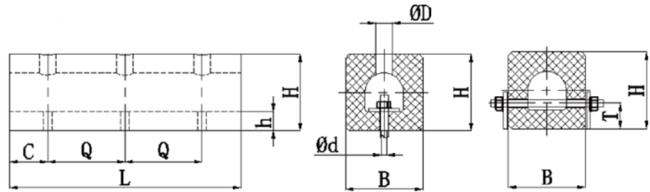

Drawing of Rectangle Type Marine Rubber Fender, Square Type Dock Bumper Guards Marine Rubber Fender

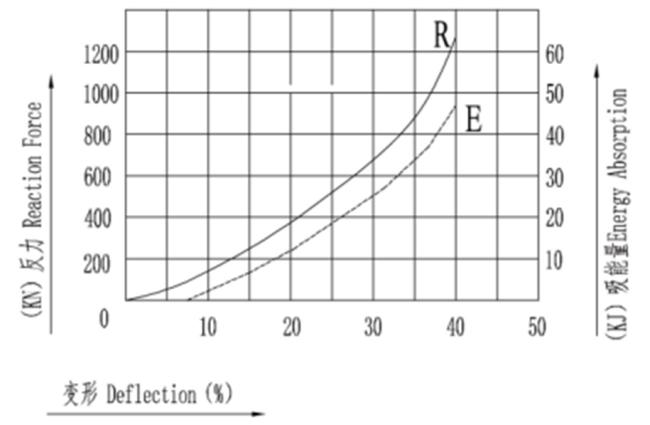

Performance Curve
Drawing of Rectangle Type Marine Rubber Fender, Square Type Dock Bumper Guards Marine Rubber Fender
