Product information

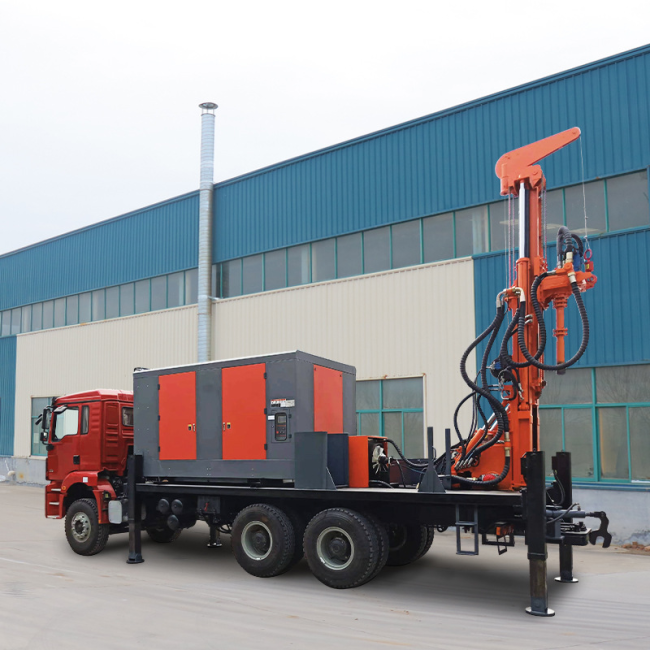

1. Vehicle mounted pneumatic water well drilling rig, which can be used for water intake drilling, geothermal drilling,
irrigation drilling, and environmental protection testing drilling
2. Customizable in multiple sizes, deep drilling, high efficiency, fast footage, large drilling diameter, flexible movement, and excellent workmanship.

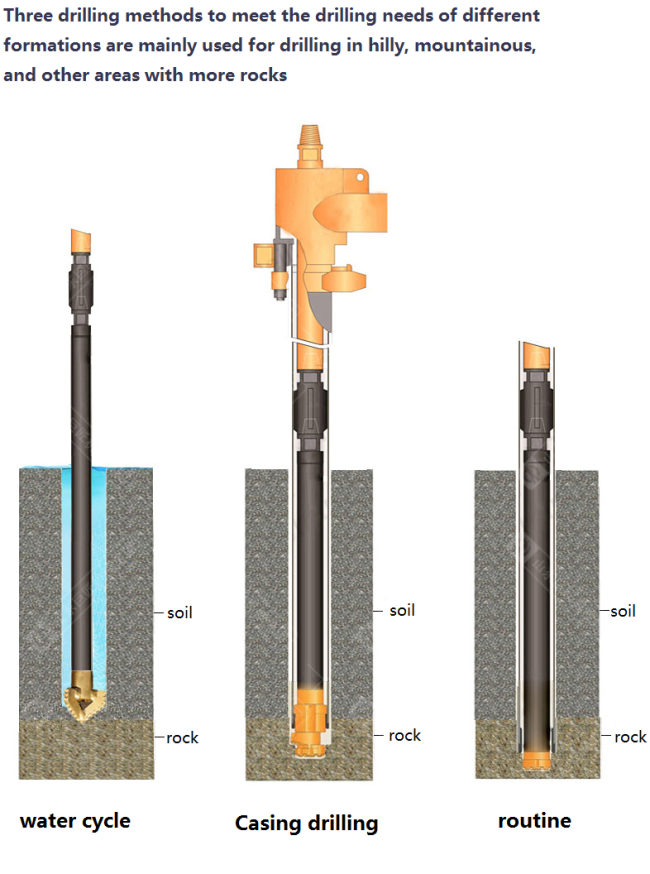

3. Three drilling methods to meet the drilling needs of different formations are mainly used for drilling in hilly, mountainous, and other rocky areas

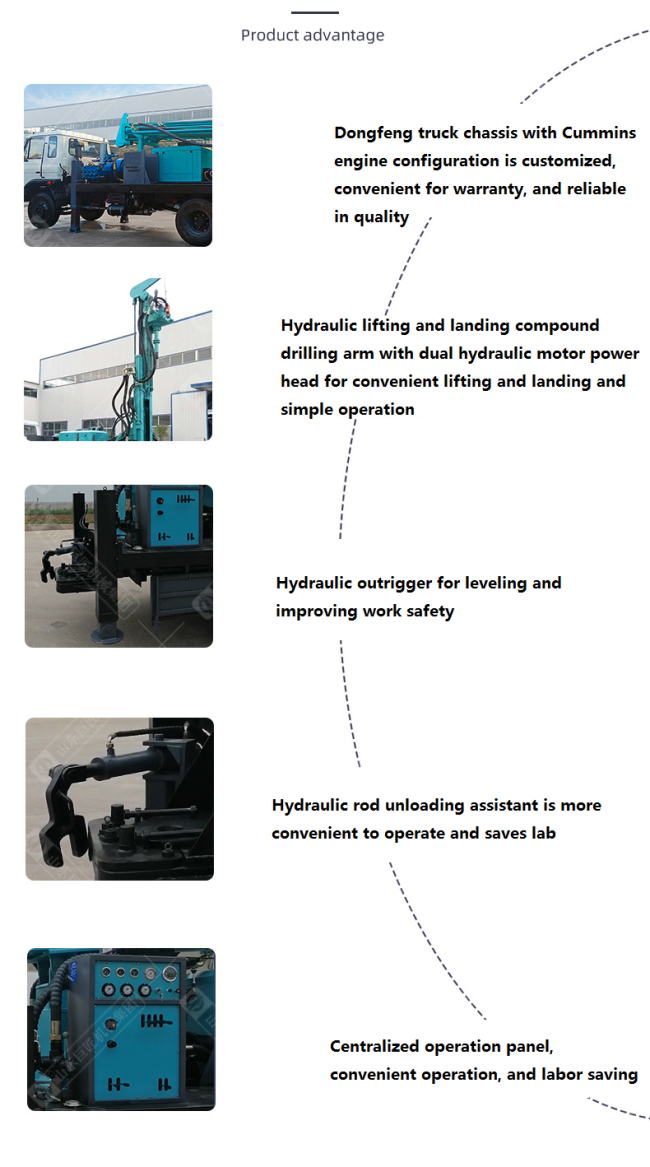

4. Cummins engine is used and Dongfeng truck chassis is configured. The chassis is customized, convenient for warranty, andreliable in quality.
5. Dual hydraulic motor power head for hydraulic lifting and landing composite drill arm, convenient lifting and landing, and simple operation. Hydraulic outriggers are used for leveling and improving work safety. Hydraulic rod unloading aids are more portable and labor saving.

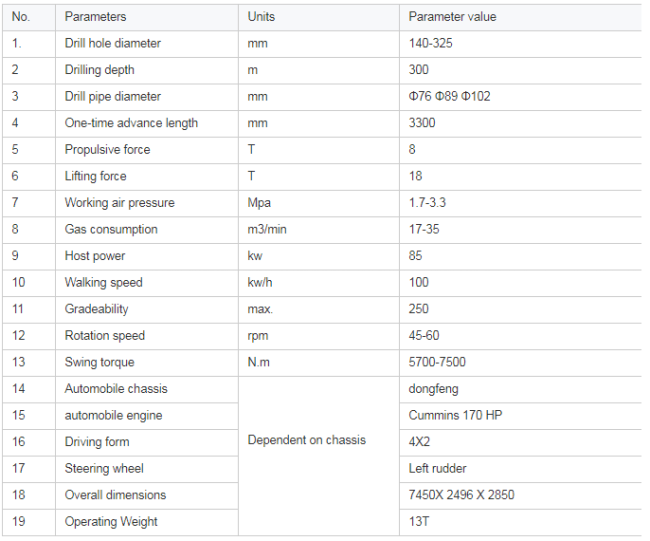

Technical Parameters:
