XDEM Brake Drum Refaceing Machine Brake Drum Boring Machine T8370 Track Pin Press Auto Repair Shop

Price Negotiable
Price: USD4000-6000
MOQ: 1 set
Delivery Time: 10 working days
Brand: XDEM
Product Description

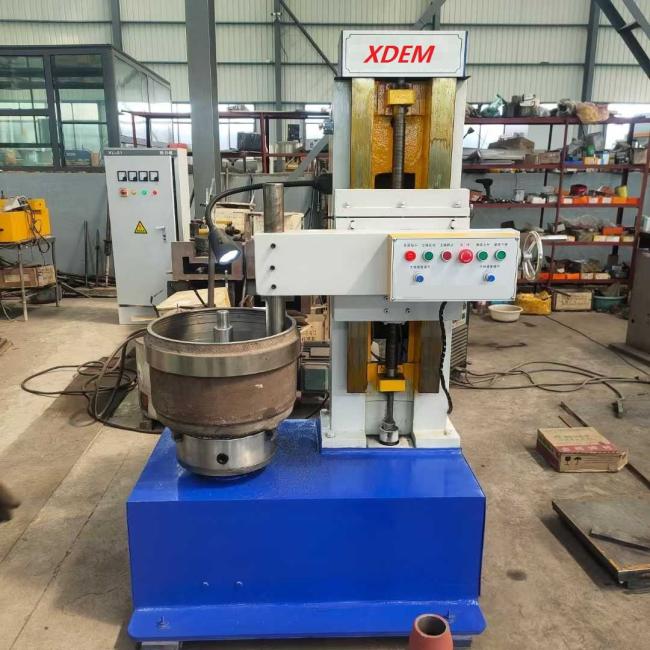

XDEM Brake Drum Boring Machine T8370



It is special for brake drum of large truck/lorry/bus, optional for brake shoe & hubless brake drum.
Whole column design enables, better rigidity than old structure.
Super strong spindle structure, makes boring elliptical deformable/surface hardened brake drum available.

Features:
1. High rigidity. It is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. This model is with very big machining diameter among all the brake drum boring machines in china.
3.Perfect operation system. The quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operation.
4.Applicable for widel car types. It can machine not only brake drums & brake shoes.
Main paramers:
Model
T8370
Range of Processing Diameter mm
180-700
Rotating Speed of Workpiece r/min
24 / 45 / 80
Working Travel of Slideboard mm
400
Lift Motor Power kW
1.1
Spindle Motor Power kW
3
Weight kg
800
Overall Dimensions mm(L x W x H)
1200 x 1000 x 1815
