Parameter

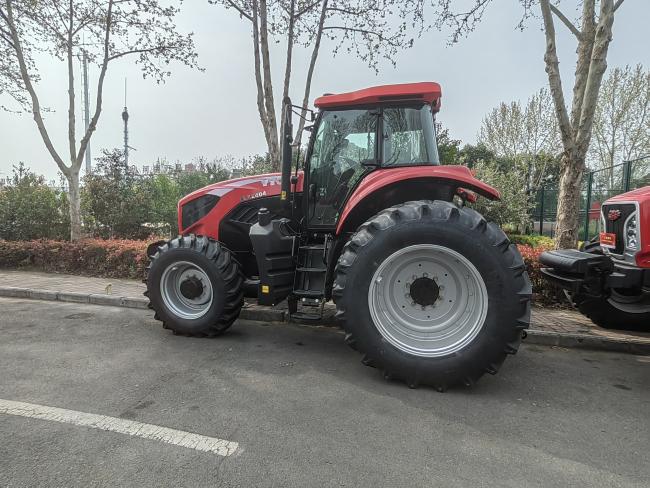

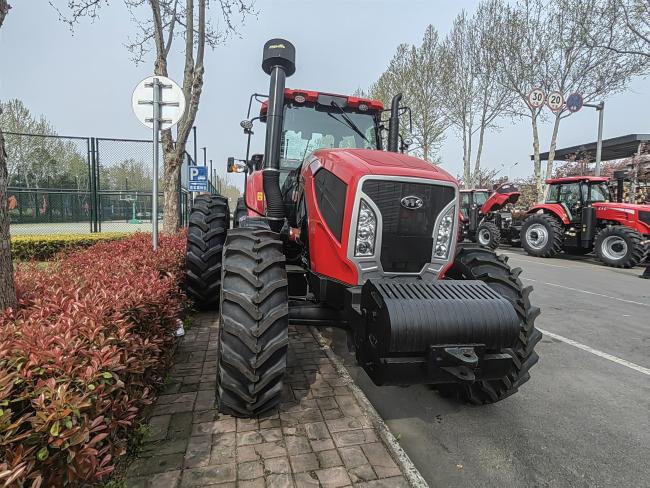

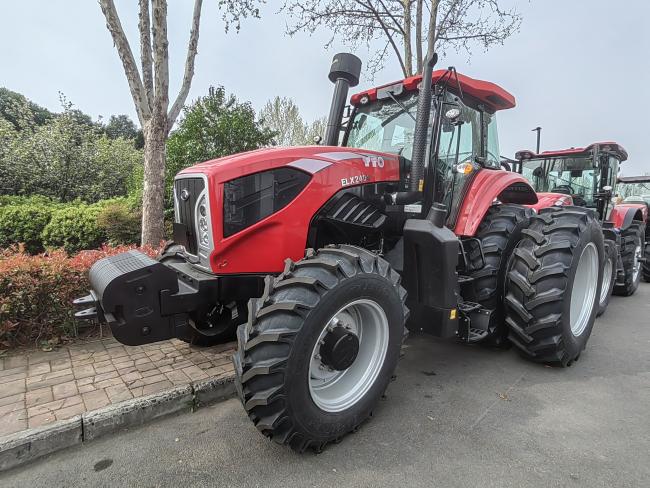

YTO 240hp ELX2404 CheapTractor
|
Model |
YTO-ELX2404 |
||
|
Overall Dimension(L*W*H)(mm) |
5430*2860 /3470(dual rear wheels)* 3490 |
||
|
Min. Operating Mass(with Cab)(Kg) |
8790(dual rear wheels) |
||
|
Max. counterweight mass (front/back) |
810/360 |
||
|

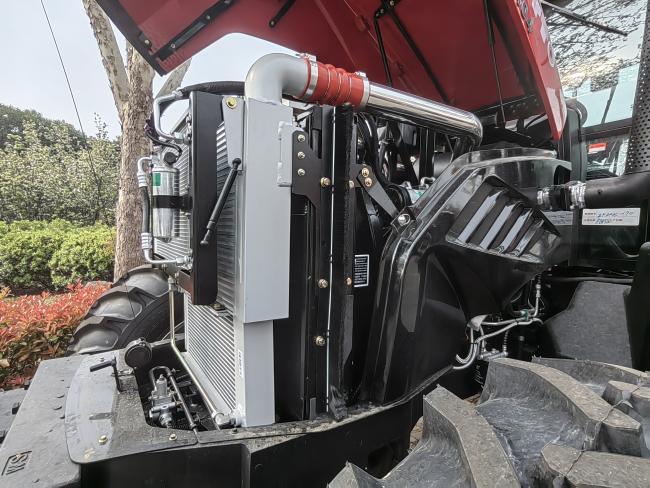

Engine |
Model |
SC9D250G2 |
|
|
Type |
In-line, 4-stroke, turbocharged, air-to-air cooled |
||
|
Displacement(L) |
8.82 |
||
|
Rated Power (kw) |
177 |
||
|
Rated Speed (rpm) |
2200 |
||
|
Transmission |
Gears(F/R) |
12F+4R |
|
|
Forward speed (km/h) |
2.00-36.69 |
||
|
Reverse speed (km/h) |
4.44-14.48 |
||
|
Tire |
Front |
16.9-28 |
|
|
Rear |
20.8-38 |
||
|
Tread |
Front wheels (mm) |
1904-2252(1910) |
|
|
Rear wheels (mm) |
1780-2288(1800) |
||
|
Min. Ground Clearance(mm) |
470 |
||
|
Min. turning radius(m) |
7±0.3 |
||
|
PTO |
Type |
Post-mounted, electro-hydraulic independent control |
|
|
Rotation rate(rpm) |
540/1000 |
||
|
Power(kw) |
150 |
||
|
Tilling depth control method |
position control, floating control |
||
|
Lifting Force |
At 610mm (KN) |
47 |
|
|
Hinge point (KN) |
70 |
||
