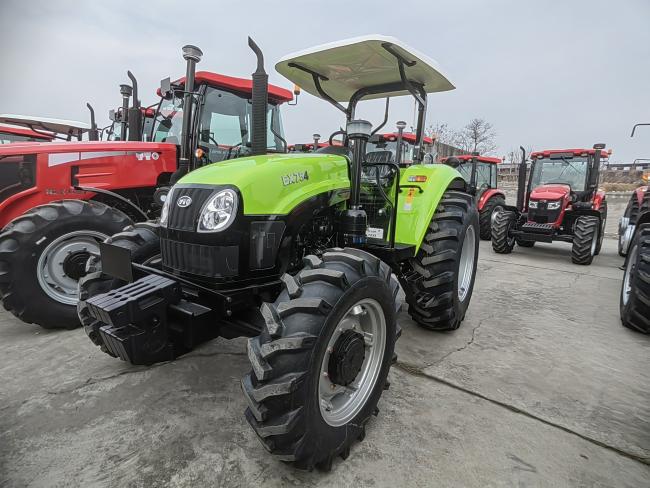

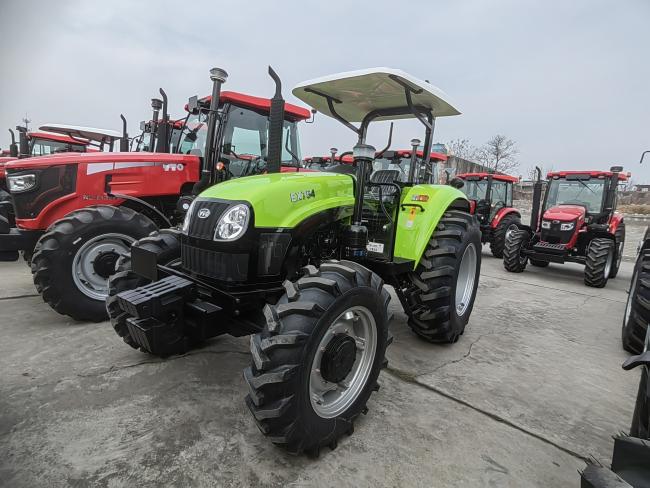

Model

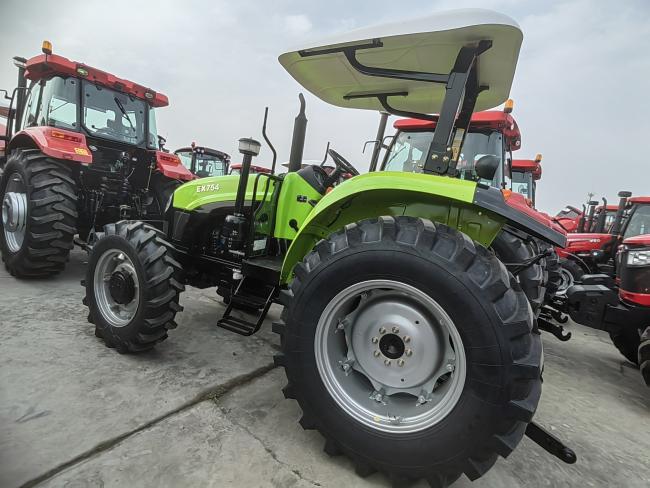

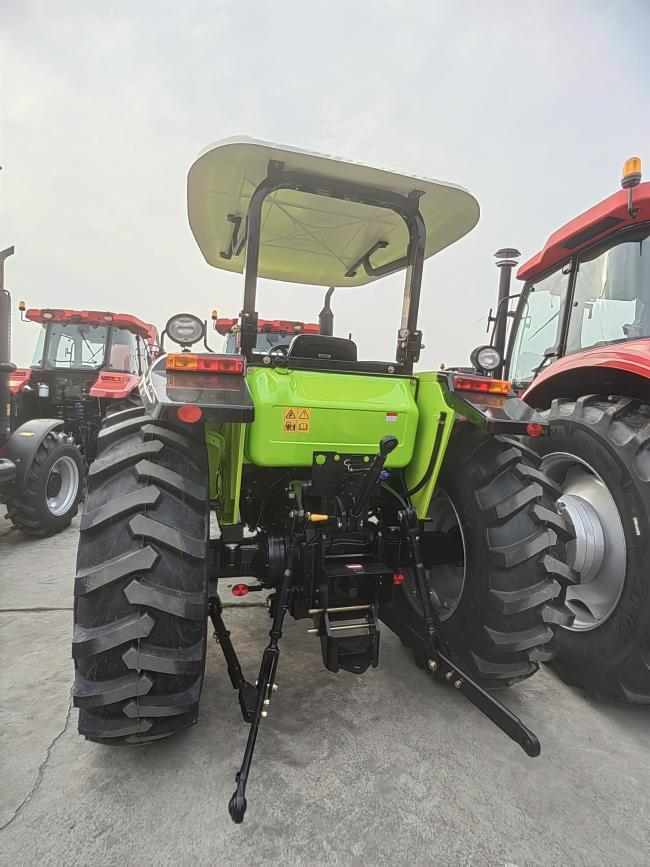

YTO-EX754

Type

4×4

Overall dimensions (LxWxH)(mm)

4250×2145×2650

Wheelbase(mm)

2314

Min. ground clearance(mm)

370

Min. operating mass(with safety stand)(Kg)

3540

Tyre spec., front /rear

11.2-24/16.9-30

Wheel tread, front/rear

1569~2005/1500~2100

Steering

Full hydraulic

Brake

Oil immersed, disk type

Engine Model

LR4A3-23

Engine Type

Four cylinder, vertical, water cooled, four stroke, direct injection combustion

Displacement (L)

4.33

Rated power/speed(Kw)/(r/min)

51.5/2400

Max. torque (N.m)/speed (r/min)

237/1500-1700

Bore x stroke (mm)

105x125

Transmission

Gear shift, forward/backward

12/4

Speed range (Km/h), forward/backward

1.61~26.57/4.19~12.59

PTO power (Kw)

44

PTO rotation speed (r/min)

540/720 or 540/1000

Clutch

11-inch, dry, double action

Three-point linkage category

Three-point linkage category Ⅱ

Tilling depth control mode

Combined draft, position control and floating control

Lifting force(KN)

16

Hydraulic output

1group
