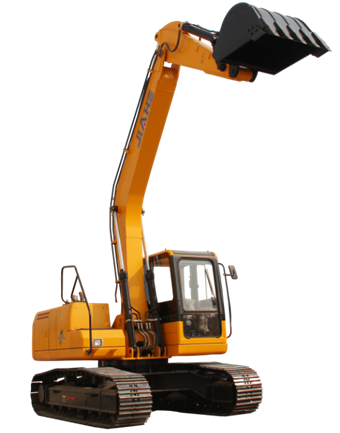

JH135C 85KW 13.5ton Earth Excavation Machine Adopted Swing Motor
Technical parameters of High quality Hunter JH135C Crawler excavator
▲The crawler excavator is a middle type excavator ,which matched YUCHAI engine with strong power.
▲Fitted imported brand main pump and valves . Adopted imported driving motor and swing motor.
▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .
▲The breaking pipeline equipped improve the working performance .Installed luxury cabin with A/C and LCD display etc.
▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance.
| MAIN SEPCIFICATIONS | ||
| Bucket capacity | 0.6m³ | |
| Swing speed | 0~12 rpm | |
| Max. gradeability | 30° | |
| Max. Bucket digging force | 91KN | |
| Max. Arm digging force | 55KN | |
| Engine model | YC4D115(Stage III) | YC4D115(Stage II) |
| Power /Rotation speed | 85kw/2200rpm | 85kw/2200rpm |
| Hydraulic system pressure | 32Mpa | |
| Operation weight | 13500kg | |
| MACHINE SIZE | ||
| Overall dimension (L*W*H) | 7635mm*2500mm*2750mm | |
| Height of cabin | 2750mm | |
| Axle base(Track length on ground) | 2950mm | |
| Track gauge | 2000mm | |
| Min.Ground clearance | 400mm | |
| Swing radius at tail | 2340mm | |
| Width of track | 500mm | |
| WORKING RANGE | ||
| Max. Digging height | 8540mm | |
| Max. Dumping height | 6125mm | |
| Max. Digging depth | 5095mm | |
| Max. Vertical digging depth | 4650mm | |
| Max. Digging radius | 8000mm | |
| Min .swing radius | 2445mm | |
