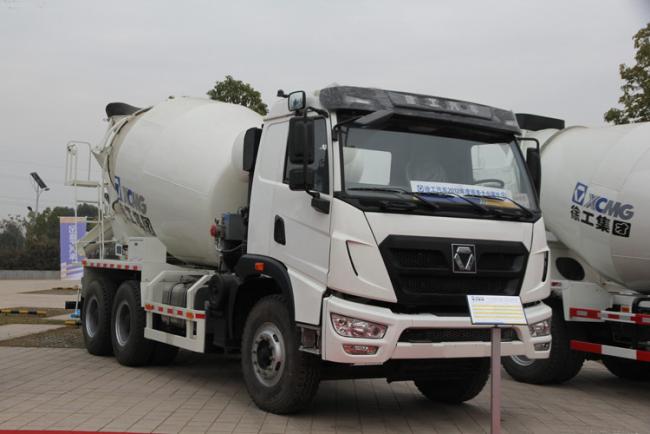

G15ZZ 15m3 14r/Min Transit Mixer Truck Road Construction Machinery
Price:
USD50000-100000
MOQ:
1 set
Delivery Time:
45 working days
Brand:
XDEM
Product Description
XDEM G15ZZ 15m3 Concrete Transportation Tank Truck Cement Mixer
| Type | Model | Unit | G15ZZ |
| Performance of mixing drum | Geometric volume | m³ | 23.5 |
| Mixing volume | m³ | 15 | |
| Maximum diameter of drum body | mm | 2432 | |
| Length of mixing drum | mm | 7009 | |
| Angle of inclination | ° | 10 | |
| Rotating speed | r/min | 0~14 | |
| Charge speed | m³/min | ≥3 | |
| Discharge speed | m³/min | ≥2 | |
| Residue ratio of discharge | % | <0.7 | |
| Range of slump | cm | 5~21 | |
| Hydraulic system | Oil pump | international brand | |
| Motor | international brand | ||
| Reduction gears | international brand | ||
| Hydraulic circuit | Closed type | ||
| Water supply | water tank capacity | L | 450 |
| Way of water supply | Pneumatic | ||
| Complete machine | Brand of chassis | Sinotruck | |
| Chassis model | ZZ1317N3667C1 | ||
| Type of driving | Left-hand drive | ||
| Curb weight | kg | 17600 | |
| maximum gross weight | kg | 31000 | |
| Type of drive | 8×4 | ||
| Wheel base | mm | 1800+3600+1350 | |
| Tyre | 12.00R20 | ||
| Means of power takeoff | Power takeoff by flywheel | ||
| Notice model | XZJ5311GJB1 | ||
| External dimensions | (length×width×height)mm | 11352×2500×4000 | |
| Engine | Model | WD615.96E | |
| Rated power | Kw/r/min | 276 | |
| Displacement | L | 9.726 | |
| Emission standard | GB III |
