Drag Chain Conveyor

Price Negotiable

Price: 5000-12300USD/set

MOQ: 10

Delivery Time: 15-20 days

Brand: hengyang

Product Description

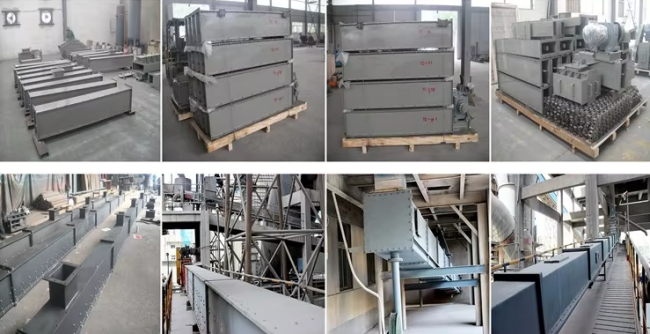

Drag Chain Conveyor is bulk material conveying equipment, which consists of head section with driving device, middle casing, tail section, tension device, as well as scraper chains. MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Technical Details
Type		MS16	MS20	MS25	MS32	MS40
Trough Width		160	200	250	320	400
Allowed Material Density Range		0.2-2.5t/m³
Max.Conveying Distance		120m
Conveying Capacity	speed m/s	0.16	0.16	0.16	0.16	0.16
	capacity m³/h	15	23	36	59	83
	speed m/s	0.2	0.2	0.2	0.2	0.2
	capacity m³/h	18	29	45	74	104
	speed m/s	0.25	0.25	0.25	0.25	0.25
	capacity m³/h	23	36	56	92	130
	speed m/s	0.32	0.32	0.32	0.32	0.32
	capacity m³/h	29	46	72	118	166
