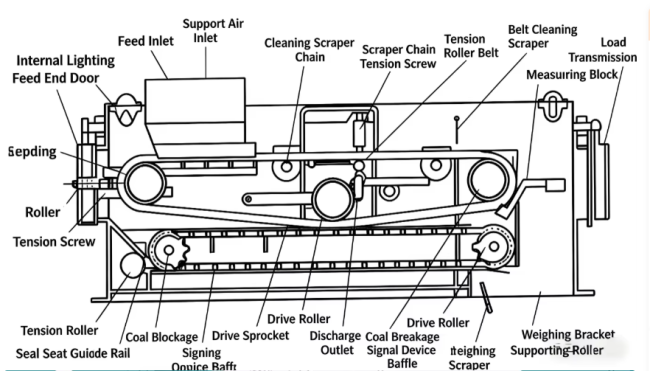

Fully-Enclosed Belt Scale Feeder
The belt constant feeding machine integrates conveying, weighing and automatic flow control. It continuouslyand accurately measures and feeds powder, granular and block materials in industrial production. Equippedwith high-precision weighing sensors and speed detectors, it automatically adjusts the belt speed to stabilizethe feeding flow and total output in real time. Compact in structure, dust-proof and easy to maintain, it is widelyused for automatic batching and quantitative feeding in building materials, chemical, mining and metallurgy industries.
When materials move along the conveyor belt, the weighing sensor detects the material weight inreal time, while the speed sensor measures the belt running speed synchronously. The controllercollects both signals to calculate instant flow and accumulate total weight automatically, realizingcontinuous dynamic weighing for bulk materials.
Technical Details:
|
Specifications and Models
|
Rated coal feed
(t/h) |
Applicable bandwidth
(mm) |
Applicable bandwidth(％)
|
Transmit drive power(kw)
|
Scraper drive power(kw)
|
Fuselage length
(m) |
|
TDGF-40
|
3-30
|
400
|
Dynamic±0.5 |
1.1-3
|
1.1-3
|
2-15 |
|
TDGF-50
|
5-40
|
500
|
1.5-4
|
1.5-3
|
||
|
TDGF-65
|
10-60
|
650
|
2.2-4
|
2.2-3
|
||
|
TDGF-80
|
10-80
|
800
|
3-7.5
|
3-4
|
||
|
TDGF-100
|
30-120
|
1000
|
4-11
|
4-5.5 |
2-8 |
|
|
TDGF-120
|
50-160
|
1200
|
4-11
|
|||
|
TDGF-140
|
50-200
|
1400
|
|
5.5-11
|
