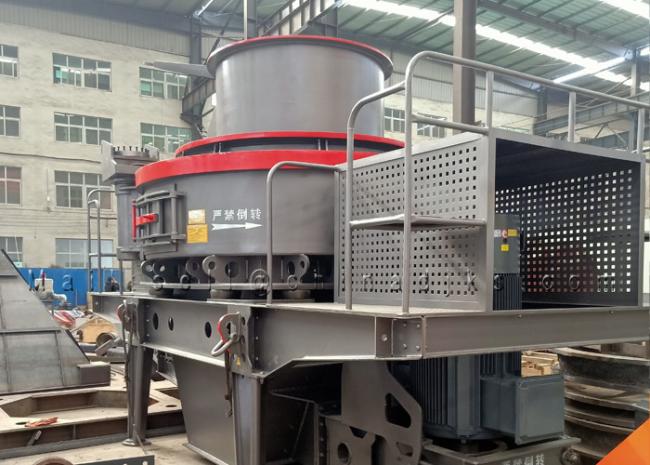

1310 RPM 50mm Feeding 400KW Vertical Shaft Impact Crusher
VSI Shaft Crusher (VSI ROCK Crusher) for Aggregate Crushing Plant
A VSI crusher, or to give it its full name, a vertical shaft impact crusher, can be used for most crushing applications. The principal uses will be in quarries and gravel pits to produce products for roads and asphalt, ballast, manufactured sand for concrete and aggregates for use in the construction industry. But VSIs are also used for the recycling of building material, namely concrete and asphalt and the processing of steel slag. Increasingly in a conservation-conscious world, industries must learn to recycle used materials instead of dumping them. And this in itself can be a profitable industry if they are processed properly with the right machinery.
VSI Shaft Crusher (VSI ROCK Crusher) Technical Details:
| Model | HVSI-7611 | HVSI-8518 | HVSI-9526 | HVSI-1140 | ||
| Capacity (t/h) |
Center and Sides Feeding | 120-180 | 200-260 | 300-380 | 450-520 | |
| Center Feeding | 60-90 | 100-130 | 150-190 | 225-260 | ||
| Max. Feeding Size (mm) | Soft Material | 35 | 40 | 45 | 50 | |
| Hard Material | 30 | 35 | 40 | 45 | ||
| Rotation Speed(rpm) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | ||
| Double Motor Power (kw) | 110 | 180 | 264 | 400 | ||
| Overall Dimension L×W×H (mm) |
3700×2150×2100 | 4140×2280×2425 | 4560×2447×2778 | 5000×2700×3300 | ||
| Weight (t) | 7.8 | 10.3 | 16 | 25.6 | ||
| Vibrating Sensor | Inspection Range: 0.1-20mm/s Continual Adjustment | |||||
| Hydraulic Oil Pump | Motor Power of Double Oil Pump(Kw) | 2×0.31kw | ||||
| Overall Dimension L×W×H (mm) |
820×520×1270 | |||||
| Power of Oil Tank Heater | 2KW | |||||
VSI crushers can also be used as pre crushers in from of a grinding mill in the cement industry.
