Red Color 32r/Min 8t/H Grinding Sand Ball Mill For AAC Plant

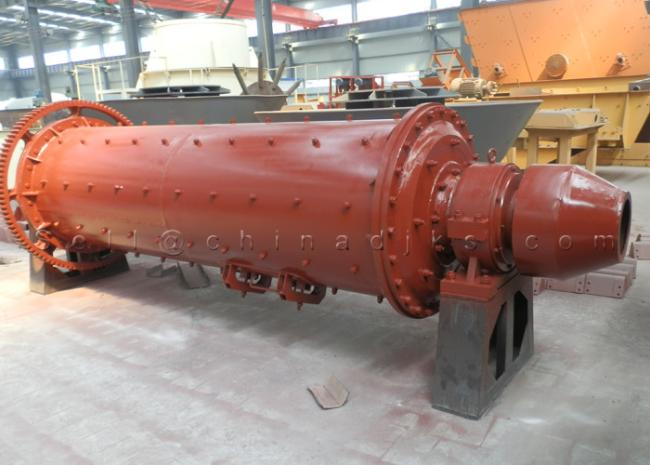

1500*5700 Sand Grinding Ball Mill for AAC Plant

Application of Ball Mill

The ball mill is a key equipment for regrinding. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc. Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.
The ball mill is suitable for the beneficiation and grinding of fly ash, limestone, quartz sand, aluminium powder, coal powder, steel slag, ore, potassium feldspar, iron ore, iron slag, aluminium slag, silicon carbide, alumina, coal gangue and other materials.

Working Principle of Ball Mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Ball Mill Technical Detail:

Shell Diameter: 1500mm

Shell Length: 5700mm

Rotary Speed: 32r/min

Ball load (grinding media): 15t

Feeding size: ≤20mm

Motor: 110kw

Gearbox: JR100

Output size: 0.074-0.4mm

Capacity: 3.5-8t/h

Weight: 24.5t

Shell Material: Q235
