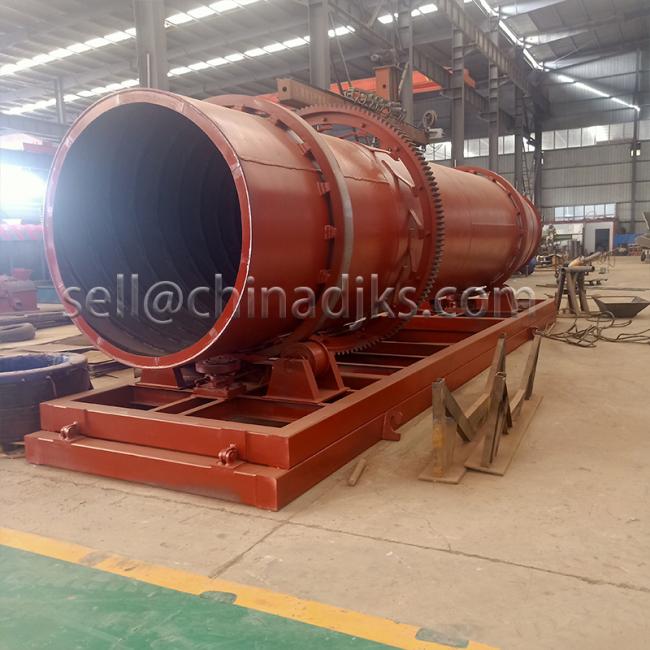

Mounted Stone Rotary Dryer Capacity 100t/H For Stone Washing Plant
Is your existing Rotary dryer a bottleneck in the production sequence? Do you want to improve the quality and speed of your drying in stone washing plant? Do your products require gentle temperatures? Are you looking for drying method that is both efficient and energy saving?
Hengyang Industry Rotary Dryer based condensation drying reconciles all these seemingly conflicting qualities: low temperatures, gentle drying, short drying cycles, quality results, customized air routeing, integrated heat pump technology, energetically closed system.
Mounted Stone Rotary Dryer Features:
1. Feeding moisture:5-50%, finished moisture: 1-3%
2. Feeding temperature:150-350℃, discharging temperature:70-90℃
3. The production capacity will be changed based on product composition and process condition.
Mounted Stone Rotary Dryer Technical Details:
| Specification and model | Output (t/h) | Rotating speed of rotary body | Slope of cylinder | Main motor | Main speed reducer | Weight (kg) | |
| Model | Power | ||||||
| 1.5×14 | 5.0-10 | 3.30 | 2.5° | Y180L-6 | 15.0 | ZL70-40 | 20.5 |
| 1.8×14 | 6.0-12 | 3.10 | 2.5° | Y200L1-6 | 18.5 | ZSY200-40 | 25.2 |
| 1.8×18 | 6.5-13 | 4.14 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 29.0 |
| 2.0×18 | 7.0-14 | 3.30 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 39.6 |
| 2.0×20 | 7.5-15 | 3.30 | 2.5° | YCT250-4B | 22.0 | ZL75-31.5 | 42.5 |
| 2.2×22 | 8.0-16 | 3.30 | 3.5% | Y250M-6 | 37.0 | ZSY250-35.5 | 49.0 |
| 2.4×22 | 10-20 | 3.30 | 2.5° | Y280S-6 | 37.0 | ZSY224-25 | 65.5 |
| 2.6×24 | 12-24 | 3.20 | 2.5° | Y280S-6 | 45.0 | ZL85-40 | 75.6 |
| 2.6×26 | 14-28 | 3.60 | 2.5° | Y280M-6 | 55.0 | ZSY315-31.5 | 83.6 |
| 2.8×24 | 15-30 | 3.85 | 3.0% | Y315S-6 | 75.0 | ZSY315-35.5 | 94.6 |
| 2.8×28 | 16-32 | 3.20 | 2.5° | Y315S-6 | 90.0 | ZSY355-Ⅱ35.5 | 98.6 |
| 3.0×26 | 18-36 | 4.20 | 3.5% | Y315M-6 | 90.0 | ZSY315-31.5 | 98.8 |
| 3.0×28 | 20-40 | 4.30 | 3.5% | Y315S-4 | 110 | ZSY315-45 | 110 |
| 3.0×30 | 25-50 | 3.85 | 3.5% | Y315L1-6 | 110 | ZSY355-35.5 | 115 |
| 3.2×26 | 25-50 | 3.45 | 2.5° | Y315M-4 | 110 | ZSY450 | 130 |
| 3.2×30 | 28-35 | 3.45 | 2.5° | Y315L2-6 | 132 | ZSY355-35.5 | 145 |
| 3.4×26 | 25-50 | 3.25 | 2.5° | Y315M1-6 | 132 | ZSY355-35.5 | 158 |
| 3.4×30 | 28-55 | 3.18 | 3.0% | Y355M1-6 | 160 | ZSY400-35.5 | 168 |
| 3.4×34 | 30-60 | 3.20 | 3.0% | Y315M-4 | 185 | ZSY400-31.5 | 182.5 |
| 3.6×28 | 35-70 | 3.18 | 2.0° | YCT400-4A | 160 | ZSY500-45 | 175 |
| 3.6×30 | 40-80 | 3.18 | 2.0° | Y315M-4 | 185 | ZSY400-31.5 | 178 |
| 3.6×34 | 45-90 | 3.18 | 2.0° | Y355S2-4 | 200 | ZSY500-45 | 189 |
| 3.7×31 | 50-100 | 2.00 | 2.5% | YKK355-4 | 185 | ZSY500-35.5 | 189.5 |
| 3.8×30 | 50-100 | 3.18 | 2.5° | Y355S2-4 | 200 | ZSY500-35.5 | 210 |
| 4.0×30 | 65-130 | 3.18 | 2.5° | Y355SL-6 | 220 | ZSY500-35.5 | 221 |
| 4.0×34 | 70-140 | 2.50 | 3.0% | YJS355L-6 | 250 | ZSY560-40 | 235 |
| 4.2×32 | 80-160 | 2.50 | 3.0% | YJS355L-6 | 250 | ZSY560-40 | 250.5 |
| 4.2×36 | 85-170 | 2.09 | 3.0% | YKK400-4 | 400 | ZSY630-45 | 260 |
| 4.3×33 | 85-170 | 3.40 | 3.2% | Y400-4 | 450 | ZSY630-45 | 256 |
| 4.5×30 | 90-180 | 3.40 | 2.5° | Y400-4 | 450 | ZSY630-45 | 279 |
| 4.5×35 | 100-200 | 2.20 | 2.5° | YJS500-6 | 500 | ZSY630-45 | 297.0 |
