Wireless WiFi 10.5x30mm Night Vision Monoculars Spotting Scope
Wireless WiFi 10.5x30mm Night Vision Monoculars Spotting Scope

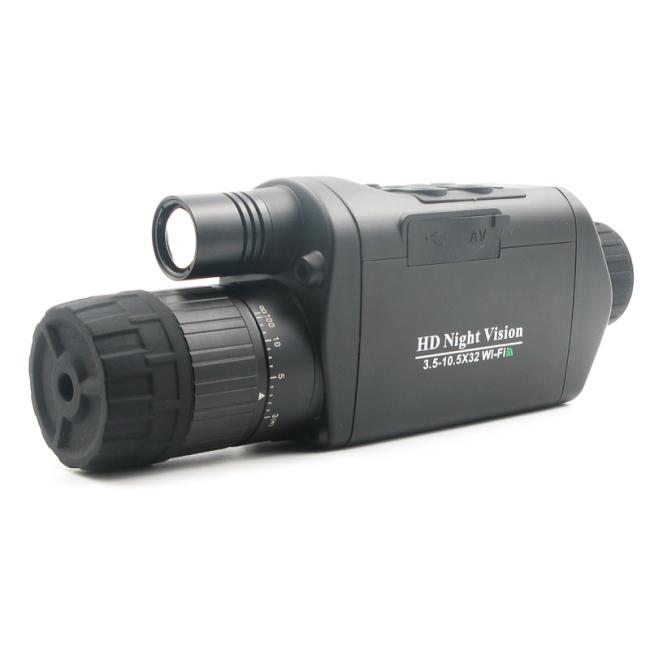

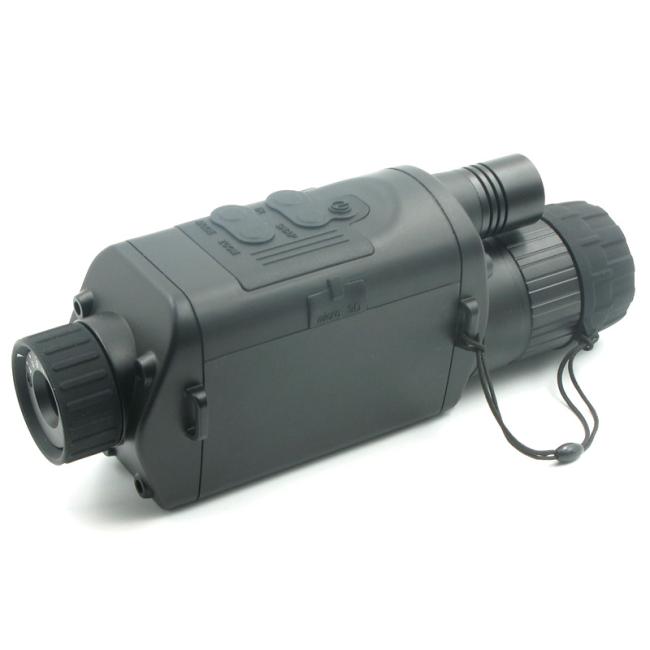

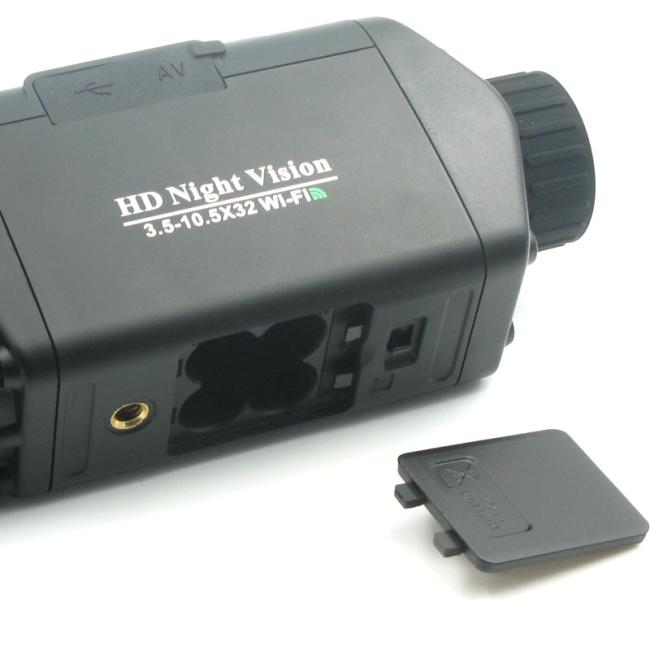

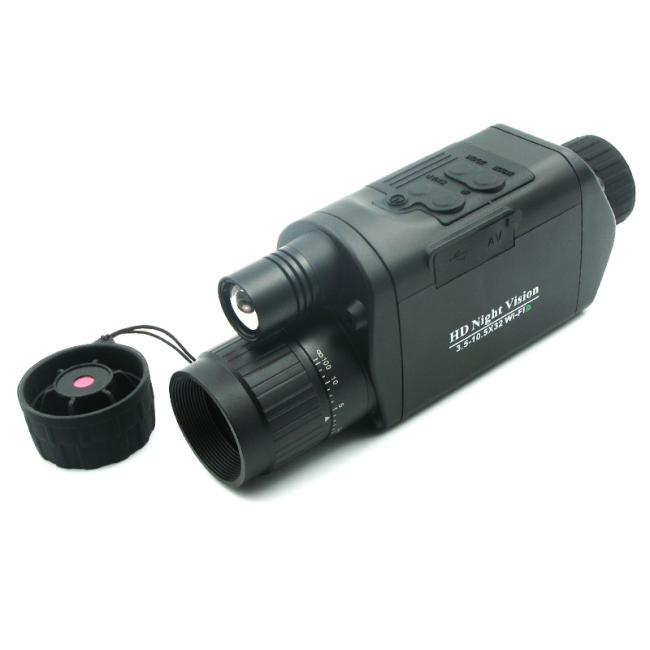

10.5x30mm Night Vision Monocular with Built in Camera Digital Zoom magnification 3X Wireless Wi-Fi connection
3.5x30 Night Vision Monocular (10.5x30mm)
Wireless Wi-Fi connection 4 modes (Capture, Video, Playback, Setting)
Your night vision scope is a professional specification night vision device designed to provide enhanced viewing in all low light conditions including total darkness. This night vision scope operates by amplifying existing light using an electro-optical system.
The is a passive starlight device; it does not require any artificial light source, although an artificial infrared light will greatly enhance the scope’s effectiveness in all facets of operation. The Nightfall is constructed using an electro-optical intensifying tube contained in a water-resistant composite housing and is rugged enough for extreme field conditions.

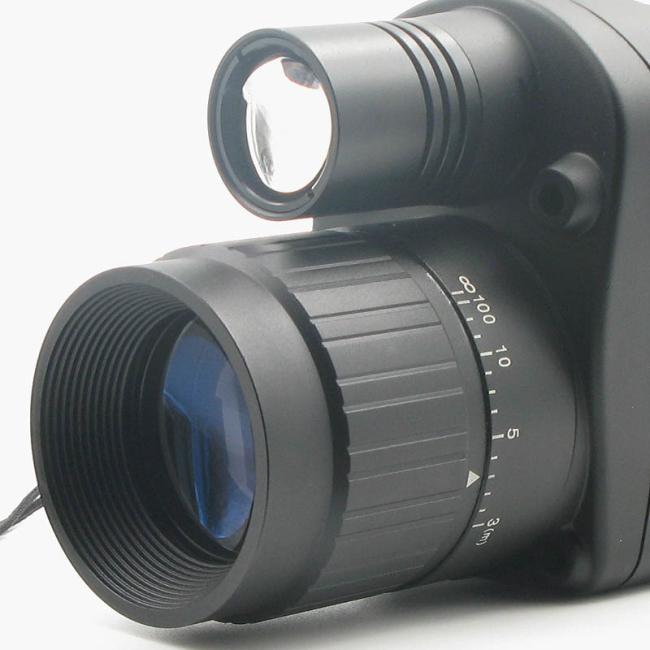

Objective Lens Diopter
Direct your Nightfall at an object at a distance of approximately 100yds. Adjust the eyepiece and objective lens diopter setting to focus the unit by rotating the eyepiece.
IR Illuminator
Equipped with a power-saving PULSE IR illuminator, this night vision scope operates by amplifying existing light using an electro-optical system.
Quick Power-Up
If the subject to be viewed is in a completely dark area, including low-light shadow areas, activate the infrared illuminator by pressing the “IR” button located next to the “ON” button.
Specification:
| Model | BNV-70720P |
| Catalog | Function Description |
| Optiacal performance | Magnification power 3.5x and31x (MAX10.5x) |
| Digital Zoom 3 steps magnification, Max 3x | |
| Angle Of View 9° | |
| Objective Aperture 30mm | |
| Exit Pupil Distance 15mm | |
| F# for Objective lens 1.2 | |
| 3m~∞ in daytime (colarful); Viewing in the darkness up to 200M (monochrome) | |
| Diopter adujustment +100°~ -400° | |
| Video Output | 320x240 resolution TFT LCD |
| OSD menu display | |
| CVBS always output with VGA resolution | |
| USB UVC output | |
| Imager | CMOS High-sensitivity Sensor |
| Size 1/3'' | |
| Resolution 1280X720 | |
| IR LED | 3W Infared LED with 850nm |
| Micro SD Card | Support SDHC 4GB~32GB SD Card |
| USB Device | UVC class |
| MSC class | |
| Hardware Buttons | Power on/off |
| Snap | |
| Mode selection | |
| Zoom | |
| IR switch | |
| Operation | Preview |
| Record H.264 file in SD storage | |
| Capture JPEG file in SD storage | |
| Playback media file from SD storage | |
| Power | External power supply - DC 5V/1A |
| 4 pcs AA battery 4.5V-6V | |
| Battery life: 3 hours working time with IR off | |
| Battery low warning | |
| Wireless LAN | 802.11 b/g/n |
| Video transfer by peer-to-peer connection | |
| Video resolution 1280x720 | |
| OS: Android & IOS | |
| System | 4 modes (Capture, Video, Playback, Setting) |
| Single frame Image Capture | |
| Video image Record | |
| Playback image | |
| Delete image | |
| 5 level IR switch | |
| SD card format | |
| Power save (1 min/ 5min/ 10 min/ NO) | |
| TV output format (NTSC / PAL) | |
| Flicker (50 / 60 Hz) | |
| Show version | |
| Size | 190mmx64mmx54mm |
| Net weight | 320g (without battery) |
