2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
2-24 Core GYXTW Uni-Tube Outdoor Fiber Optic Cable for Communication
Description:

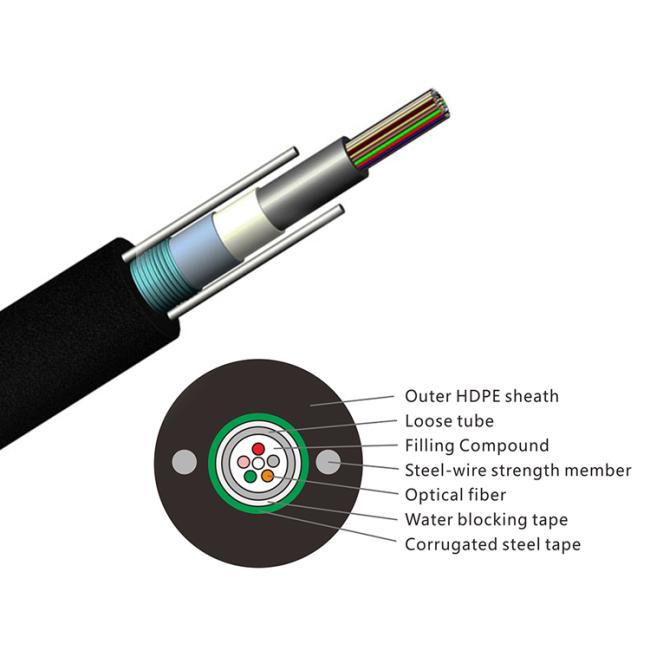

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof.
6. Two parallel steel wires ensure tensile strength.
7. Small diameter, light weight and friendly installation.
8. Long delivery length.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:

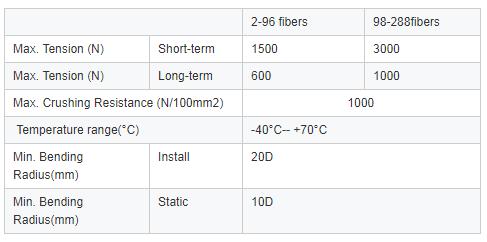

Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
