12 Core GYXTW Fiber Optic Cable Armoured Central Tube Outdoor Single Mode
12 Core GYXTW Fiber Optic Cable Armoured Central Tube Outdoor Single Mode
Description:

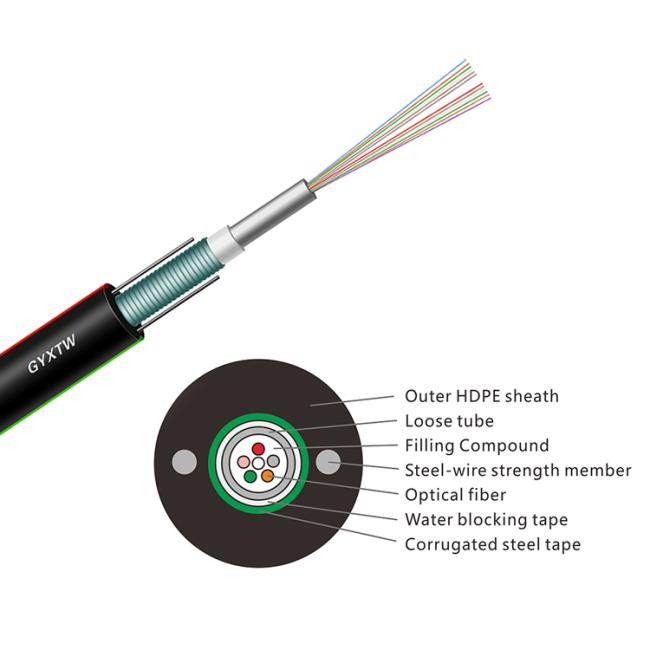

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof.
6. Two parallel steel wires ensure tensile strength.
7. Small diameter, light weight and friendly installation.
8. Long delivery length.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Nominal Diameter | 10 | 11 | 12 | 13 | 14 | 16 |
| Cable Weight(kg/km) | 90 | 120 | 140 | 170 | 190 | 210 |
| Fiber Type | G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5 | |||||
| Max .Allowable Tension | Short Term :3500N | |||||
| Long Term:100N MAT:3.5KN RTS:9.0KN | ||||||
| Wind Speed: ≤30m/s Ics:0mm | ||||||
| Min.Bend Radius (mm) | Dynamic:20D Static:10D (D: Cable diameter) | |||||
| Temperature Range | -40°C~+70°C(Transportation& Storage) | |||||
| -35°C~+65°C(Installation) | ||||||
| -40°C~+70°C(Operation) | ||||||
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -40~+70 |
