12 Core Male MPO Trunk Cable Multimode MTP MPO Patch Cord
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
Negotiable
Brand:
KNOFC or OEM
Product Description

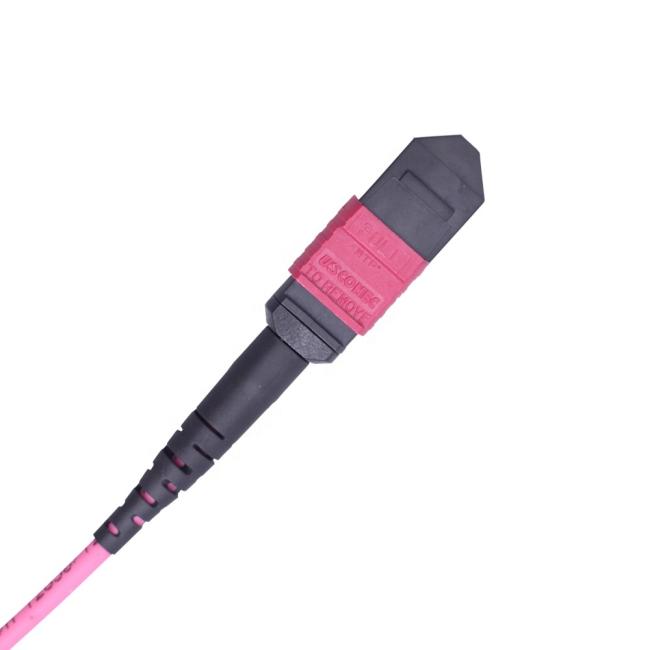

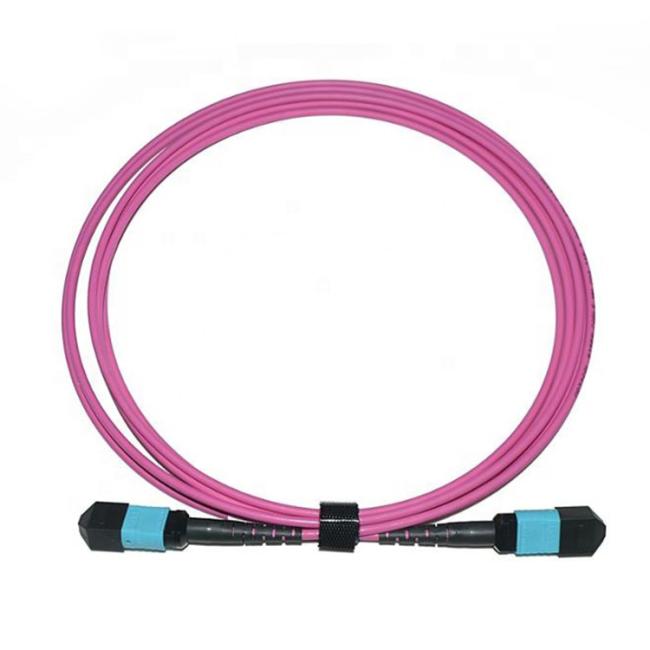

12 Cores Male MPO Trunk Cable Multimode Fiber Optic MPO Patch Cord
Description:
MPO/MTP patch cord are designed to high density multi fibers solutions,fit for different installation environment and easy to in-stall between the trunk line,data centers and buildings.Our patch cord are 100% factory tested and can meet your special requirements.All the MPO/MTP connects comply with Telcordia GR-1435-Core Compliant.
Features:
- High performance in IL&RL 100% pre-terminated tested.
- Supports 40G and 100G network applications.
- Jacket material: LSZH, OFNR, OFNP available.
- Jacket color: Aqua,Yellow or customize.
- Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Application:
- Active dvice termination
- Telecommunication networks
- Metro
- Local Area Networks(LANs)
- Data Processing networks
- Test Equipment
- Premise installations
- Wide Area Networks(WANs)
Connector Requirements:
| Performance level | Standard | Elite |
| Connector | Mode | Endface | IL(max)(dB) | RL(max)(dB) | IL(max)(dB) | RL(max)(dB) |
| MPO/MTP | SM | PC | ≤0.75 | ≥45 | ≤0.35 | ≥50 |
| MPO/MTP | MM | PC | ≤0.70 | ≥25 | ≤0.35 | ≥25 |
