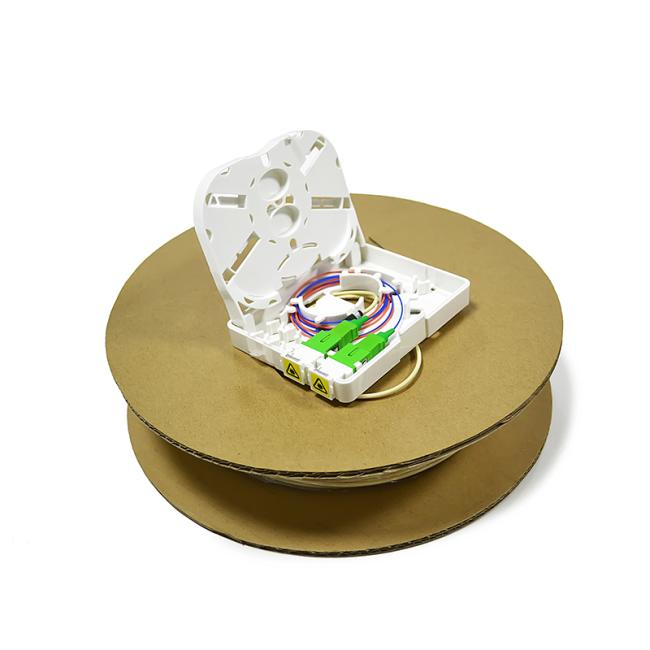

Fiber Optic Faceplate 2 Port FTTH Fiber Optic Wall Mount Termination Box
Fiber Optic Faceplate 2 Port FTTH Wall Terminal Box
Description:
The 86 type optical fiber panel box produced by our company is made of advanced production technology. The surface gloss of the box is uniform and beautiful, the material is strong and durable, the interior structure is reasonable, and it can fully meet the construction requirements of 1 in 1 out, 1 in 2 out / 4 out, 2 into 2 out / 4 out.
Features:
1. Applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments;
2. The clasp design of the cover has greatly reduced the installation strength;
3. It is very thin and matches with other 86 panels in homes, and also meet the open or concealed cabling for optical cables;
4. Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users,all SC and SC/FC are usable;
5. The big-diametered wrapping post in the box protects radically in an omnibearing way.
6. Easy for management and operation .
Technique Performance:
| Product Name | 86 type optical fiber panel box |
| Product Type | KN-86 2 in 2 out |
| Adapter type | SC/PC SC/APC |
| Color | White |
| Accessories | 2 customized heat-shrinkable tubes |
| Size | 8.7x8.7x2.1CM |
| Weight | 47g |
| Application | Solve the user terminal connection problem and also avoid the connection between the conventional cable (G657) and the patch cords(G652D) |
| Environmental Test | High and Low temperature cycle - 25 ℃ ~ + 80 ℃ 48 h ultraviolet irradiation UV365 24 h |
