FTTH SM SX HDPE Optic Fiber Optic Jumper SC APC Armored

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: Negotiable

Brand: KNOFC or OEM

Product Description

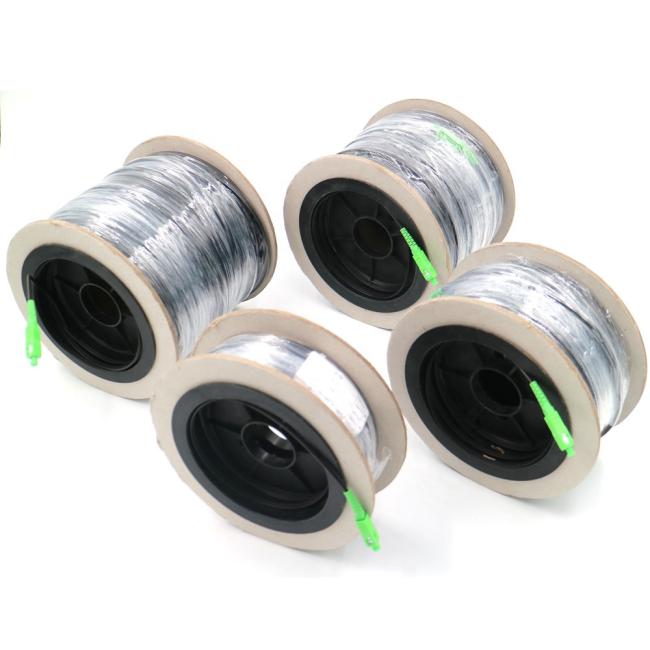

FTTH SC APC Armored Black 9/125 SM SX Optic Fiber Optic Jumper

Description:

FTTH Patch cord or pigtail, refers to the drop cable ends with a connector plug, used to achieve optical active connection, also be made into a single head pigtails, and Flexible Splice, Quick connect and other products combined application, Connector types are SC-PC(APC) and FC-PC(APC) , For FTTH project corridor boxes, drop cable distribution boxes, FTTH fiber boxes and other forms of installation.

Features:

Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
Can be installs without special tooling.
Threaded style coupling.
Provides bend protection for installation and long term use.
Faster network roll out and customer installations.
100% tested assemblies built in a controlled environment.
Lower cost deployment by utilizing plug and play solutions.
Custom built solutions with quick turnaround times.

Application:

Fiber optic communications in harsh outdoor environments.
Outdoor communication equipment connection.
FTTx ISP Project.

Specification:

Product Name	SC APC Armored Patch Cord
Length	1M/5M/10M/15M/20M
Connection Style	Simplex
Fiber Type	G657A2
Typical Insertion Loss	≤ 0.20 dB
Maximum Insertion Loss	≤ 0.30 dB

Connector technical data:

Items	Values
Connector Type	SC/APC
Insertion Loss	<0.3dB
Return Loss	>60dB

Cable technical data:

Item	Values
Cable Type	Outdoor FTTH Drop Cable
Sheath Material	LSZH
Messenger Wire	1.0±0.02mm
Steel Wire	0.5±0.02mm
Fiber Type	G657A1 / G657A2
Cable Diameter	(2.0±0.1)x(5.0±0.2)mm

Cable Paremeters:

Cable type	Diameter(mm)	Weight (kg/km)	Tensile strength Long/short term (N)	Bending radius Dynamic/static (mm)	Storage temperature ( ℃ )
GJYXCH-1~4	2.0*5.0mm	22	300/600	20D/10D	-20~+70
