HDPE GYXTW Central Tube Aerial Cable 6core SM Steel Wire
GYXTW Cable Central Tube Outdoor Aerial 6 Core SM Fiber Optic Cable
Description:

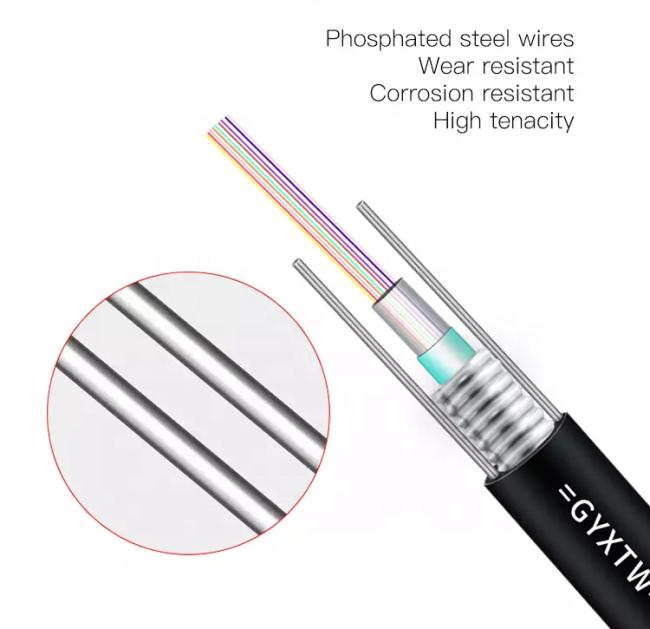

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics:
- Low dispersion and attenuation.
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
- Double-jacket structure make cable have nice properties of moisture resistance and crush resistance.
- With small cable diameter, light cable weight, easily to lay.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -40~+70 |
