Single Mode 12fO ASU80 Optic Fiber Cable 80m For Span
Price:
Negotiable
MOQ:
1km
Delivery Time:
8-10 working days
Brand:
KNOFC
Product Description
Singel Mode Cabo Fibra Optica 12 FO ASU80 Fiber Optic Cable For Span 80m
Description:

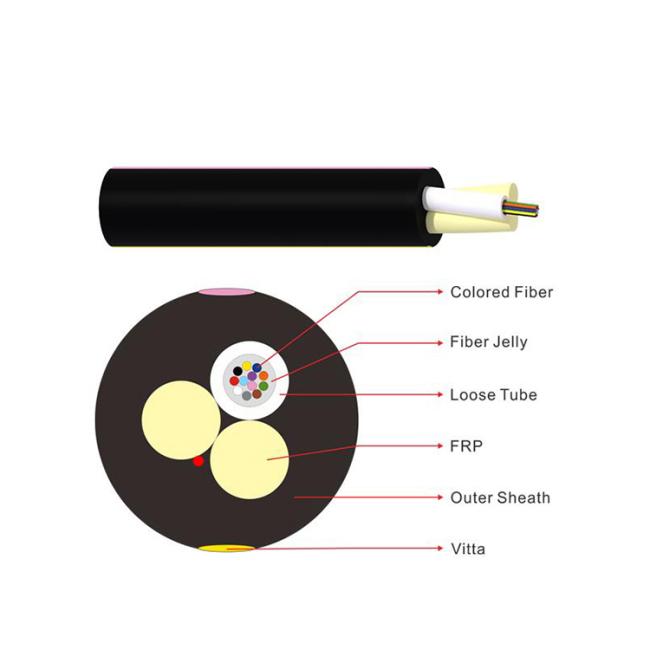

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.
Characteristics:
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· PE/LSZH sheath protects cable from ultraviolet radiation.
· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Light weight and small size convenient to laying.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:
| G.652.D | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | |||
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) |
Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) |
Storage temperature ( ℃ ) |
| ASU80-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
