0.75 Kw Italy Gear Motor For Feeding Line Poultry Farm System
Italy Gear Motor For Feeding Line Poultry Farm System From AGRIESO Feeding Line Motor 0.75 KW

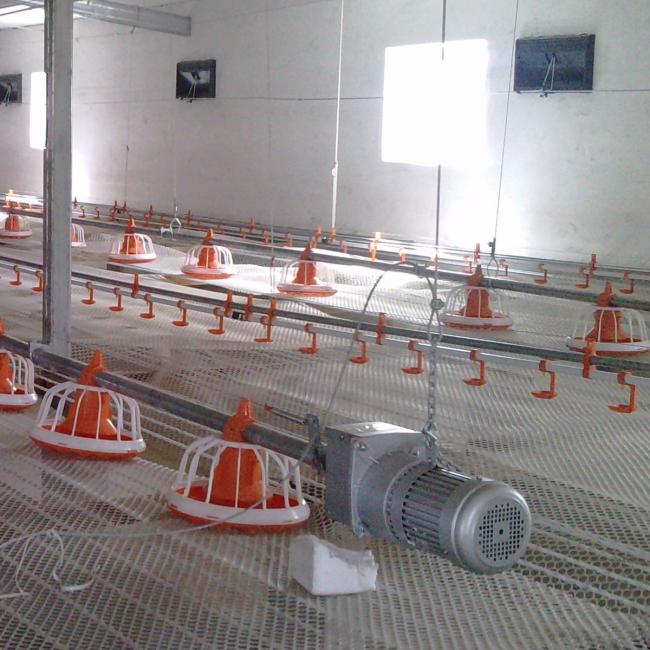

Broiler automatic feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to tansport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop
Diameter of conveying pipe: φ45mm
Material: hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2
Helical spring auger from South Africa feeding capacity: 450kg/h
Material level sensor from Germany time delay range 0 to 2 hours
|
|
Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to tansport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor's direction which give the oder to motor to make it working or stop.
Feed pan
Big herdsman type feed pan/Valco type feed pan.
All is New PP material
Hopper:
Bin volume: 115 L 200L, material: hot-dip galvanized sheet
material thickness: 1mm
Delivery pipe&Auger
Feed pipe material:hot dip galvanized steel pipe(275g/m2 zinc coating)
Conveying pipe:3m with 3 pan or 3m with 4 pan
Diameter:45mm, Thickness:1.2mm
Auger--imported from South Africa.
Feeding ability:400kg/h
Motor:
China motor
Power: 0.75kw voltage: 380v, frenquency:50hz, 3phases
Transmission speed: 450kg/h
Feed storage system:
Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to ensure the good condition of feed.
Electric control system
