6 In 1 PVC Profile Extrusion Machine PVC Corner Bead Extrusion Line With Punching Holes

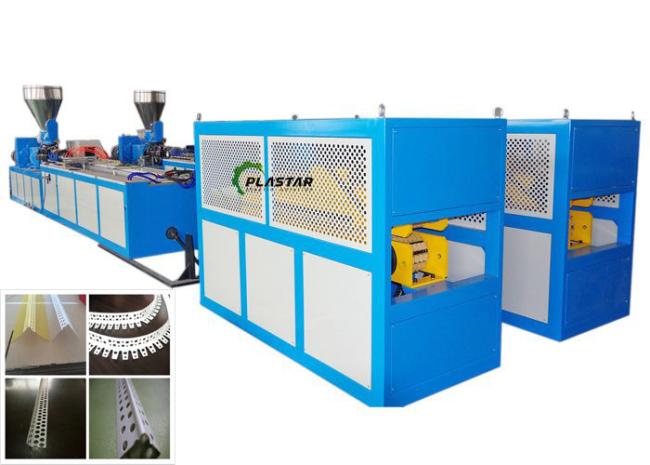

6 in 1 Plastic PVC Corner Bead Extrusion Line with Punching Holes
PVC Angles have a wide range of uses, as corner guards, wall protection, stair nosing, hiding screw holes and many more applications around the home and commercial premises.
This extrusion equipment is designed for extruding PVC corner bead, angle trim, which is a kind of PVC profile particularly designed for protecting corners of wall, door and window. As a replacement for the traditional methods to repair wall corner, it has been extensively used for construction, decoration, and wall protection. Upon clients' request, we can equip punching, printing, coding or other additional equipment for the PVC profile extrusion line.
Applications:
PVC beads, PVC L beads, furniture edge banding, etc
Technical Parametes:
| Model | Mold | Max extrusion volume | Motor power | Heating power |
| SJSZ51 | one mold with 4 cavities | 120kg/h | 22kw | 12kw |
| SJSZ65 | one mold with 6 cavities | 280 kg/h | 37kw | 15kw |
The PVC Corner Bead Extrsuion Line is composed by following parts:
| No. | Item |
| 1 | Spring feeder |
| 2 | SJZ65/132 Conical Twin Screw Extruder |
| 3 | Extrsuion mold |
| 4 | Vacuum Calibration Table |
| 5 | Haul off machine |
| 6 | Punching & cutter machine |
| 7 | Stacker |
| 8 | Crusher&pulverizer for recycling the waste |

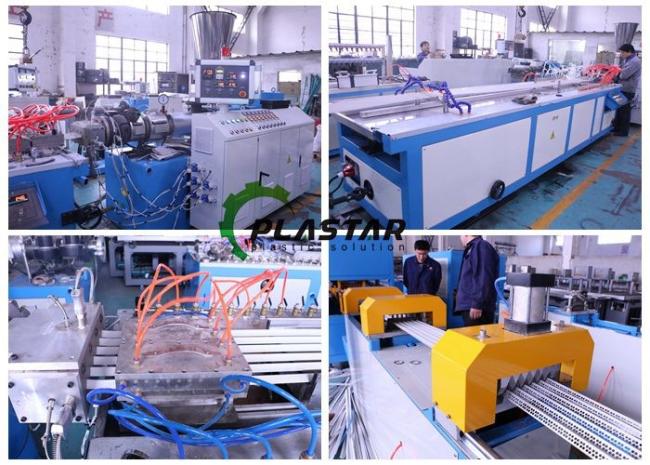

Machine pictures for reference:
