Waste HDPE LDPE PP PE Films Plastic Washing Recycling Machine 1500kg/H
Waste HDPE LDPE PP PE Films Woven Bags Nylon Plastic Crushing Washing Recycling Machine
Purple Horn machinery is a company specialized in the production of waste plastic recycling machines, our recycling machines can recycle not only the PET,PP PE. ABS, PC, Nylon material, such as PE film, PP nylon, LDPE agriculture film,LLDPE shrink film,PP woven bags(big bags),or rigid plastics(bottles,barrles,pipes...) etc.
Recycling line main capacity list for reference:
| Model | Capacity(kg/h) | Power consumption (kw) | Water consumption (ton/h) | Manpower | Humidity Content |
| PL-300 | 300kg/hour | 125kw | 3ton/h | 3 | ≤5% |
| PL-500 | 500kg/hour | 260kw | 4-5ton/h | 3 | ≤5% |
| PL-1000 | 1000kg/hour | 395kw | 6ton/h | 4 | ≤5% |
Remark: we can customize the washing line according to client's material and product requirement.
Main Progressing Flow(1000KG/H pp pe film standard system):
---Belt conveyor: conveying dirty plastic film or bag into crusher. If too much scrap iron, metal detector may be needed.
--- Crusher: can crushing with water, cut plastic film or bag into small pieces
--- Screw loader: load film pieces into the next step
--- High-speed washing machine: Washing out the sand, soil and loading the material
---Washing tank: separate the sand, soil and other dirties
---Squeezing dryer machine: Remove the water from the material
Ability
Thanks to innovative washing technology and high quality performance. our recycling system removes the most difficult contaminants from PP/PE/PS/ABS plastic materials. Cleans post consumer film, agricultural film, Rigid bottle/drum, Battery case, WEEE plastic and even heavily contaminated woven bag fibre material. Provides almost 100% purity washing results.
Stability
Our recycling system is available for 24 hours working non-stop operation. Optimized design and top brand components to each module. Which could minimize the downtime ratio and save the maintenance time. This ensures the maximum availability and highest productivity for user.
Efficiency
Our recycling system is designed in all details for efficiency improving. The modular design could simplifies the planning and accelerates the implementation. The system have very low consumption values for electricity, water and chemicals. The operating costs and maintenance costs are absolutely reduced. Consistently the lowest investment costs and highest value creation!
Modularity
Our recycling system is a flexible modular system. All elements required by any customer for different application could be combined freely. This design reduces planning, construction and assembly time effectively. And it's possible to adjust the system according to technological modification and market changing. This make the investment future-proofing!
Turnkey service
Our recycling system is a flexible and customer-oriented recycling solution. The proposal is integrated and engineering project. Building design, overseas installation, commissioning and training are available. Machine warranty with spares in stocking and in-time delivery. Consistently quick and careful service in pre-sales and after-sales process.

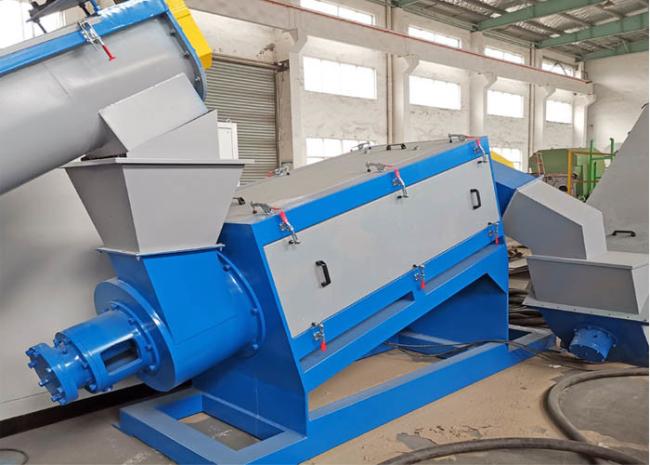

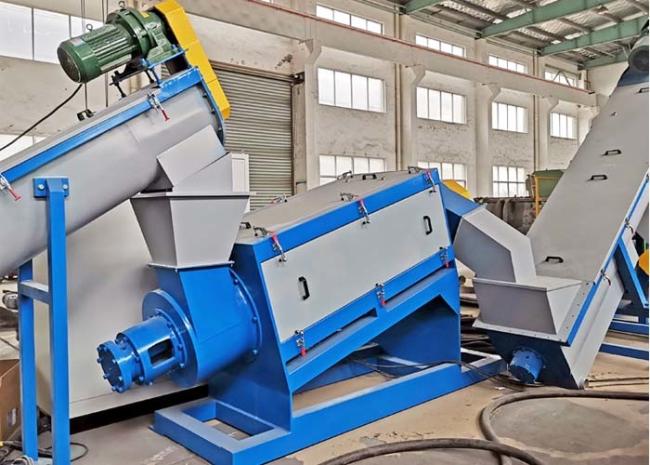

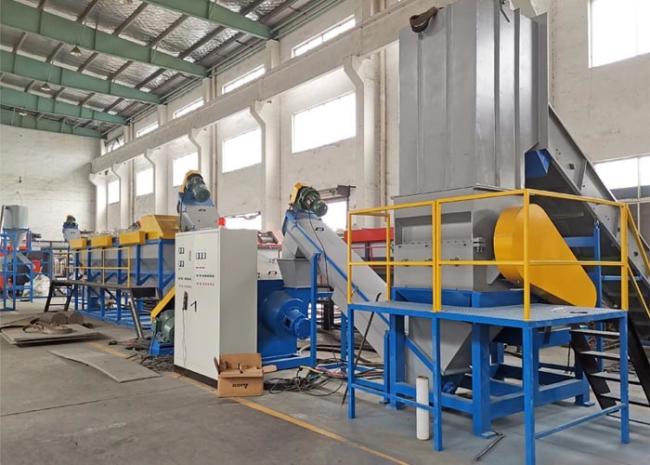

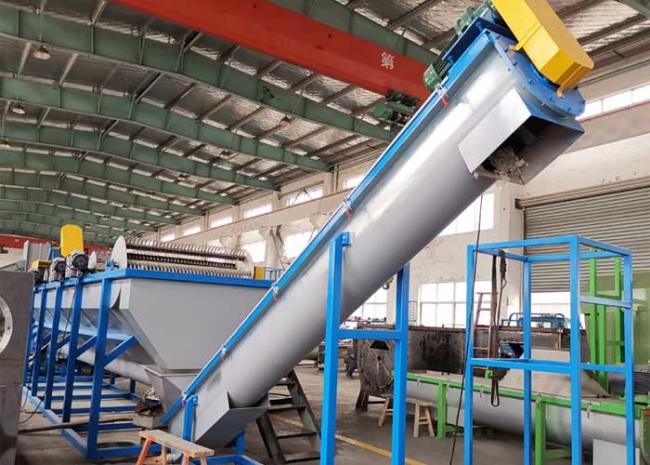

Our recycling line pictures for reference:
