Piezo Buzzer Element 14mm 95dB 12V Electronic Alarm Buzzer
Price:
negotiable
MOQ:
1000PCS
Delivery Time:
10~15days
Brand:
TAIMI
Product Description
Piezo Buzzer Element Magnetic Transducer 44mm 95dB 12V Electronic Alarm Buzzer
Electronic Alarm buzzer Specifications:
|
Rated Voltage |
(VDC) |
12 |
|
Operating Voltage |
(VDC) |
3~16 |
|
*Rated Current |
(mA) |
≤12 |
|
*Sound Output at 10cm |
(dB) |
≥95 |
|
*Resonance Frequency |
(KHz) |
4.0±0.5 |
|
Tone |
|
Continuous |
|
Operating Temperature |
(℃) |
-40~+85 |
|
Storage Temperature |
(℃) |
-40~+90 |
|
Housing Material |
|
PPO |
|
RoHS |
|
Yes |
|
Quantity |
(PCS) |
5000 |
|
Carton |
(CM) |
51.5*42*26 |
|
Gross Weight |
(Kg) |
6.58 |

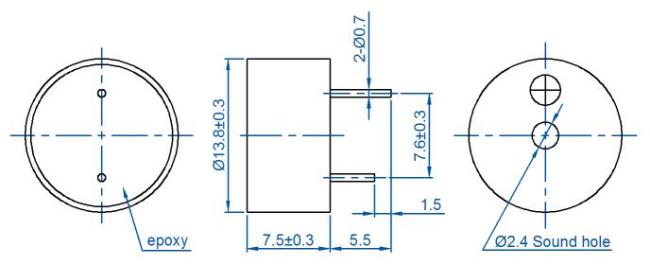

Electronic Alarm Buzzer Diameter:

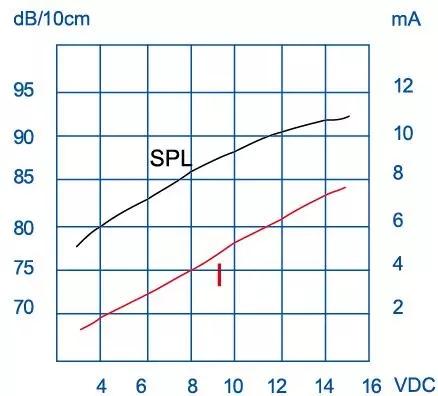

Electronic Alarm Buzzer Frenquency Curve:

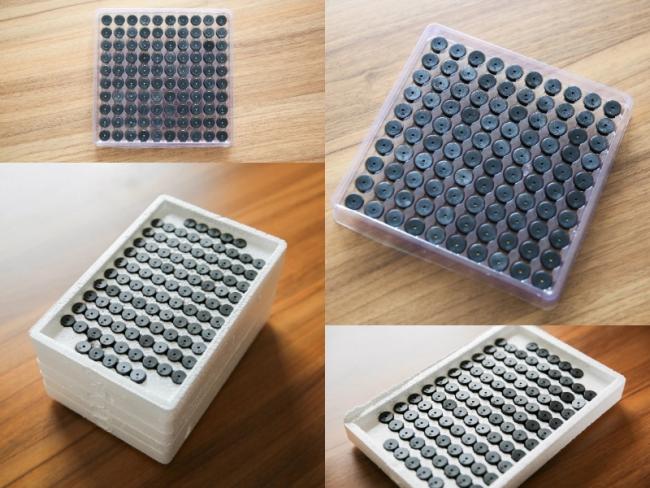

Electronic Alarm Buzzer Package:
Classification of buzzer :
1. According to the principle of its driving mode, it can be divided into: active buzzer (including driving circuit, also called self-excited buzzer) and passive buzzer (external drive, also called other excited buzzer) Sounder);
2. According to the different construction methods, it can be divided into: electromagnetic buzzer and piezoelectric buzzer;
3. According to the different packages, it can be divided into: DIP BUZZER (Pin Buzzer) and SMD BUZZER (SMD Buzzer);
4. According to the difference of current, it can be divided into: DC buzzer and AC buzzer. Among them, DC is the most common piezoelectric buzzer, which uses piezoelectric material, that is, when the external force causes the piezoelectric material to occur Piezoelectric materials generate electrical charges during deformation. Similarly, piezoelectric materials deform when energized.
The electromagnetic buzzer mainly uses the characteristics of the conductive conductor to generate a magnetic field, and uses a fixed permanent magnet and the conductive conductor to generate magnetic force to push the tympanic membrane fixed on the coil.
Due to the different sounding principles of the two buzzers, the piezoelectric structure is simple and durable but has a single tone and color difference. It is suitable for devices such as alarms. The electromagnetic type is mostly used for voice, music and other equipment because of its good timbre.
Electromagnetic buzzer Workshop
Electronic Alarm Buzzer Certifications
Transport for BUZZER
8. Piezo Siren FAQ
| 1. Q: When can we get the reply? |
| Any inquiries will be replied within 24 hours. |
| 2. Q: Can i have samples? |
| A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee. |
| 3. Q: What about minimum order quantity? |
| A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first. |
| 4. Q: What about delivery time? |
| A: We will send sample to you within 3 days. |
| Production for big quantity needs 20 to 25 days. And it also depends on product and quantity. |
| 5. Q: What about terms of payment? |
| A: Payment terms: T/T, west Union, Paypal and L/C etc. |
| 6. Q: How you will send the goods to us? |
| A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc. |
| 7. Q: Are you trading company or manufacturer ? |
| A: We are in China buzzer manufactory |
| 8. Q: Do you support OEM and ODM services? |
| A: Yes, surely support. we can customize products according to the drawing. |
| 9. Q: Can you provide driven circuit? |
| A: Yes, of course sure. |
| 10. Q: Can you solve technical problems for us? |
| A: Yes, Our Technical team will try our best to support you. |
