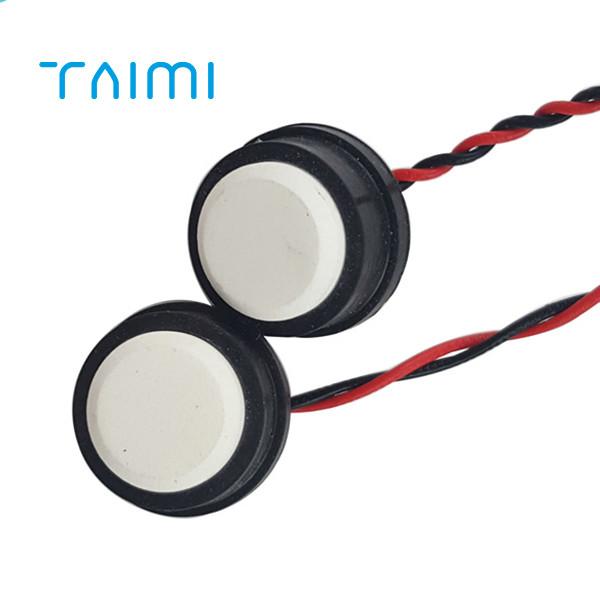

2MHz Narrow Beam Angle Ultrasonic Flow Transducer 1.0m For Liquids

Price Negotiable

Price: negotiable

MOQ: 1000PCS

Delivery Time: 10~20days

Brand: TAIMI

Product Description

Centre Working Frequency(kHz):	2.00MHZ±4%	Bandwidth (-6dB):	10%
Overall Sensitivity:	-25dB Min	Measure Range:	1.0m
Blind Zone:	3cm	Beam Angle:	3°
High Light:	ultrasonic flow rate sensor , high frequency ultrasonic sensor

2MHz high accuracy narrow bean angle Ultrasonic Flow Transducers for Liquids

The sensor is 2MHz ultrasonic flowmeters that measure liquid flow using ultrasonic transit-time and TransFlection methods. It is important to note that this installation guide provides information for the most common installations only. However, it can be used for equipment not specifically mentioned here. 2MHz ultrasonic can accommodate many special installations by using different transducers and configurations. For special installations, 2MHz ultrasonic will supply drawings with the nominal dimensions based on the specific application.

Model	TL2000KA
Centre working frequency (kHz)	2.00MHZ±4%
Bandwidth (-6dB)	10%
overall sensitivity 0 dB=3 Vp-p; cycle:5; distance:8cm (transmitter and receiver)	-25dB min
Distance measure range	1.0m
Blind zone	3cm
Beam angle(-3dBfull angle)	3°
electrostatic capacity	2300PF±20%
Minimal parallel impedance	100Ω±30%
Maxim operating voltage (Pulse Duty cycle ratio 2%)	＜200V
Operating temperature	4～70℃
The material of the housing	PPS
IP rate	IP68
