High Speed Transmission 10.2mm Hybrid Optical Fiber Cable , 8 Core Hybrid Power Cable
High Speed Transmission Hybrid Fiber Power Cable
Description

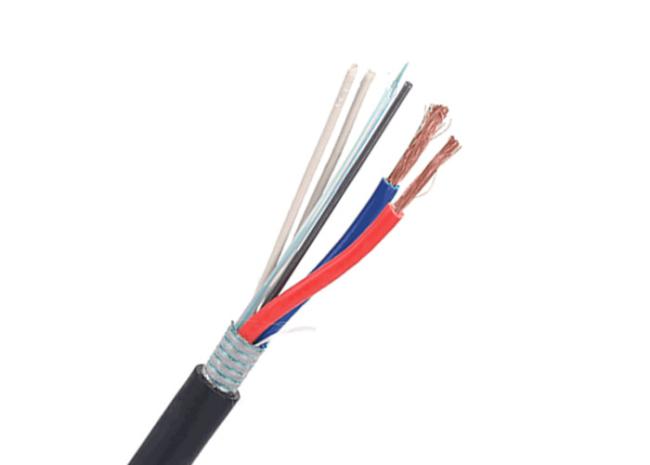

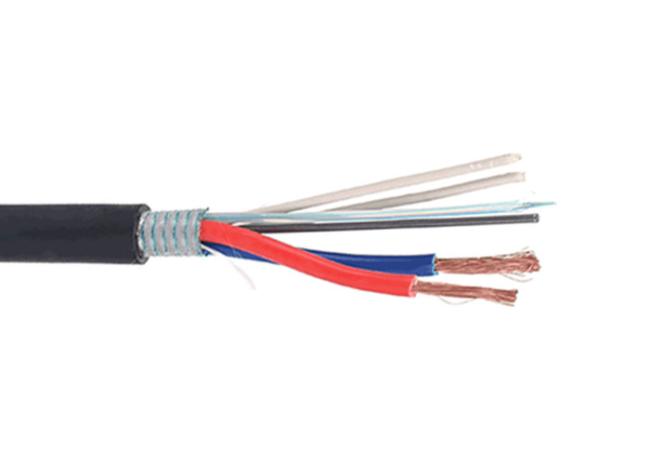

Sinohone Hybrid Fiber Power Optic Cable. In the GDTS cable, single-mode/multimode fibres are positioned in loose tubes, which are made of high modulus plastics and filled with water-blocking materials. Loose tubes and required insulated copper wires are stranded around the metallic central strength member into a compact and circular cable core. For certain high fibre count cables, the strength member would be covered with polythylene (PE). The PSP is longitudinally applied around the cable core, before a PE sheath is extruded over it.
Characteristics
- The composite cable provides the equipment electricity and signal transmission, and improves central monitoring and maintenance for equipment power
- To reduce the coordination and maintenance of power supply
- Excellent ultraviolet prevention with PE sheath
- The following measures are taken to ensure the water blocking performance of the cable
- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube
- 100% cable core filling
- PSP moisture barrier
Applications
- Duct
- Aerial
Cable Structure
| Type | Unit | Data |
| Optical Cable Core | 1(Tube) * 6(Fibers) | |
| Copper Conductor | 4 × 1.5mm2 | |
| Optical Fiber Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube Color | White | |
| Current Lead Color | Blue,Red,Black,Yellow | |
| Strength Member | Steel Wire | 2.0±0.1mm |
| Loose Tube | PBT Material | 2.5 ± 0.4 mm |
| Current Lead | Nominal Diameter | 2.85mm± 0.2 mm |
| Tube Protection material | Steel Tape | 0.2 ± 0.05 mm |
| Outer Jacket | MDPE | 1.6 ± 0.1 mm |
| Optical Cable nominal diameter | MM | 10.2 ± 0.5mm |
| Optical Cable net weight | Kg/KM | 270Kg ± 5% |
| Minimum Bend Radius | Dynamic | 20D /mm |
| Static | 10D / mm | |
| Tensile Strength | Long Term | 600N |
| Short Term | 1500N | |
| Permit Flattening Force | Long Term | 300N/10CM |
| Short Term | 1000N/10CM | |
| Maximum Dc Resistance | Simple(20℃) | 12.1Ω/KM |
| Insulation Resistance | Every | ≮10000 Ω/KM |
| Conform to；YD/T 901-2018, GB/T 3956-2008, GB/T 5023.3-2007 | ||
Optical Characteristics
| Optical Fiber Type | Attenuation Coefficient (+20℃) | |||
| @850nm | @1300nm | @1310nm | @1550nm | |
| G.652D | / | / | ≤0.36 dB/km | ≤0.22 dB/km |
| G.655C | / | / | ≤0.40 dB/km | ≤0.23 dB/km |
| 50/125μm | ≤3.0 dB/km | ≤1.0 dB/km | / | / |
| 62.5/125μm | ≤3.0 dB/km | ≤1.0 dB/km | / | / |
| Optical Fiber Type | OFL Bandwidth | |||
| @850nm | @1300nm | @850nm | ||
| G.652D | / | / | / | / |
| G.655C | / | / | / | / |
| 50/125μm | ≥500 MHz·km | ≥500 MHz·km | 0.200±0.015 NA | ≥500 MHz·km |
| 62.5/125μm | ≥200 MHz·km | ≥500 MHz·km | 0.275±0.015 NA | ≥200 MHz·km |
