Fireproof 3M Fiber Optic Patch Cord , Sc Apc Fiber Jumper
Price:
Negotiation
MOQ:
Support sample order
Delivery Time:
3-7 work days
Brand:
OEM
Product Description

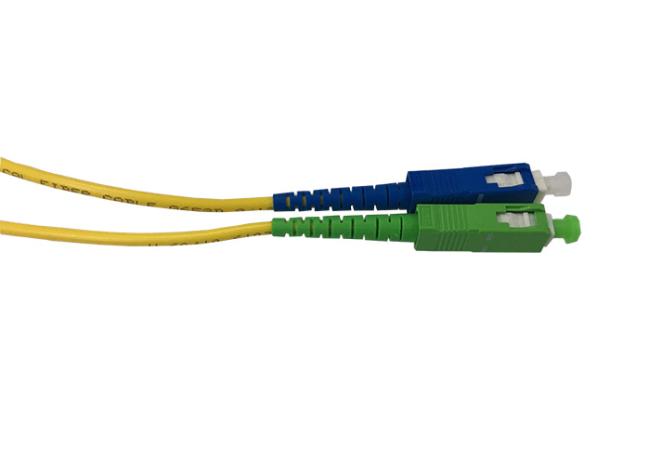

SC / UPC to SC / APC simplex 3.0mm fiber optic patch cord singlemode G652D LSZH
Specification
1. Operating & Storage Temperature
| Parameters | Min | Max | Unit | |
| 1 | Operating Temperature | -40 | 70 | °C |
| 2 | Storage Temperature | -40 | 70 | °C |
2. Optical Performance
| Item | SM | MM | ||
| 1310nm/1550nm IL(dB) | 1310nm/1550nm RL(dB) | 850nm IL(dB) | 850nm RL(dB) | |
| PC | <=0.20 | >=50 | <=0.30 | >=25 |
| APC | <=0.30 | >=60 | N/A | N/A |
3. Geometry Parameters
| UPC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 7.0mm | 25.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC | ||
| Item | Pass/Fail | |
| Parameters | Min | Max |
| ROC | 5.0mm | 12.00mm |
| Fiber Height | -100.0nm | 50.0nm |
| Apex Offset | 0.00μm | 50.00μm |
| APC Angle | 7.700deg | 8.300deg |
| Key Error | -0.500deg | 0.500deg |
4. Connector Detail
Features
◆LC, SC, ST, FC, MTRJ, E2000, MU connectors are available
◆OM1, OM2, OM3, OM4, OM5 and OS2 are available
◆Factory terminated and tested for insertion loss, return loss and end face
◆Good repeatability and interchangeability
◆Flame-retardant, rugged and durable jacket
Application
◆High-density connectors, SFP and SFP+ transceivers, XFP transceivers
◆Datacom and telecom; GPON; EPON; GBIC
◆Measurement equipment, single mode lasers
◆DWDM systems
◆LANs and telecommunication networks
Product Advantages
◆We passed many quality system vertification, like ISO, RoHS; and passed the Supplier Audition of the key account.
◆We have a high production capacity. Standard patch cord capacity is 15,000 connectors/day and MT product capacity is 3000 connectors/day.
◆Our testing standard is much rigorous. Every cable is tested individually in our production line as well as 100% tested by the QC department.
◆Our service is qualified. We insist on responsive and knowledgeable service to each customer.
ORC QC Process Flow Chat
FAQ
1. Q: How can you test a single mode jumper?
A: Our single mode patch cables have been tested for end-face inspection, singlemode IL and RL testing.
2. Q: Are these cables compatible with a variety of modules?
A: Yes, LC cables can be compatible with SFP, SFP+(BIDI SFP+), XFP, SC cables can be compatible with BIDI SFP, GBIC, X2 and XENPAK.
3. Q: What's your average lead time?
A: Our lead time is controlled within 5 working days for the regular products. For the MT products, our capacity is 3000 connectors per day.
4. Q: Can you produce according to the samples we send you?
A: Of course, we can produce according to your samples or technical drawings.
